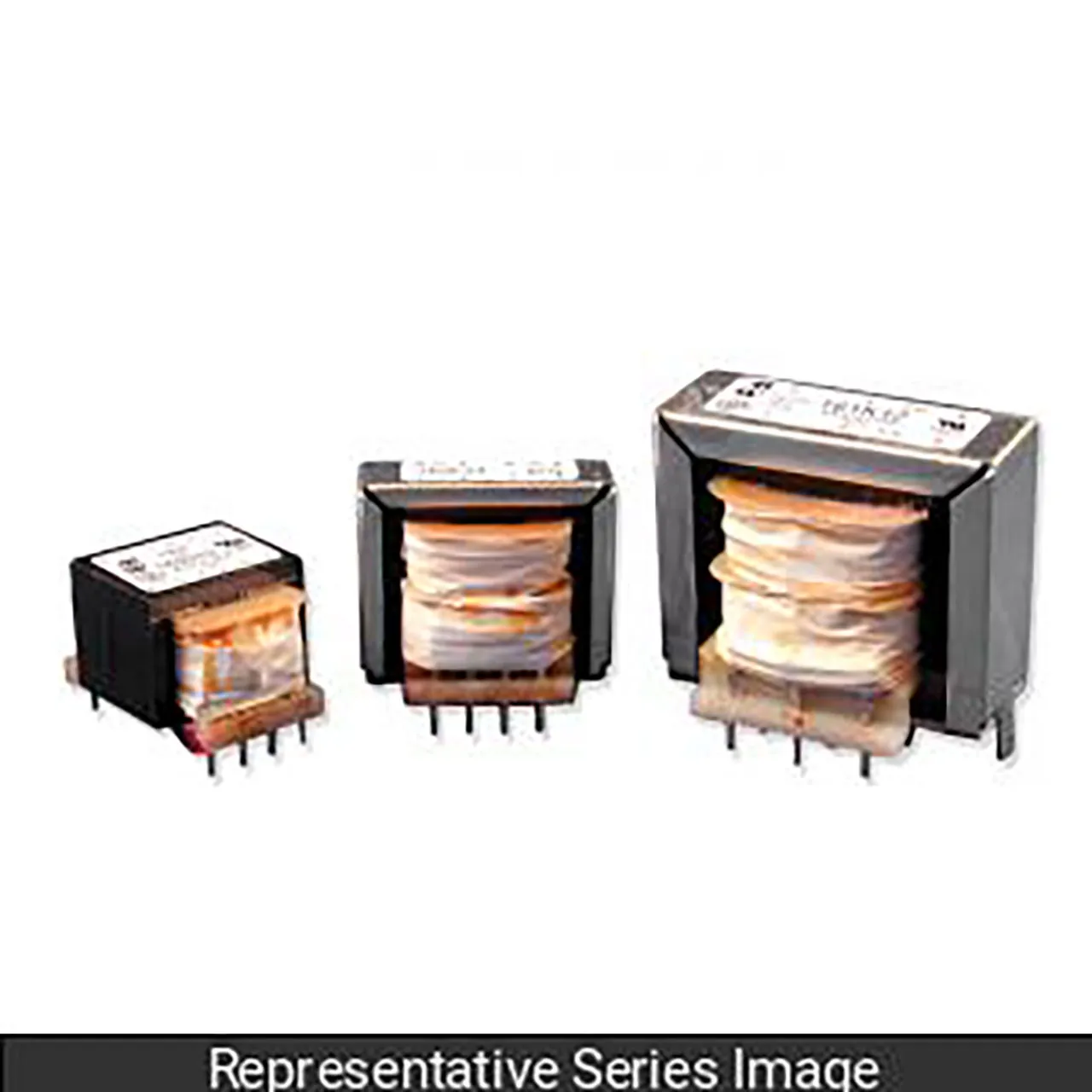

Transformer Low Voltage PCB Mount, 115/230V Primary, 1.2VA, 16V C.T @ 75Ma Sec

Features

  • Material: N/A
  • Standards: csa, ru
  • Power Rating (VA): 1.2
  • Secondary (RMS) Series: 16V C.T. @ 75ma
  • Secondary (RMS) Parallel: 8V @ 150ma
  • USMCA Compliant: No
  • RoHS Compliant: Yes
  • REACH Compliant: Yes
  • ECCN: EAR99

Overview

Transformer, low voltage PCB mount, 115/230V primary, 1.2VA, 16V C.T. @ 75ma sec.

Resources & Downloads

    Product Identification

    Manufacturer Series:160-161

    Features

    Primary Side Voltage:115 VAC, 230 VAC
    Power Rating:1.2 VA
    Secondary Side Voltage:16 VCT @ 75mA (Series), 8V @ 150mA (Parallel)
    ,
