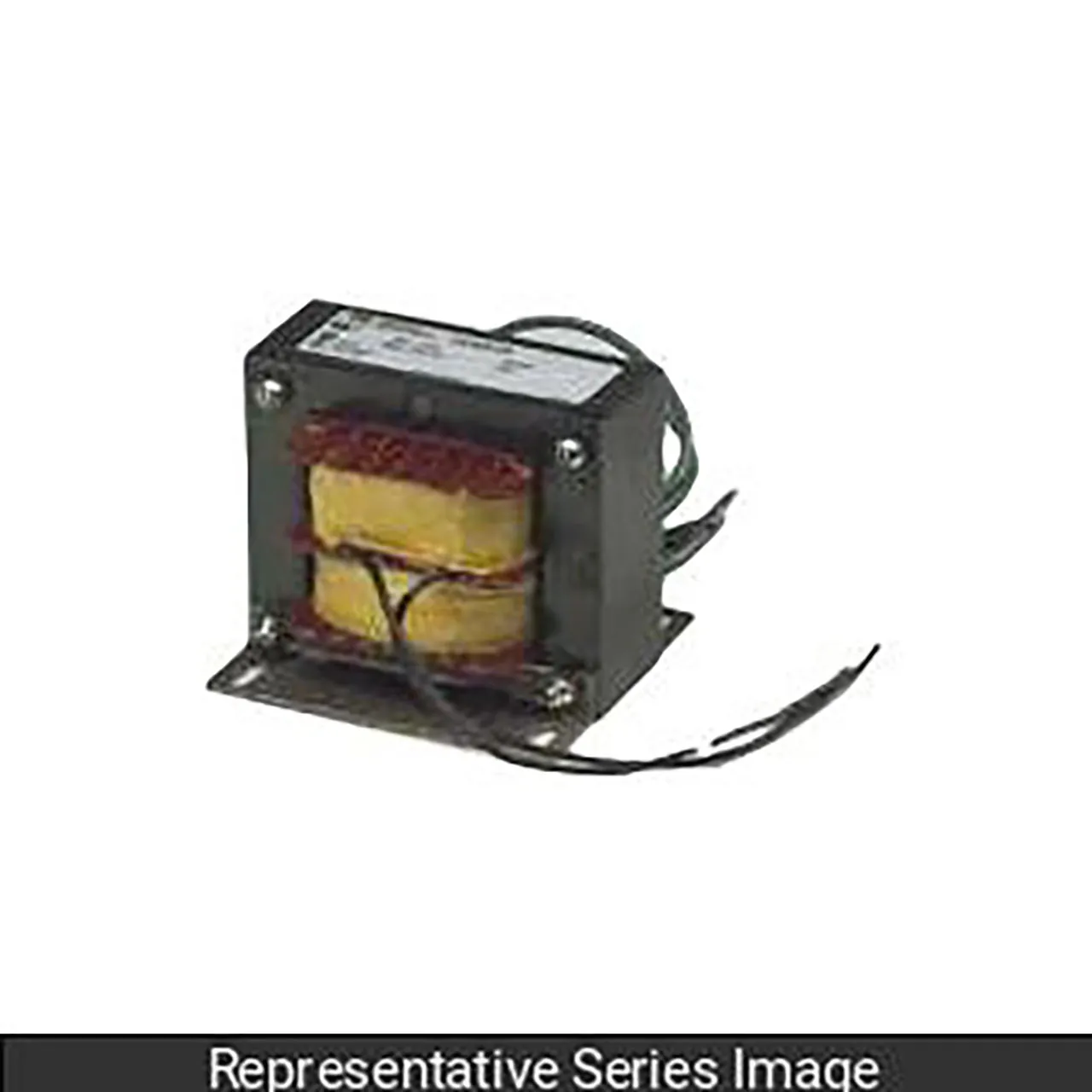

Transformer Low Voltage, High Current, Chassis Mount, 250VA, 25.0Vct, 10A

Features

  • Material: N/A
  • Standards: csa, ul
  • Power Rating (VA): 250
  • Secondary (RMS) Volts: 25.0 C.T.
  • Secondary (RMS) Amps: 10
  • USMCA Compliant: No
  • RoHS Compliant: Yes
  • REACH Compliant: Yes
  • ECCN: EAR99

Overview

Transformer, low voltage, high current, chassis mount, 250VA, 25.0VCT, 10A.

Resources & Downloads

    Product Identification

    Manufacturer Series:165

    Features

    Primary Side Voltage:115 VAC
    Secondary Side Voltage:25.0 C.T. (Series), 10 (Parallel)
    Power Rating:250 VA
    ,
