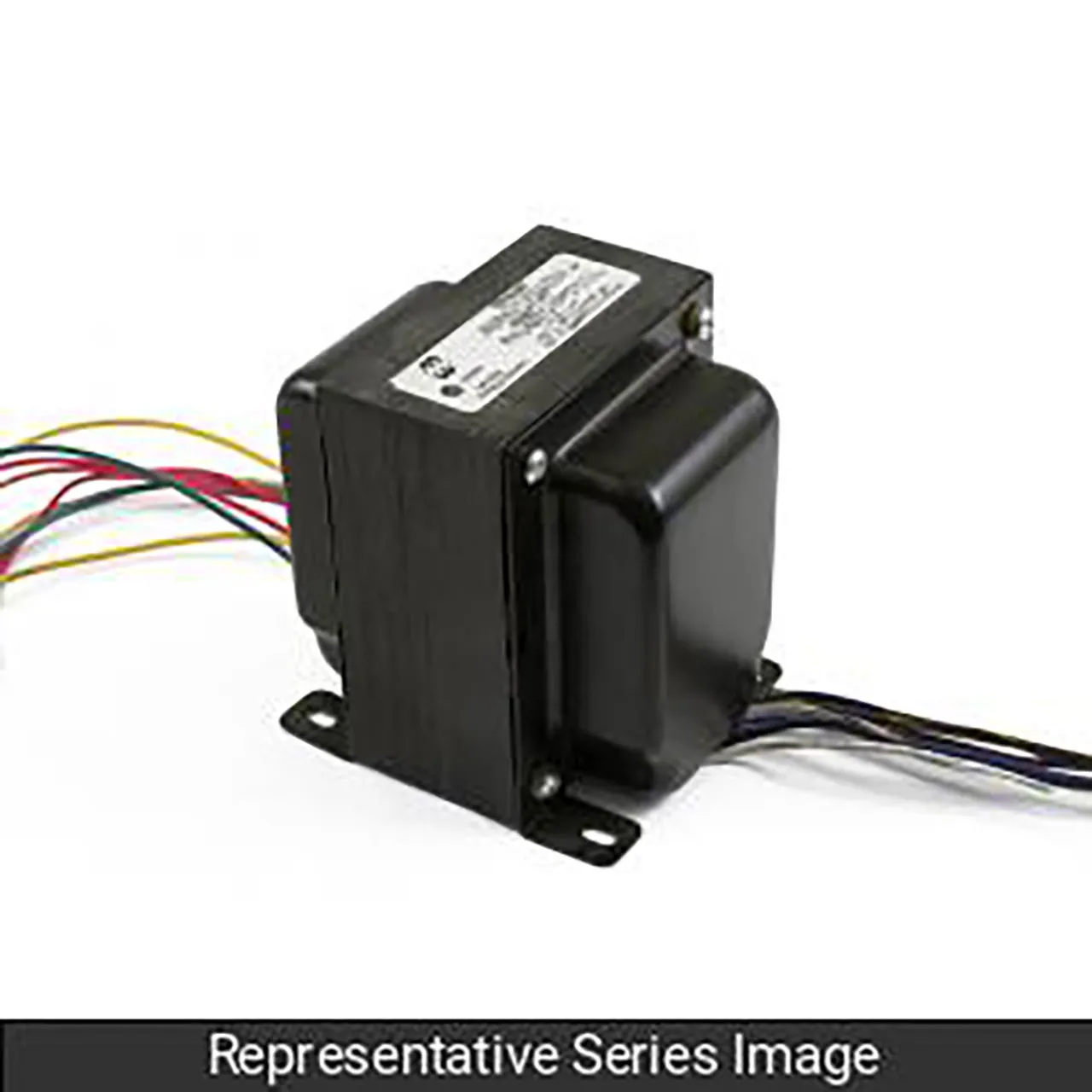

Transformer High Voltage, 138VA, Primary 115Vac, Hv Secondary 750V C.T @ 126Ma.

Features

• Material: N/A
• Standards: csa
• Power Rating (VA): 138
• Primary VAC: 115
• Primary Frequency: 60
• A.C. High Voltage Secondary RMS: 750V C.T. @ 126ma.
• Filament # 1 VAC: 5V @ 3A
• Filament # 2 VAC: 6.3V C.T. @ 5A
• Mounting Type: Vertical ("X")
• USMCA Compliant: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes
• ECCN: EAR99

Overview

Transformer, high voltage, 138VA, primary 115VAC, HV secondary 750V C.T. @ 126ma..

Resources & Downloads

• CAD PDF
