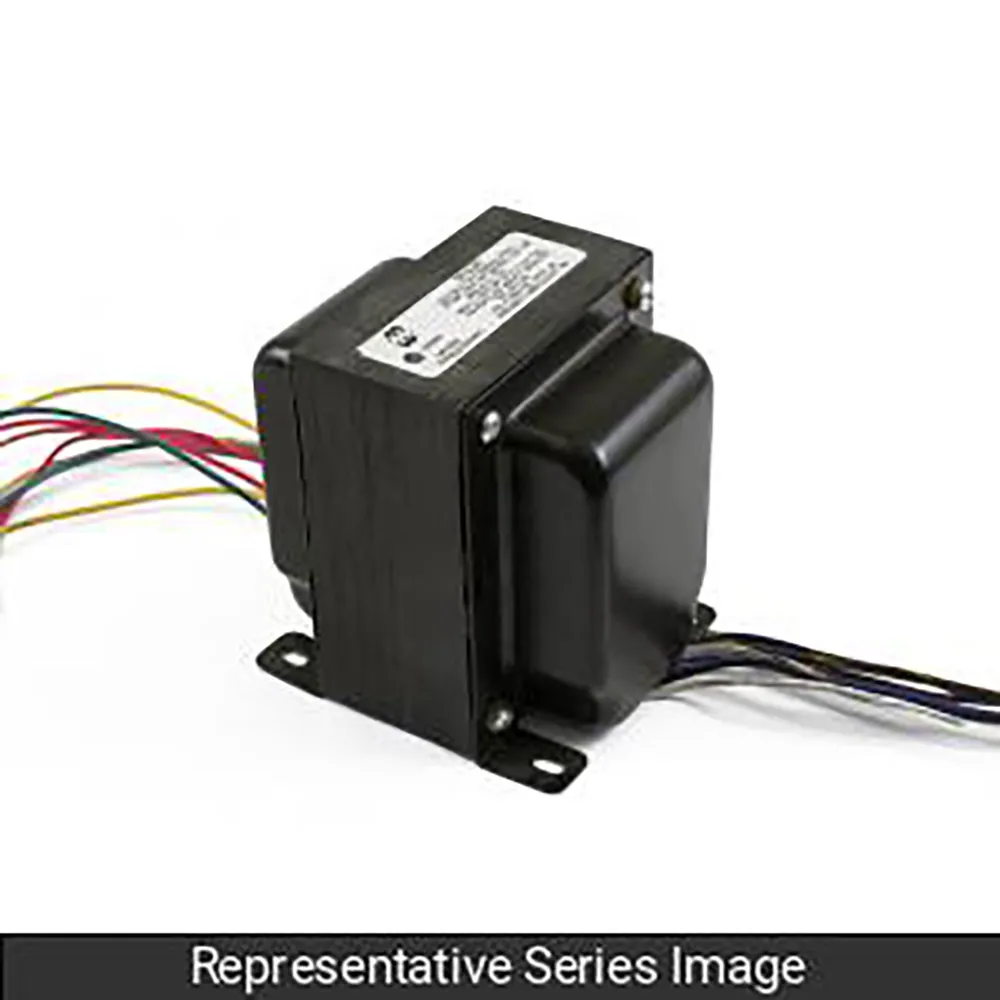

Transformer High Voltage & Filament 76VA 520V C.T @ 104mA 300 Series 50V Bias 6.3Vct 3.5A Z-Mount

Features

• Material: N/A
• Standards: csa
• Power Rating (VA): 76
• Primary VAC: Universal - 100, 110, 120, 200, 220,230, 240 VAC 50/60 Hz
• A.C. High Voltage Secondary RMS: 520V C.T. @ 104ma.
• Bias Tap on High Voltage Secondary w/ C.T. Grounded (VAC): 50
• Filament #1 (VAC): 6.3V C.T. @ 3.5A
• Mounting Style: Horizontal ("Z")
• USMCA Compliant: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes
• ECCN: EAR99

Overview

Transformer, high voltage & filament, 76VA, 520V C.T. @ 104ma., 300 Series.

Resources & Downloads

• CAD PDF
