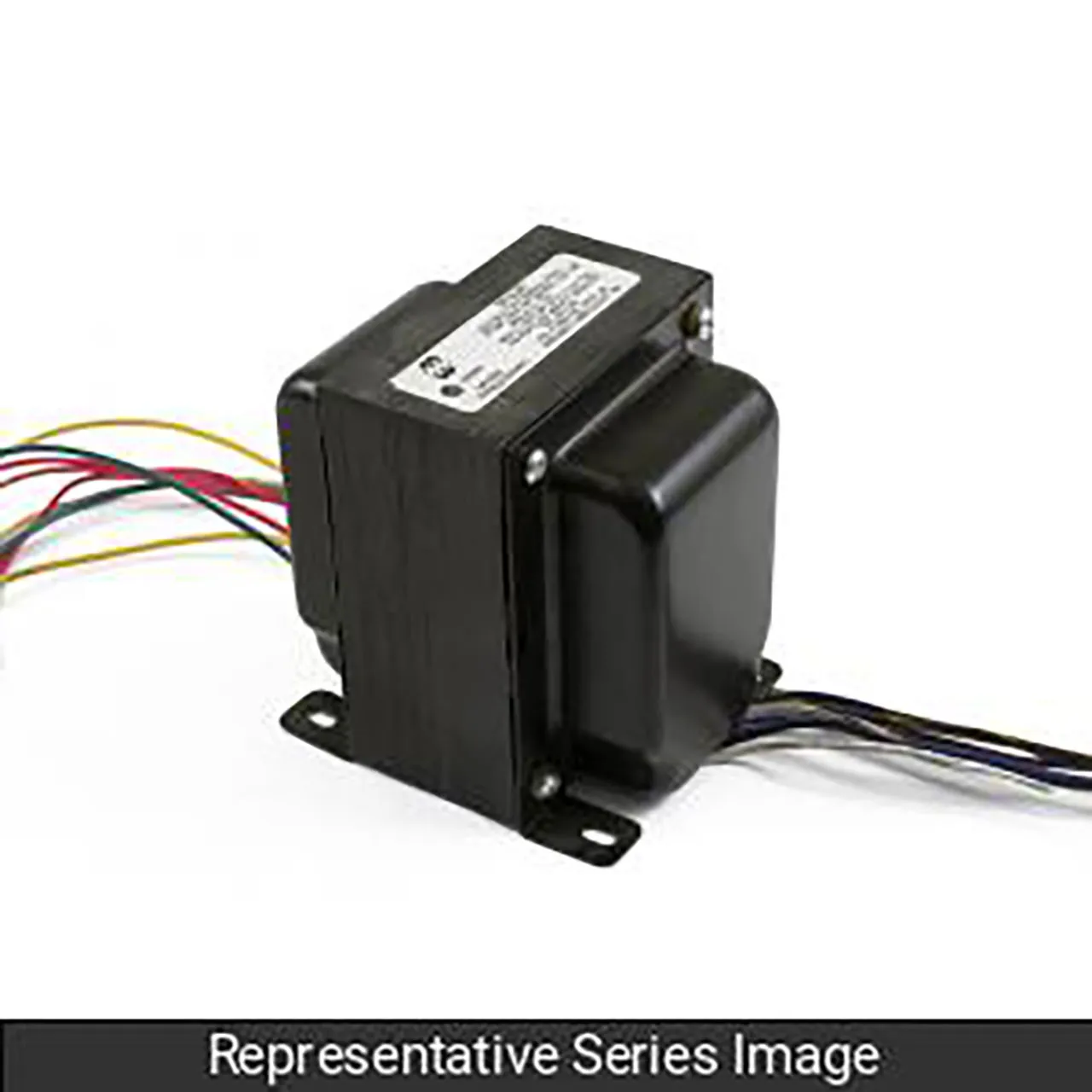

Transformer High Voltage & Filament, 340VA, 550V C.T @ 460Ma., 300 Series

Features

• Material: N/A
• Standards: csa
• Power Rating (VA): 340
• Primary VAC: Universal - 100, 110, 120, 200, 220,230, 240 VAC 50/60 Hz
• A.C. High Voltage Secondary RMS: 550V C.T. @ 460ma.
• Bias Tap on High Voltage Secondary w/ C.T. Grounded (VAC): 50
• Filament #1 (VAC): 5V C.T. @ 6A
• Filament #2 (VAC): 6.3V C.T. @ 9A
• Mounting Style: Vertical ("X")
• USMCA Compliant: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes
• ECCN: EAR99

Overview

Transformer, high voltage & filament, 340VA, 550V C.T. @ 460ma., 300 Series.
