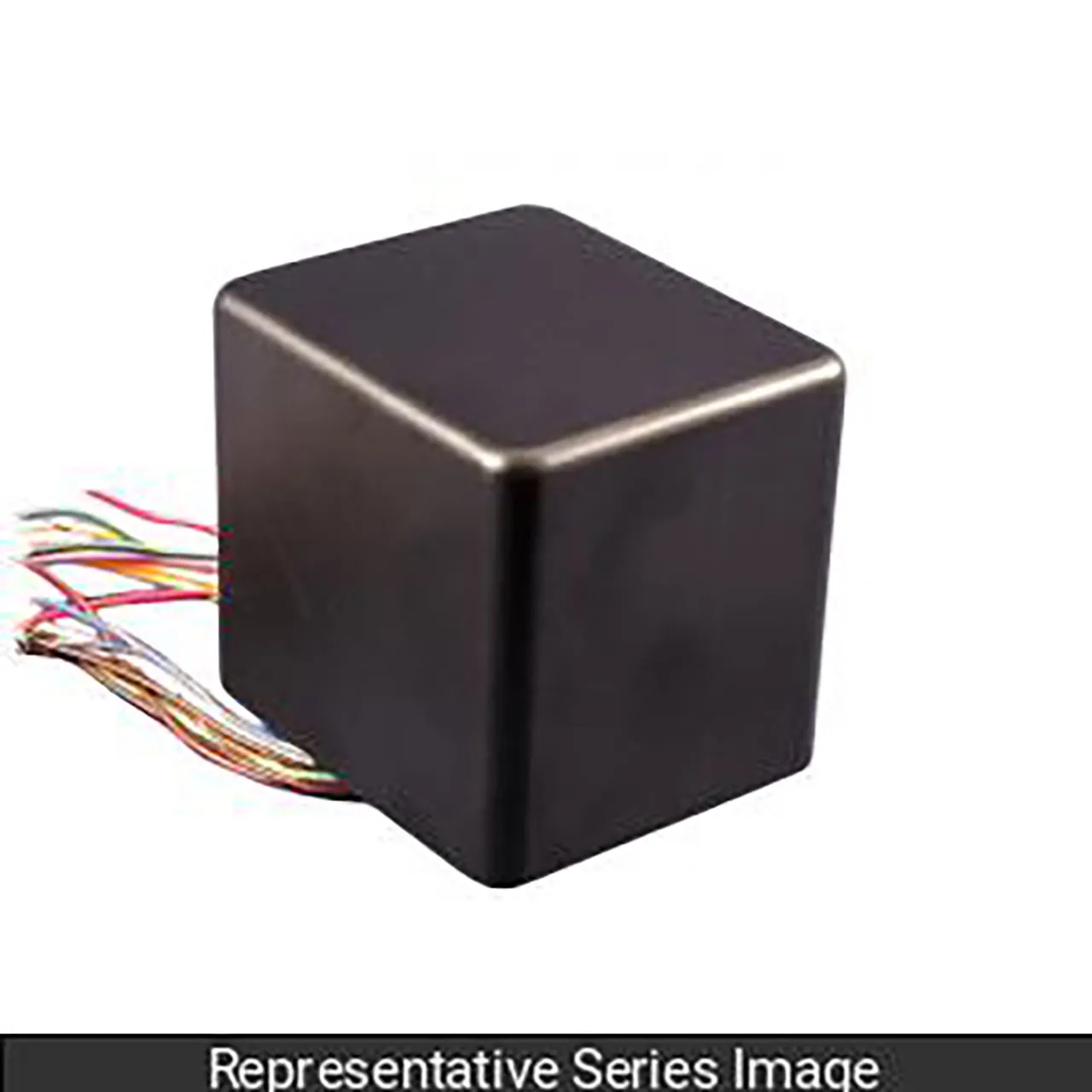

Transformer High Voltage & Filament, 157VA, 640V C.T @ 173Ma., 300P Series

Features

• Material: N/A
• Standards: cruus
• Power Rating (VA): 157
• Primary VAC: Universal - 100, 110, 120, 200, 220,230, 240 VAC 50/60 Hz
• A.C. High Voltage Secondary RMS: 640V C.T. @ 173ma.
• Bias Tap on High Voltage Secondary w/ C.T. Grounded (VAC): 50
• Filament #1 (VAC): 5V C.T. @ 3A
• Filament #2 (VAC): 6.3V C.T. @ 5A
• USMCA Compliant: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes
• ECCN: EAR99

Overview

Transformer, high voltage & filament, 157VA, 640V C.T. @ 173ma., 300P Series.
