Bipolar (BJT) Transistor PNP 300 V 500 mA 50MHz 1.5 W Surface Mount SOT-223

Features

• Transistor Type: PNP
• Current - Collector (Ic) (Max): 500 mA
• Voltage - Collector Emitter Breakdown (Max): 300 V
• Vce Saturation (Max) @ Ib, Ic: 500 mV @ 2 mA, 20 mA
• Current - Collector Cutoff (Max): 250 nA (ICBO)
• DC Current Gain (hFE) (Min) @ Ic, Vce: 40 @ 30 mA, 10 V
• Power - Max: 1.5 W
• Frequency - Transition: 50 MHz
• Operating Temperature: 150°C (TJ)
• Mounting Type: Surface Mount

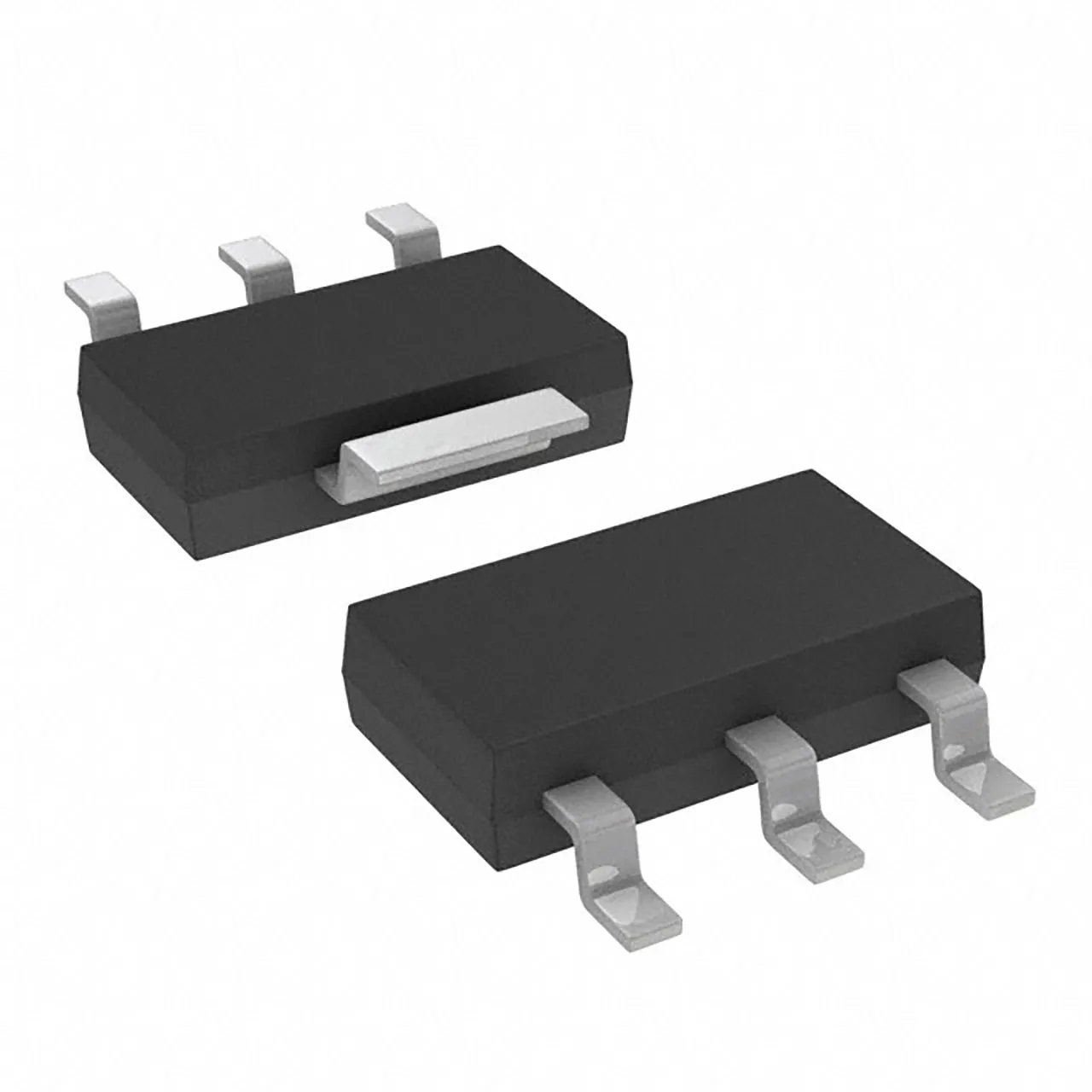

• Package: TO-261-4, TO-261AA, SOT-223 (TO-261)
