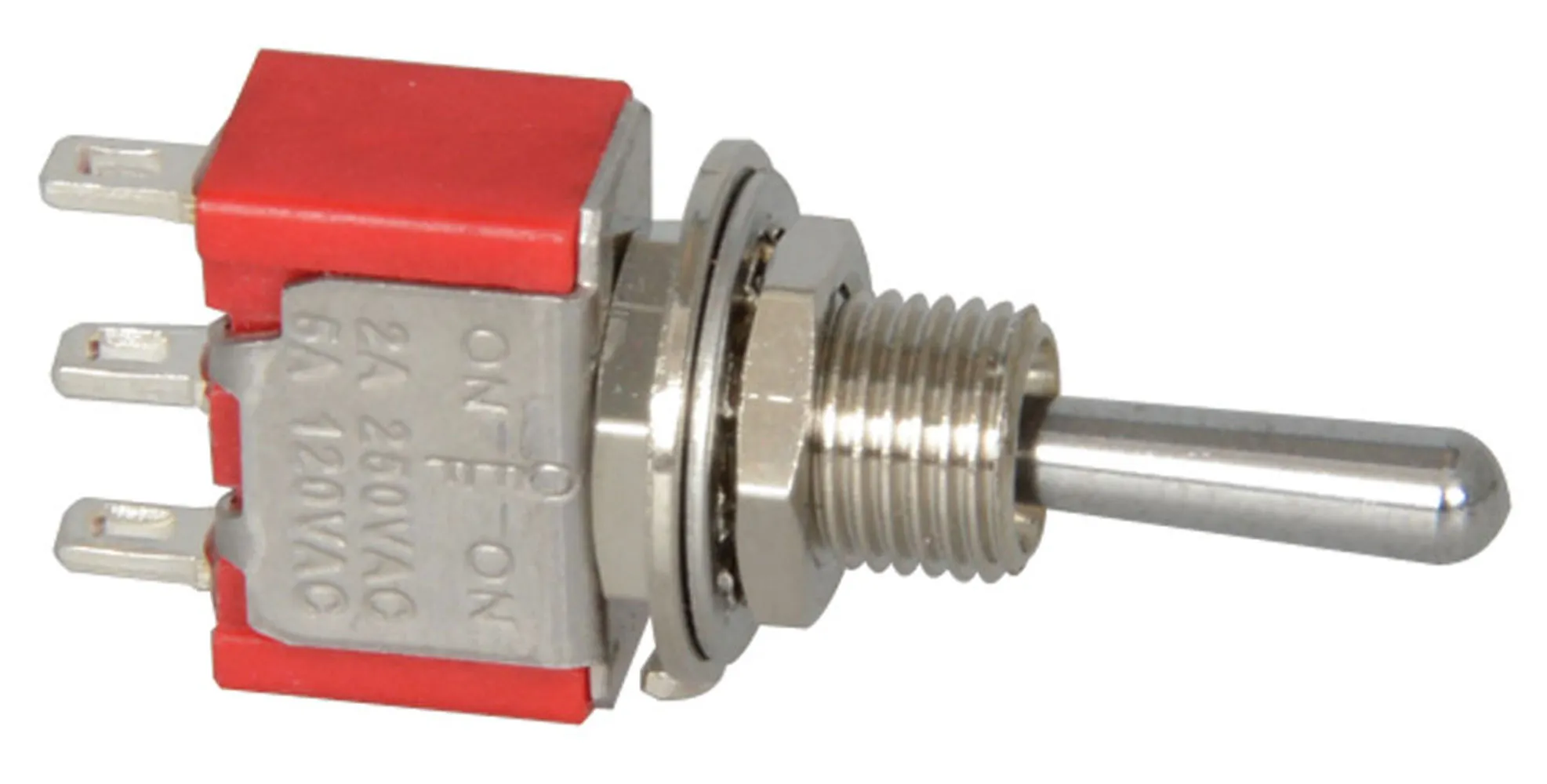

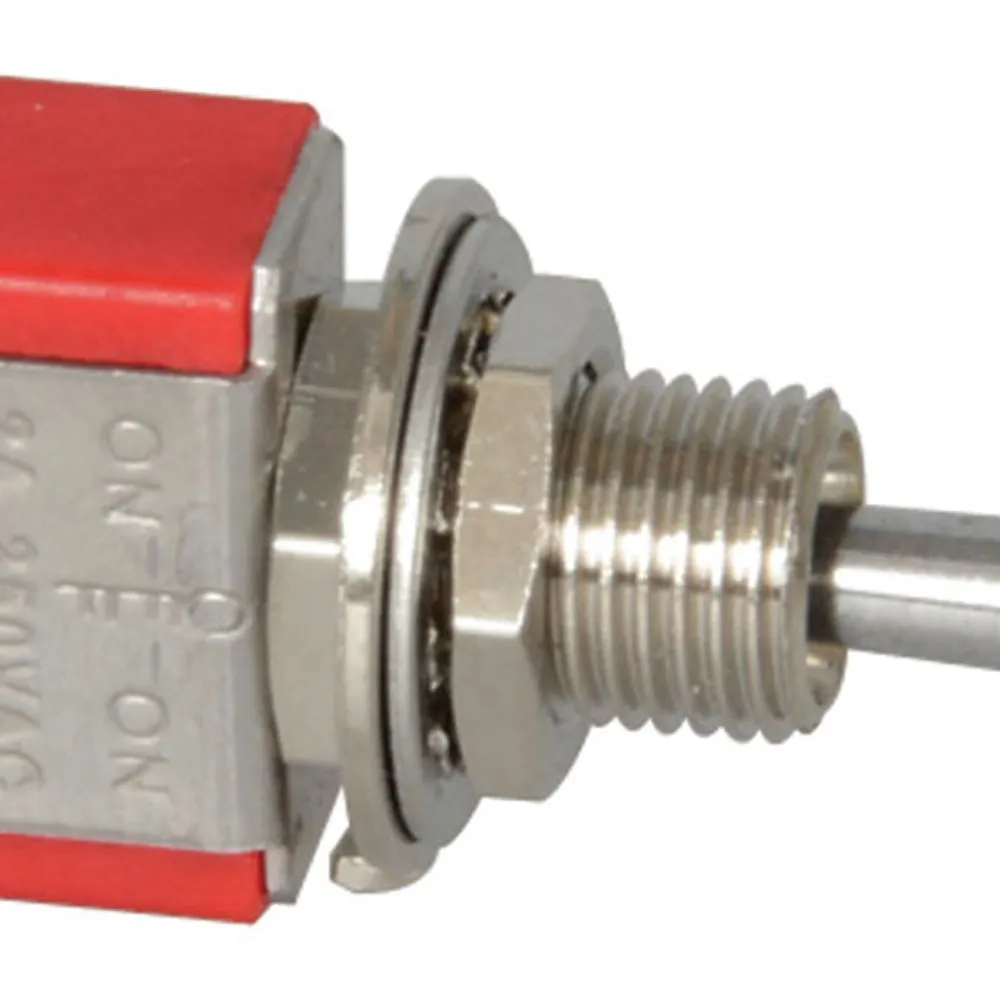

SPDT ON-OFF-ON Miniature Toggle Switch Bat Lever

Specifications

  • Contact Form: SPDT
  • Switch Function: ON-OFF-ON
  • Mounting hole diameter: 1/4"
  • Mounting hardware included
  • Pins: 3
  • Dimensions: .51"L x .28"W x .36"D
  • Lead Spacing: .185
  • Contact Rating: 5A@120VAC & 2A@250 VAC
  • Lead Type: Solder lugs
  • Lever Type: Round bat

Product Identification

Additional Feature:Keyway

Dimensions & Appearance

Body Orientation:Straight
Mounting Style:Panel, Rear
Depth:0.35 in.
Height:0.35 in.
Width:0.27 in.
Length:0.5 in.
Body Color:Red
Mounting Hole:0.25 in.

Features

Seal Description:Epoxy
Bushing Type:Threaded
Pins:3
Number of Positions:3
Mechanical Life:40000
Lead Spacing B (inch):0.185
Seal Location:Terminals
Thread Size:1/4-40
Switch Function:ON-OFF-ON
Color - Actuator/Cap:Chrome
Contact Form:SPDT
Actuator Length:0.41 in.
Termination Style:Solder Lug
Contact Rating:5A @ 120VAC, 2A @ 250VAC
Actuator Type:Round
Voltage Rating:120 VAC, 28 VDC
Current Rating:5 A
,
