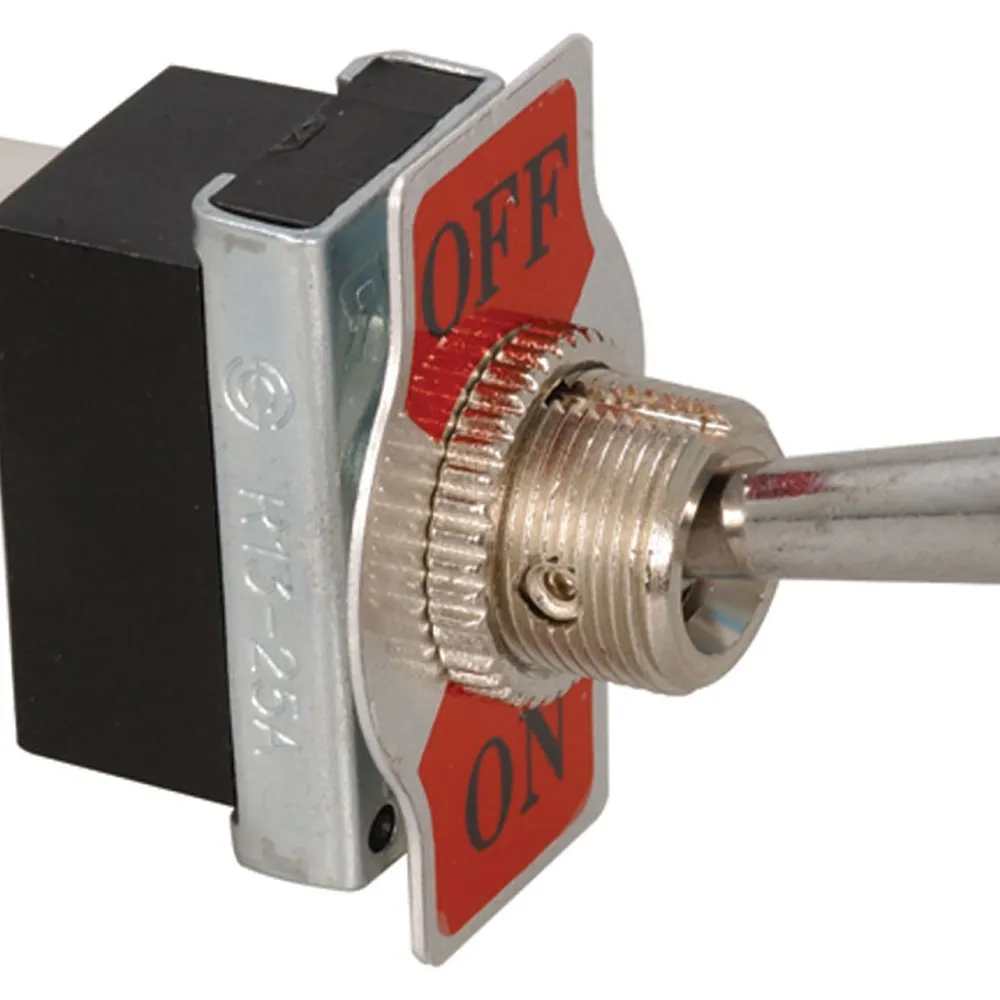

Standard Toggle Switch
Features:
- Contact form: SPST OFF-ON
- Contact rating: 10A @ 125VAC / 6A @ 250VAC
- Dimensions: 1.14"L x 0.59"W x 0.62"D
- Number of pins: 2
- 0.250" quick connect terminals
- Metal lever
- Mounting hole diameter: 0.5"
Product Identification
Additional Feature:Keyway, Legend Plate
Dimensions & Appearance
Body Color:Black
Body Orientation:Straight
Mounting Style:Panel, Rear
Depth:0.62 in.
Mounting Hole:0.5 in.
Height:0.5 in.
Width:0.60 in.
Length:1.15 in.
Features
Actuator Material:Brass
Pins:2
Bushing Type:Threaded
Number of Positions:2
Mechanical Life:40000
Maximum Contact Resistance:10mOhm
Minimum Insulation Resistance:1000MOhm
Dielectric Strength:1000Vrms
Termination Style:Quick Connect - 0.250" (6.3mm)
Switch Function:ON-OFF
Contact Plating:Silver, Gold
Color - Actuator/Cap:Chrome w/ Legend Plate
Housing Material:Stainless Steel
Thread Size:M12x0.75
Contact Form:SPST
Actuator Length:0.71 in.
Actuator Type:Round
Contact Rating:10A @ 125VAC, 6A @ 250VAC
Voltage Rating:125 VAC
Current Rating:10 A
