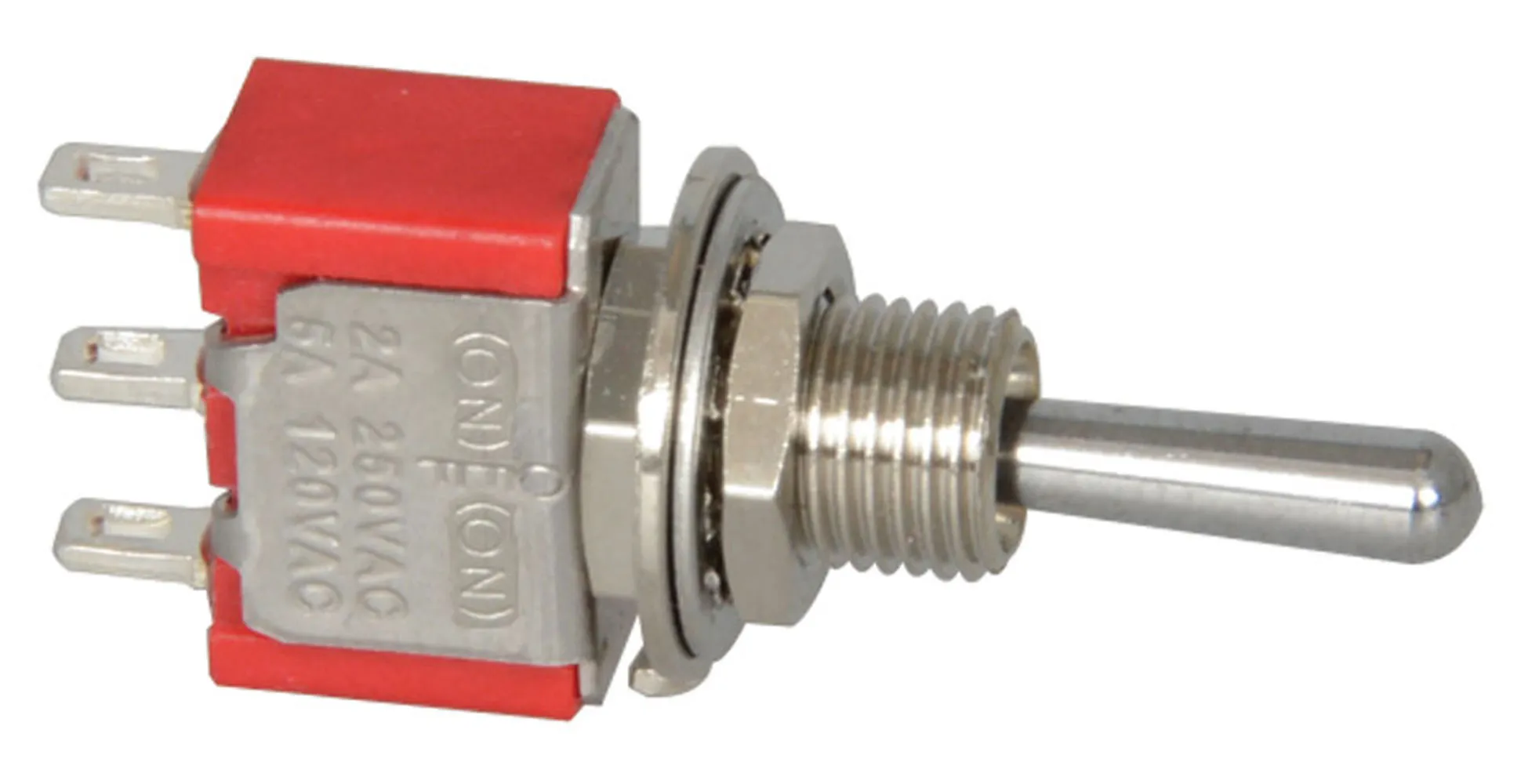

Miniature Toggle Switch SPDT (ON)-OFF-(ON)
Features
- Contact form: SPDT
- Switch Function: (ON)-OFF-(ON)
- Contact rating: 5A @ 120VAC / 2A @ 250VAC
- Dimensions: 0.50"L x 0.27"W x 0.35"D
- Number of pins: 3
- Solder lug terminals
- Round lever
- Mounting hole diameter: 0.25"
- Includes mounting hardware
Product Identification
Additional Feature:Keyway
Compliance
RoHS Status:ROHS Compliant
Dimensions & Appearance
Body Color:Red
Body Orientation:Straight
Mounting Style:Panel, Rear
Depth:0.35 in.
Mounting Hole:0.25 in.
Height:0.35 in.
Width:0.27 in.
Length:0.5 in.
Features
Seal Description:Epoxy
Bushing Type:Threaded
Pins:3
Number of Positions:3
Mechanical Life:40000
Switch Function:(ON)-OFF-(ON)
Lead Spacing B (inch):0.185
Seal Location:Terminals
Thread Size:1/4-40
Color - Actuator/Cap:Chrome
Contact Form:SPDT
Actuator Length:0.41 in.
Termination Style:Solder Lug
Contact Rating:5A @ 120VAC, 2A @ 250VAC
Actuator Type:Round
Voltage Rating:120 VAC, 28 VDC
Current Rating:5 A
