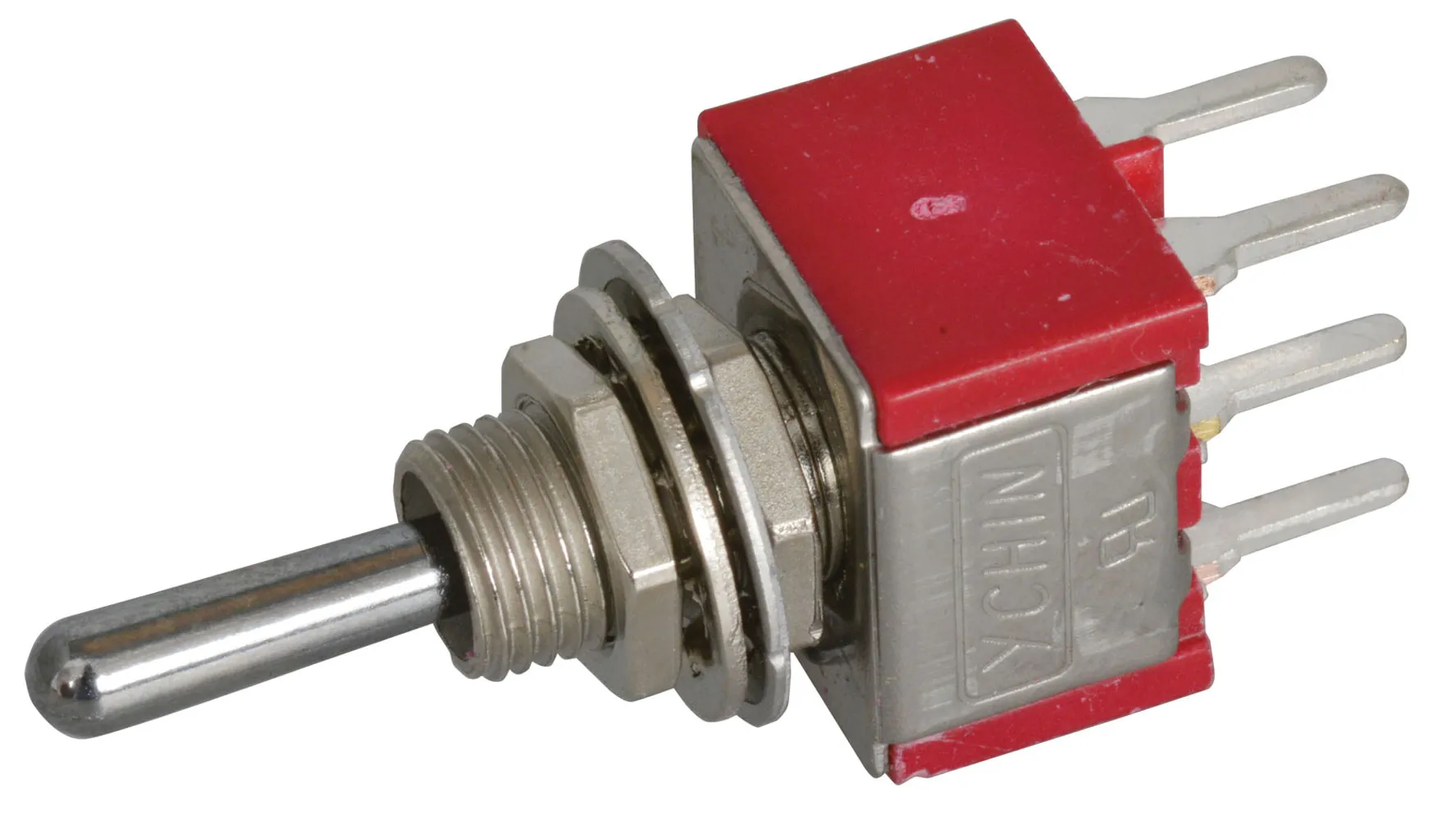

Miniature Toggle Switch

Features:

  • Contact form: DPDT ON-OFF-ON
  • Contact rating: 5A @ 120VAC / 2A @ 250VAC
  • Dimensions: 0.50"L x 0.52"W x 0.38"D
  • Number of pins: 6
  • PC straight terminals
  • Round lever
  • Mounting hole diameter: 0.25"
  • Includes mounting hardware

    • Product Identification

    Additional Feature:Keyway

    Compliance

    RoHS Status:ROHS Compliant

    Dimensions & Appearance

    Body Color:Red
    Body Orientation:Straight
    Mounting Style:Panel, Rear
    Depth:0.35 in.
    Mounting Hole:0.25 in.
    Height:0.35 in.
    Length:0.5 in.
    Width:0.45 in.

    Features

    Seal Description:Epoxy
    Bushing Type:Threaded
    Number of Positions:3
    Pins:6
    Lead Spacing B (inch):0.185
    Actuator Length:0.039 in.
    Seal Location:Terminals
    Lead Spacing A (inch):0.19
    Electrical Life:6000 Cycles
    Thread Size:1/4-40
    Power Rating:0.4 VA
    Switch Function:ON-OFF-ON
    Color - Actuator/Cap:Chrome
    Contact Form:DPDT
    Termination Style:PC Pins
    Contact Rating:5A @ 120VAC, 3A @ 250VAC
    Actuator Type:Round
    Voltage Rating:120 VAC, 28 VDC
    Current Rating:5 A
    ,
