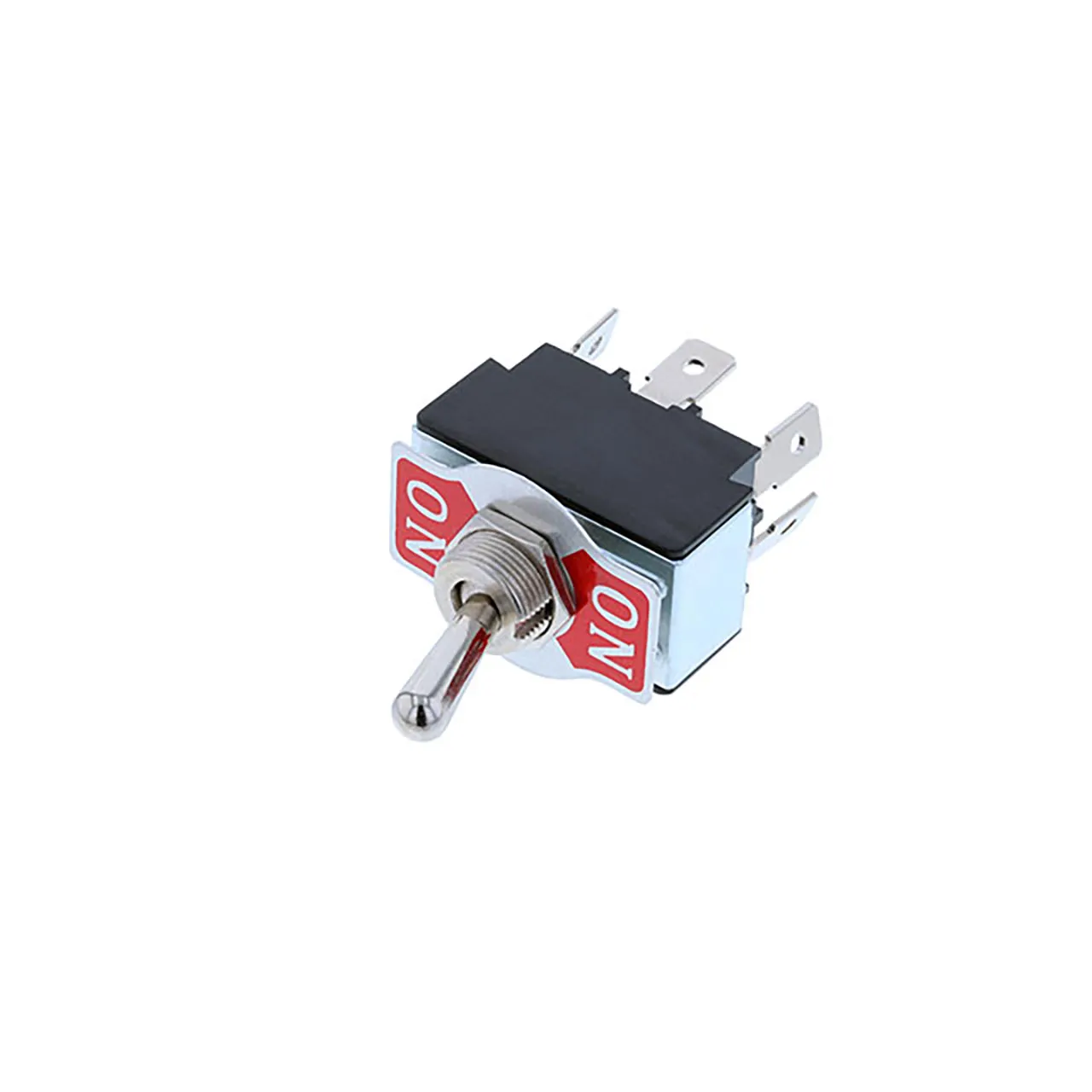

Toggle - 6P DPDT ON-ON-(ON) Tab

Features

  • Product Type: Toggle Switch
  • Harmonized Code: 8536.50.4000
  • ECCN: EAR99

Overview

Toggle - 6P DPDT ON-ON-(ON), Tab.

Dimensions & Appearance

Mounting Style:Panel Mount, Rear
Body Color:Black
Mounting Hole:Circular - 12.20mm Dia
Body Orientation:Straight

Features

Bushing Type:Threaded
Number of Positions:3
Minimum Insulation Resistance:100 MOhm
Pins:6
Maximum Contact Resistance:50 mOhm
Termination Style:Quick Connect - 0.250" (6.3mm)
Dielectric Strength:1500VAC
Switch Function:ON-ON-(ON)
Color - Actuator/Cap:Chrome
Voltage Rating:12 VDC
Contact Form:DPDT
Thread Size:M12 x 0.75
Actuator Length:18.40 mm
Actuator Type:Standard Round
Contact Rating:20A @ 12VDC, 10A @ 24VDC
Current Rating:20A (DC)
,
