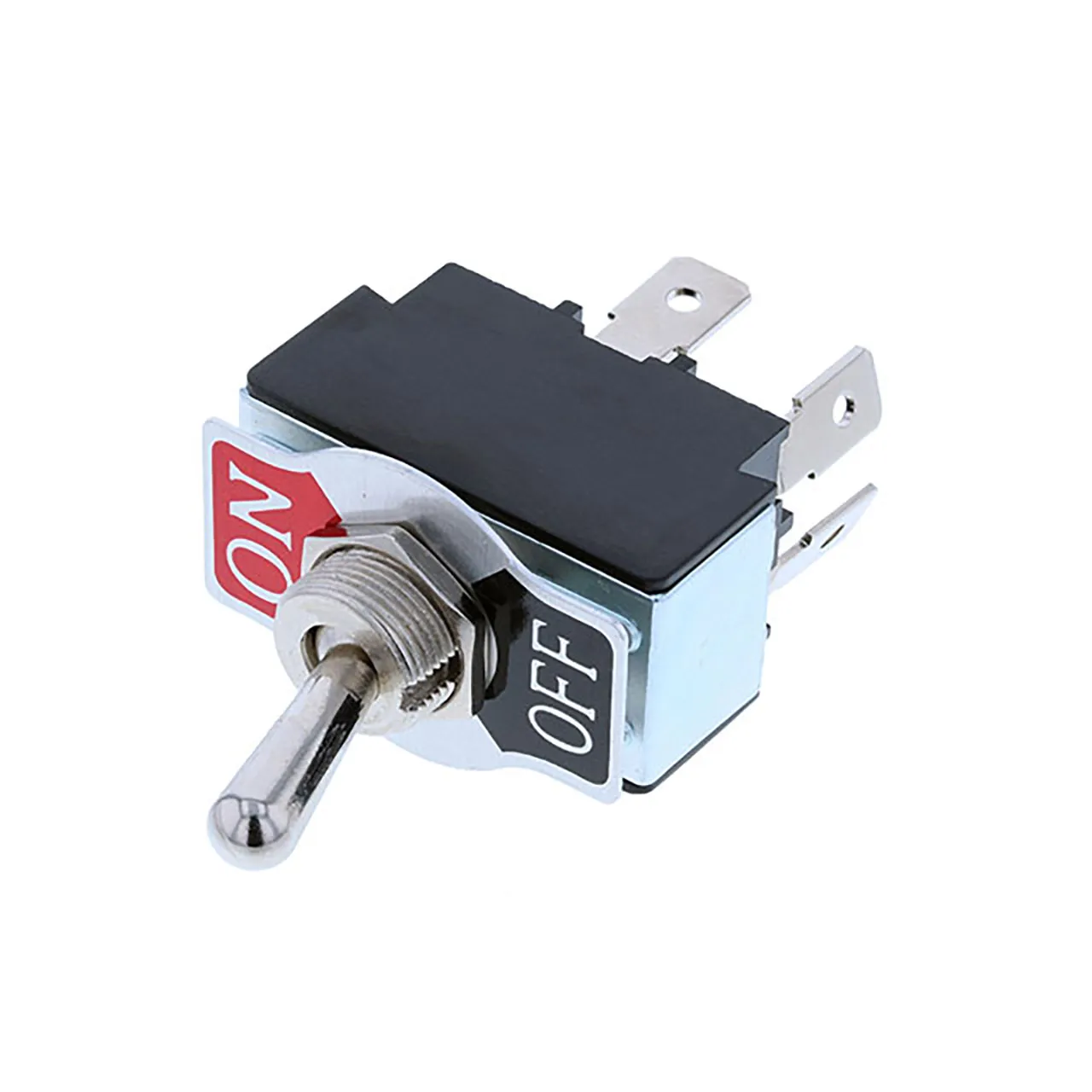

Toggle - 4P DPST OFF-ON Tab Chrome Bat Actuator with ON OFF Label

Features

  • Series: TB2
  • Mounting Type: Panel Mount
  • Circuit: DPST
  • Switch Function: On-Off
  • Current Rating (Amps): 20A (DC)
  • Voltage Rating - DC: 12 V
  • Actuator Type: Standard Round
  • Actuator Length: 17.70 mm
  • Illumination: Non-Illuminated
  • Termination Style: Quick Connect - 0.250" (6.3mm)
  • Panel Cutout Dimensions: Circular - 12.20mm Dia
  • Bushing Thread: M12 x 0.75
  • Operating Temperature: 0°C to 55°C
  • Product Type: Toggle Switch
  • Harmonized Code: 8536.50.4000
  • ECCN: EAR99
  • 360 Animation Download (.zip)

Overview

Toggle - 4P DPST OFF-ON, Tab.

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Body Color:Black
Body Orientation:Straight
Mounting Style:Panel Mount, Rear
Mounting Hole:Circular - 12.20mm Dia

Features

Bushing Type:Threaded
Number of Positions:2
Minimum Insulation Resistance:100 MOhm
Pins:4
Maximum Contact Resistance:50 mOhm
Termination Style:Quick Connect - 0.250" (6.3mm)
Dielectric Strength:1500VAC
Switch Function:ON-OFF
Color - Actuator/Cap:Chrome
Voltage Rating:12 VDC
Thread Size:M12 x 0.75
Contact Form:DPST
Actuator Length:17.70 mm
Actuator Type:Standard Round
Contact Rating:20A @ 12VDC, 10A @ 24VDC
Current Rating:20A (DC)
,
