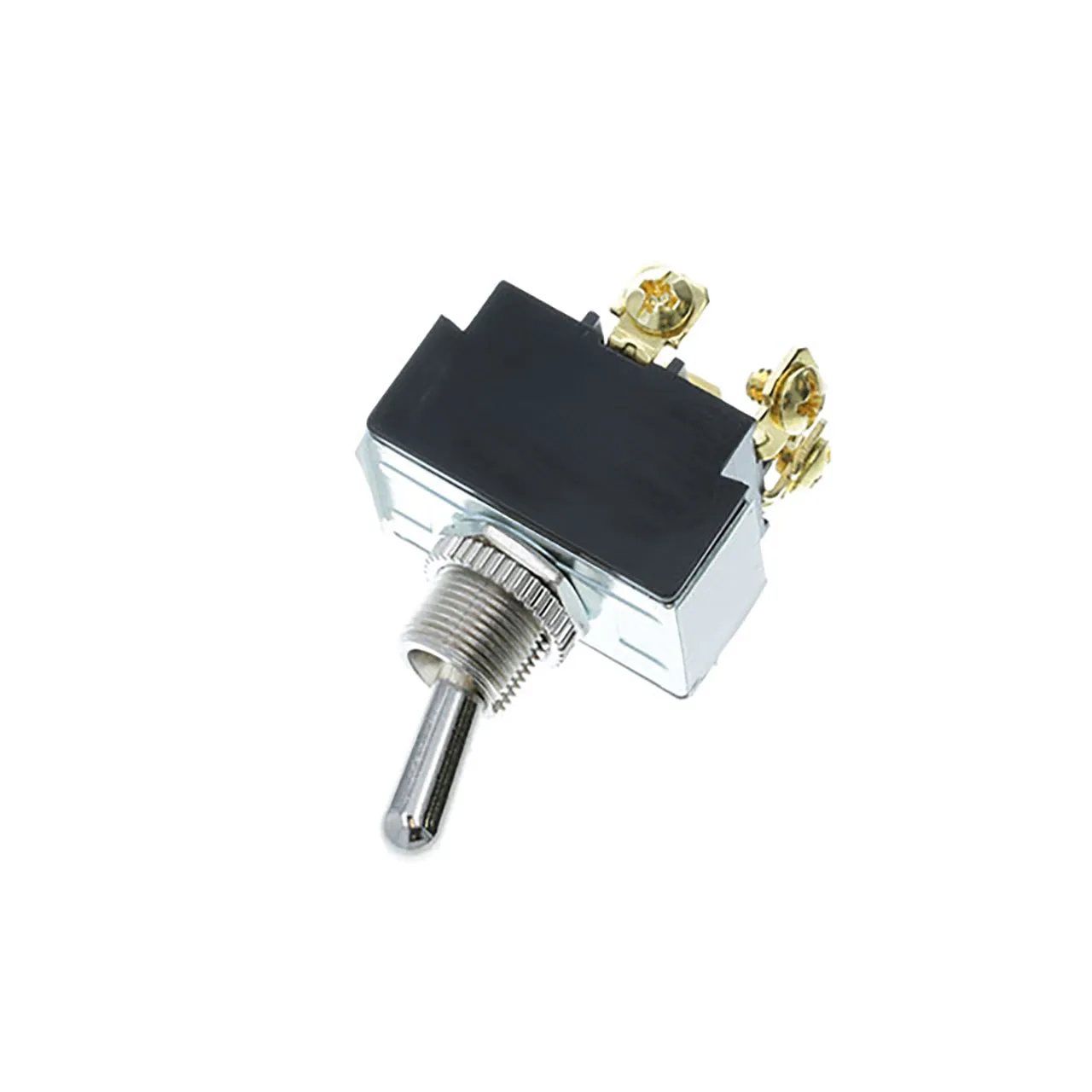

Toggle - 4P DPST OFF-(ON) Screw Brass

Features

  • Series: TB1
  • Mounting Type: Panel Mount
  • Circuit: DPST-NO
  • Switch Function: Off-Mom
  • Current Rating (Amps): 20A (AC), 21A (DC)
  • Voltage Rating - AC: 125 V
  • Voltage Rating - DC: 14 V
  • Actuator Type: Standard Round
  • Actuator Length: 16.50 mm
  • Illumination: Non-Illuminated
  • Termination Style: Screw Terminal
  • Panel Cutout Dimensions: Circular - 12.00mm Dia
  • Bushing Thread: 15/32-32
  • Product Type: Toggle Switch
  • Harmonized Code: 8536.50.4000
  • ECCN: EAR99

Overview

Toggle - 4P DPST OFF-(ON), Screw.

Product Identification

Additional Feature:Keyway

Dimensions & Appearance

Mounting Style:Panel, Rear
Depth:1.07 in.
Width:0.75 in.
Height:1.12 in.
Length:1.30 in.
Body Color:Black
Mounting Hole:Circular - 12.00mm Dia
Body Orientation:Straight

Features

Bushing Type:Threaded
Number of Positions:2
Pins:4
Minimum Insulation Resistance:100MOhm
Maximum Contact Resistance:50mOhm
Electrical Life:6000 Cycles
Switch Function:OFF-(ON)
Dielectric Strength:1500V
UL Flammability Code:N/A
Color - Actuator/Cap:Chrome
Contact Form:DPST-NO
Thread Size:15/32-32
Voltage Rating:14 VDC, 125/277 VAC
Termination Style:Screw Terminal
Actuator Length:16.50 mm
Actuator Type:Standard Round
Contact Rating:21A @ 14VDC, 20A @ 125VAC, 10A @ 277VAC
Current Rating:20A (AC), 21A (DC)
,
