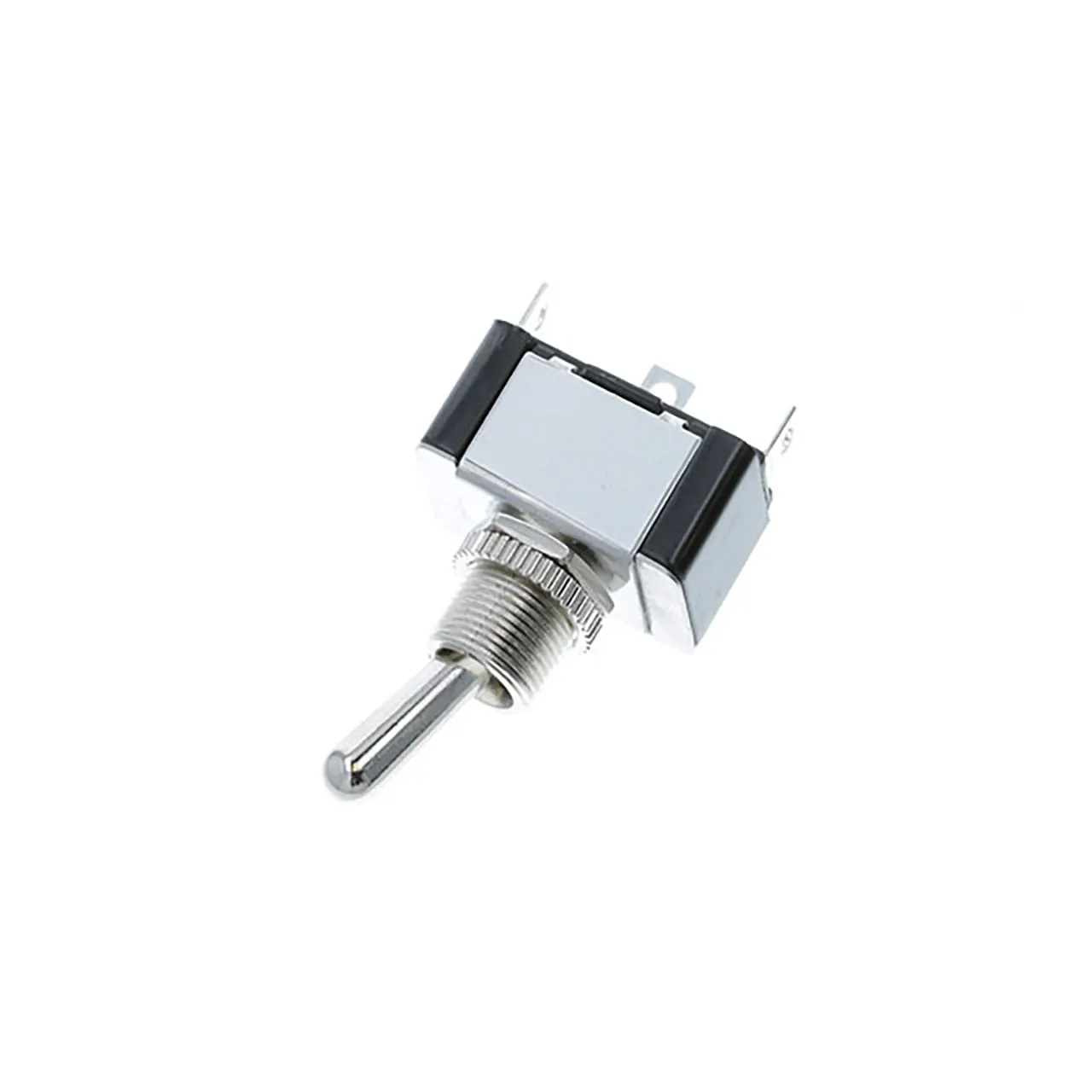

Toggle - 3P SPDT ON-ON Solder

Features

  • Series: TA2
  • Mounting Type: Panel Mount
  • Circuit: SPDT
  • Switch Function: On-On
  • Current Rating (Amps): 20A (AC), 21A (DC)
  • Voltage Rating - AC: 125 V
  • Voltage Rating - DC: 14 V
  • Actuator Type: Standard Round
  • Actuator Length: 16.50 mm
  • Illumination: Non-Illuminated
  • Termination Style: Solder Lug
  • Panel Cutout Dimensions: Circular - 12.00mm Dia
  • Bushing Thread: 15/32-32
  • Operating Temperature: -20°C to 85°C
  • Product Type: Toggle Switch
  • Harmonized Code: 8536.50.4000
  • ECCN: EAR99
  • CAD Drawing (STP .zip)
  • 360 Animation Download (.zip)

Overview

Toggle - 3P SPDT ON-ON, Solder.

Product Identification

Additional Feature:Keyway

Dimensions & Appearance

Mounting Style:Panel, Rear
Depth:0.70 in.
Height:0.47 in.
Width:0.63 in.
Length:1.13 in.
Body Color:Black
Mounting Hole:Circular - 12.00mm Dia
Body Orientation:Straight

Features

Bushing Type:Threaded
Number of Positions:2
Pins:3
Minimum Insulation Resistance:100MOhm
Seal Description:N/A
Seal Location:N/A
Maximum Contact Resistance:50 mOhm
Electrical Life:6000 Cycles
Dielectric Strength:1500V
Illumination Type:N/A
Housing Material:N/A
Contact Material:N/A
Switch Function:ON-ON
Color - Actuator/Cap:Chrome
Thread Size:15/32-32 NS-2A
Contact Form:SPDT
Voltage Rating:14 VDC, 125/277 VAC
Termination Style:Solder Lug
Actuator Length:16.50 mm
Actuator Type:Standard Round
Contact Rating:21A @ 14VDC, 20A @ 125VAC, 10A @ 277VAC
Current Rating:21 A
,
