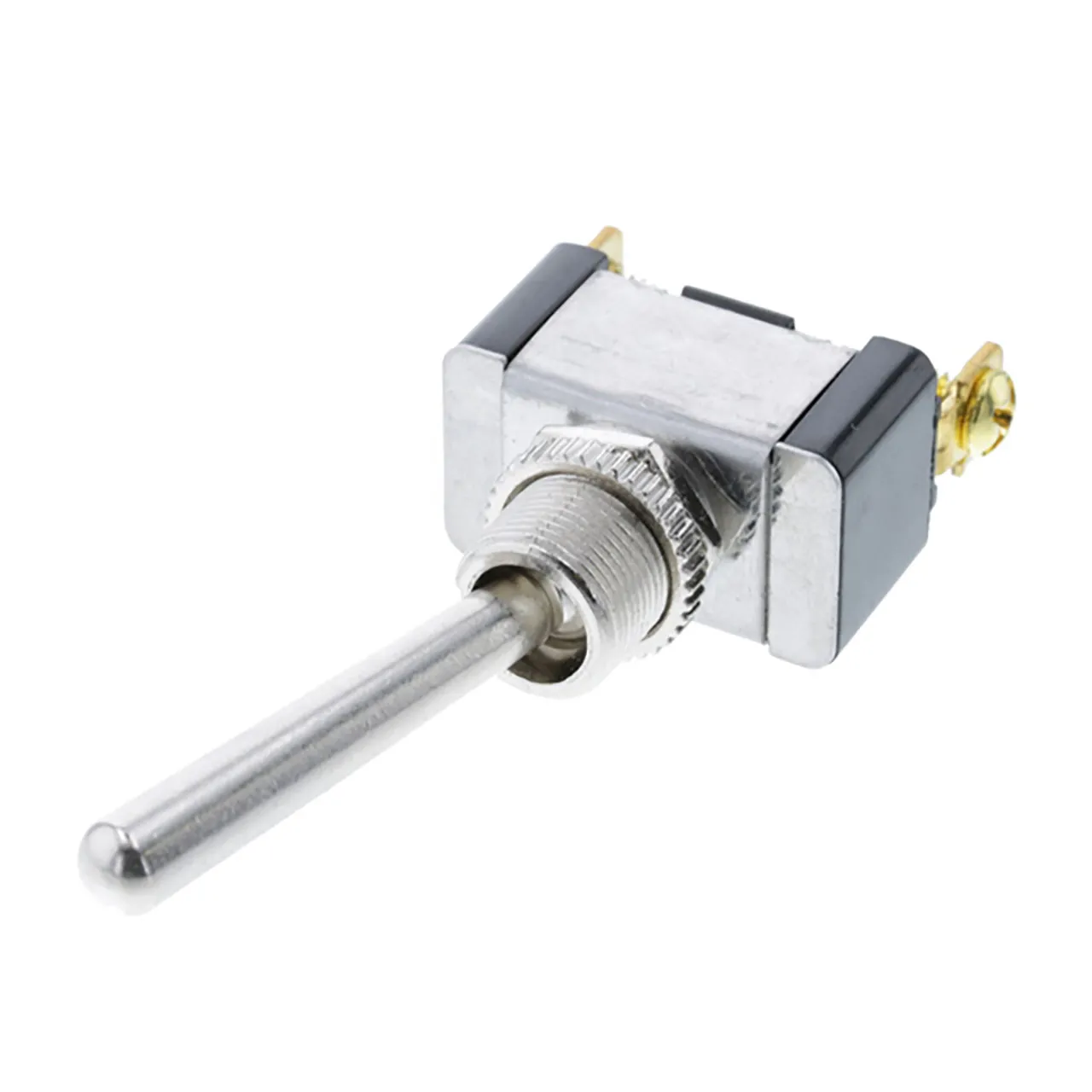

Toggle - 2P SPST OFF-ON Screw - Long Lever
Features
- Series: TA2
- Mounting Type: Panel Mount
- Circuit: SPST
- Switch Function: On-Off
- Current Rating (Amps): 20A (AC), 21A (DC)
- Voltage Rating - AC: 125 V
- Voltage Rating - DC: 14 V
- Actuator Type: Standard Round
- Actuator Length: 34.80 mm
- Illumination: Non-Illuminated
- Termination Style: Quick Connect - 0.250" (6.3mm)
- Panel Cutout Dimensions: Circular - 12.00mm Dia
- Bushing Thread: 15/32-32
- Operating Temperature: 0°C to 65°C
- Product Type: Toggle Switch
- Harmonized Code: 8536.50.4000
- ECCN: EAR99
- 360 Animation Download (.zip)
Overview
Toggle - 2P SPST OFF-ON, Screw - Long Lever.
Product Identification
Additional Feature:Keyway
Dimensions & Appearance
Body Orientation:Straight
Mounting Style:Panel, Rear
Depth:0.70 in.
Height:0.47 in.
Width:0.63 in.
Length:1.13 in.
Body Color:Black
Mounting Hole:Circular - 12.00mm Dia
Features
Pins:2
Bushing Type:Threaded
Number of Positions:2
Minimum Insulation Resistance:100MOhm
Seal Description:N/A
Seal Location:N/A
Maximum Contact Resistance:50 mOhm
Electrical Life:6000 Cycles
Dielectric Strength:1500V
Illumination Type:N/A
Housing Material:N/A
Contact Material:N/A
Switch Function:ON-OFF
Color - Actuator/Cap:Chrome
Actuator Type:Long Round
Thread Size:15/32-32 NS-2A
Voltage Rating:14 VDC, 125/277 VAC
Contact Form:SPST
Termination Style:Screw Terminal
Actuator Length:34.80 mm
Contact Rating:21A @ 14VDC, 20A @ 125VAC, 10A @ 277VAC
Current Rating:21 A
