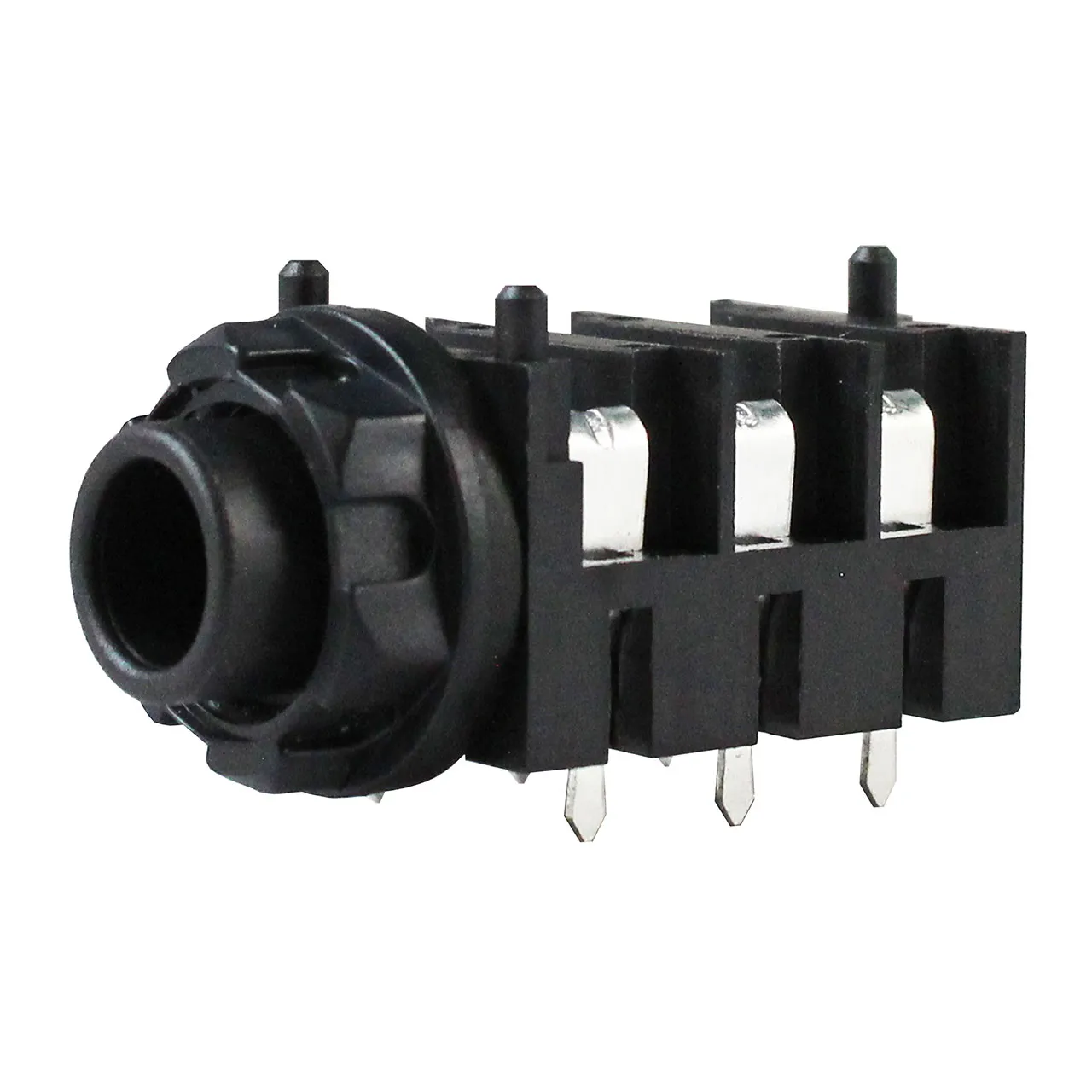

TJ-Series Stereo-Switched 6-Pin 1/4" Jack Horizontal PCB Mount Half-Threaded Nose

Features

  • Contact Resistance: < 30mΩ
  • Insulation Resistance: ≥ 100MΩ
  • Dialectric Strength: 500VAC @ 60s
  • Current Rating: 1A/30V DC
  • Number of Pins/Poles: 6
  • Gender: Female
  • Contact Material: Brass
  • Contact Platng: Silver
  • Shell Material: Polyamid
  • Shell Color: Black
  • Wiring: PCB Mount Horizontal
  • Flammability Rating: UL94V-0

Overview

1/4? Stereo Jack, Switched, Half Threaded Nose, Horizontal PCB. Mounting Hardware Included.

The Tiny Jack (TJ) Series of ¼" phone jacks features a slim design with a high packing density. It features black, plastic housing with a half threaded nose. The TJ Series provides a switched-contact design which makes them a perfect solution for design-in applications where the termination method is to a printed circuit board and independent control of switched contacts is needed. The compact form factor of the these connectors makes them perfect for situations where space saving is a priority or space for a connector is limited.

Fits a 11.4mm chassis cutout. Available in Mono-Switched (IO-TJ4HH) and Stereo-Switched (IO-TJ6HH) options for horizontal PCB mounting. Also available with a fully threaded nose (IO-TJ4HF & IO-TJ6HF).

Product Identification

Product Type:1/4" Connector
Manufacturer Series:TJ-Series

Dimensions & Appearance

Body Orientation:Horizontal
Color:Black
Mounting:Through Hole

Features

Contact Material:Brass
Number of Contacts:6
Termination Method:PCB Mount, Horizontal
Housing Material:Polyamid
Contact Plating:Silver
Gender:Jack
Voltage Rating:30 VDC
Current Rating:1A
,
