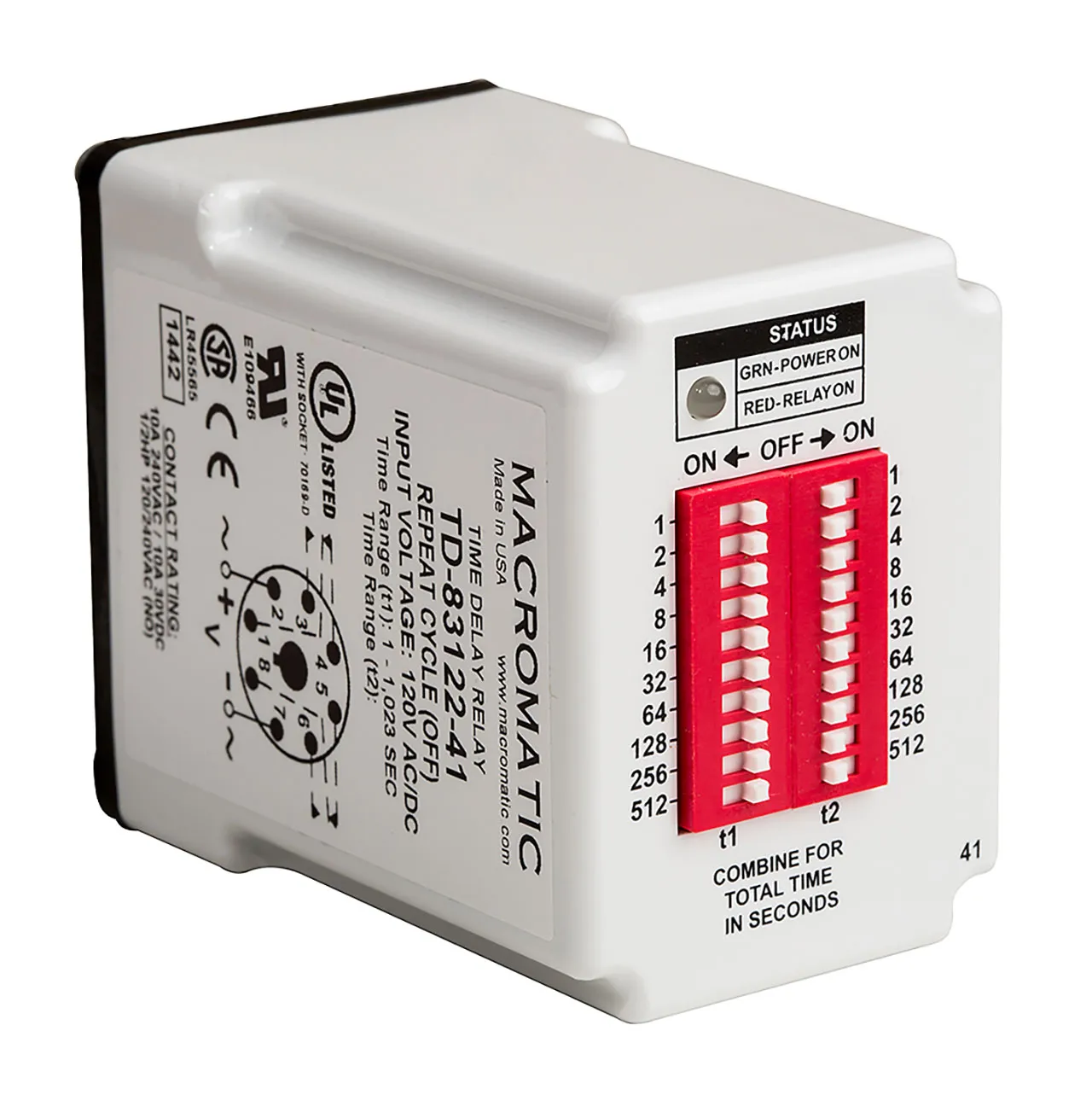

Time Delay Multi-Function DIP Sw settings 50ms - 10230HR 120V AC/DC 10 DPDT

Features

  • Family: TD-8
  • Function: Multi-Function (16 functions in one product)
  • Output Configuration: DPDT
  • Input Voltage: 120VAC/DC
  • Time Ranges: Unspecified Configuration ()
  • Standard Modification: Unspecified Configuration ()
  • Function: MULTI-FUNCTION
  • Function Name: TD-881
  • Timing Range: 50MS - 10,230 HR.
  • Input: 120V AC/DC
  • Output: 10A DPDT
  • Voltage Tolerance: AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation: +10/-15% of nominal.
  • Insulation Voltage: 2,000 volts
  • Load Burden: 2 VA
  • Output Contacts: 10A @ 240V AC/30V DC, 1/2HP @ 120/240V AC (N.O.),1/3HP @ 120/240V AC (N.C.), B300 & R300
  • Life: Mechanical: 10000000 operations; Full Load: 100000 operations
  • Temperature: -28° to 65°C (-18° to 149°F)
  • Reset Time: 0.1 Seconds
  • Repeat Accuracy (Constant Voltage and Temperature): +0.1% of set time or +0.02 seconds, whichever is greater.
  • Setting Accuracy: +1% of set time or +50ms, whichever is greater.

Overview

Upon application of input voltage, the time delay (t) begins. At the end of the time delay (t), the output is energized. Input voltage must be removed to reset the time delay relay & de-energize the output.

,
