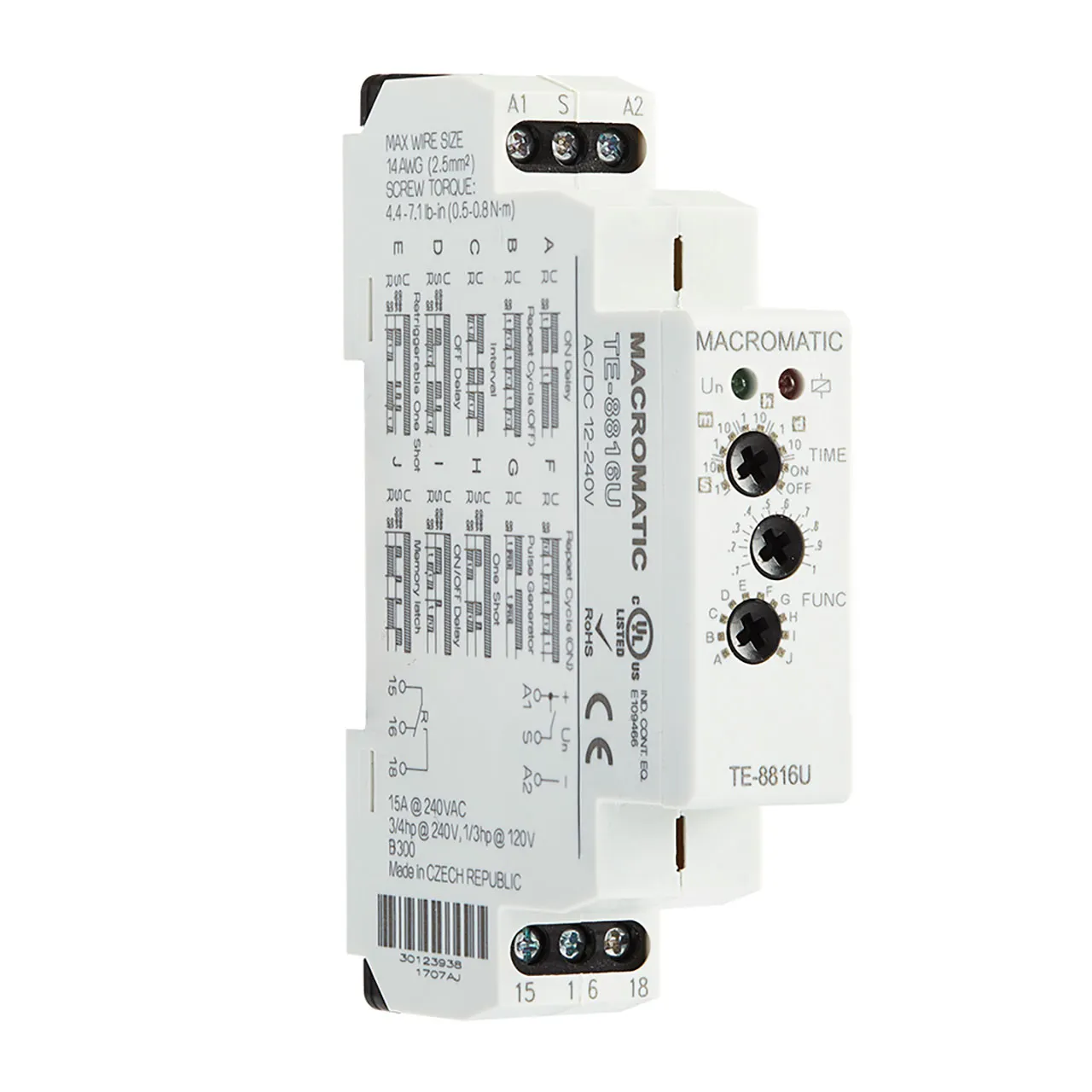

Time Delay Multi-Function DIN Mount 0.1sec-10 Days 12-240V AC/DC 15A DPDT

Macromatic

Jameco Part #:

Manufacturer #:

Non Cancelable

Non Returnable

Product Price:

$55.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$55.950	-	-
5+	$52.950	3.00	5.36%
25+	$49.950	6.00	10.72%

Features

Family: TE-
Function: Multifunction (see Catalog)
Output Configuration: DPDT
Input Voltage: 12-240V AC/DC
Function: MULTI-FUNCTION
Function Name: TE-881
Timing Range: 0.1 sec - 10 days
Input: 12-240V AC/DC
Output: 15A DPDT
Voltage Tolerance: -15% of 12V, +10% of 240V
Load Burden: 3VA (AC), 1.7W (DC)
Output Contacts: 15A @ 240V AC, 1/3HP @ 120V AC, 3/4HP @ 240V AC, B300
Life: Mechanical: 10,000,000 operations; Full Load: 70000 operations
Temperature: -20° to 55°C (-4° to 131°F)
Indicator LEDs: Green-Input Voltage; Red (Flashing)-Timing or Red (Steady)-Relay ON
Reset Time: 0.150 Seconds
Repeat Accuracy (Constant Voltage and Temperature): +0.2%

Overview

TE-881 products have 10 functions built-in. The operation of each one is shown at right. For more information, click here to view and/or print the catalog page in .pdf format, or click here to view and/or print the instruction sheet in .pdf format.
