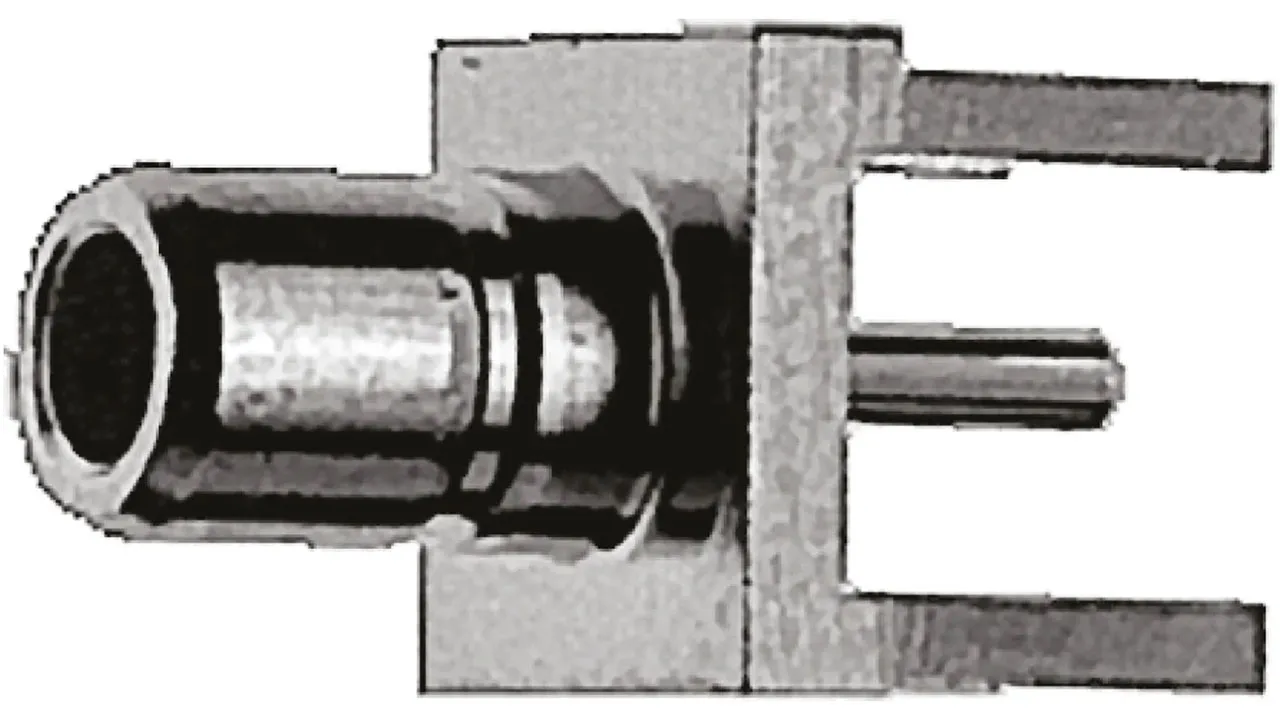

Through Hole SMD Connector 50 Ohms Solder Termination Straight Body

Clearance

Telegartner

Jameco Part #:

Manufacturer #:

HTS code:8536.69.4010

Primary datasheet

Product Price:

$2.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$2.950	-	-
10+	$2.590	0.36	12.2%
25+	$2.290	0.66	22.37%

Features

Coaxial Connector Type: SMB Connector
Gender: Male
Mounting Type: Through Hole
Impedance: 50Ω
Termination Method: Solder
Body Orientation: Straight
Size: Subminiature
Operating Frequency: 0 to 4GHz
Body Plating: Gold
Contact Material: Beryllium Copper
Contact Plating: Gold
Mating Type: Push-Pull

Overview

These connector series offer three different coupling mechanisms: SMB has a snap-on coupling allowing quick but secure connection, and is usable up to 4 GHz. SMC has a threaded coupling for vibration proof installation, and is usable up to 10 GHz. SMS has a slide coupling which is suitable for rack and panel systems, and is usable up to 4 GHz.
