Decrease resistance with increasing temperature with Jameco's selection of NTC Thermistors. These negative temperature coefficient thermistors are resistors with a negative temperature coefficient, and can be used as current-limiting devices & resistive temperature sensors. You'll solve a bunch of temperature sensing & circuit protection challenges with these handy devices.

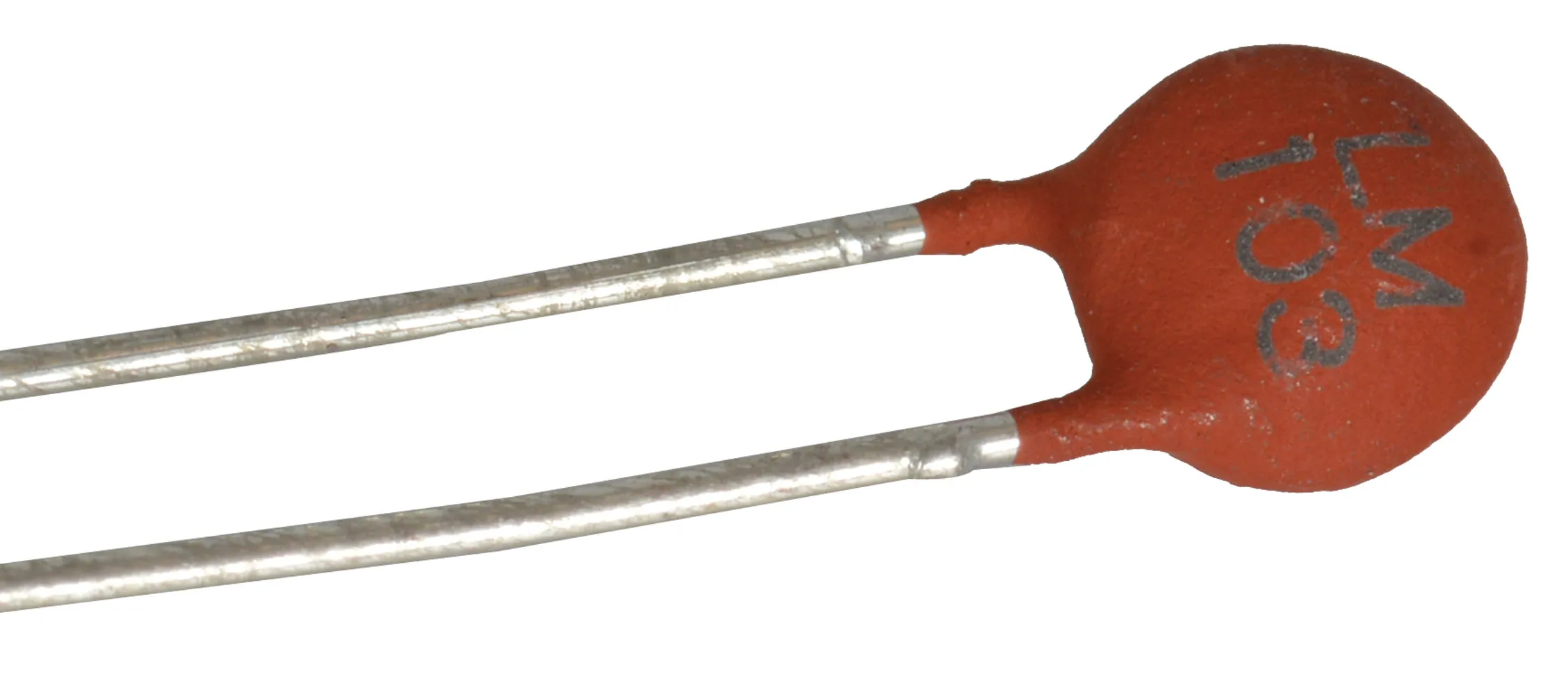

Negative Temperature Coefficient (NTC) Thermistor
Maximum Allowable Power @ 250°C: 0.55W
Features:
- Resistance @ 25°C: 10kΩ (Allowable difference of 10%)
- B constant (25/50°C > 10%): 4100
- Temperature coefficient @ 25°C: -4.6%/°C
- Thermal dissipation factor @ 250°C: 6.5mW/°C
Applications:
- Temperature measurement
- Temperature control
- Temperature compensation
- Power supply fan control
- PCB temperature monitoring
For more about Transistors, click here.
Product Identification
Product Type:NTC
Dimensions & Appearance
Body Diameter:4.5 mm
Packaging
Package:Radial
Features
Thermal Dissipation Factor @ 250°C (max):6.5mW/°C
Temperature Coefficient:-4.4 %/°C
Tolerance:10%
Resistance:10 KOhm
Current Rating:N/A
Power Rating:550 mW
B Parameter:4038 K
