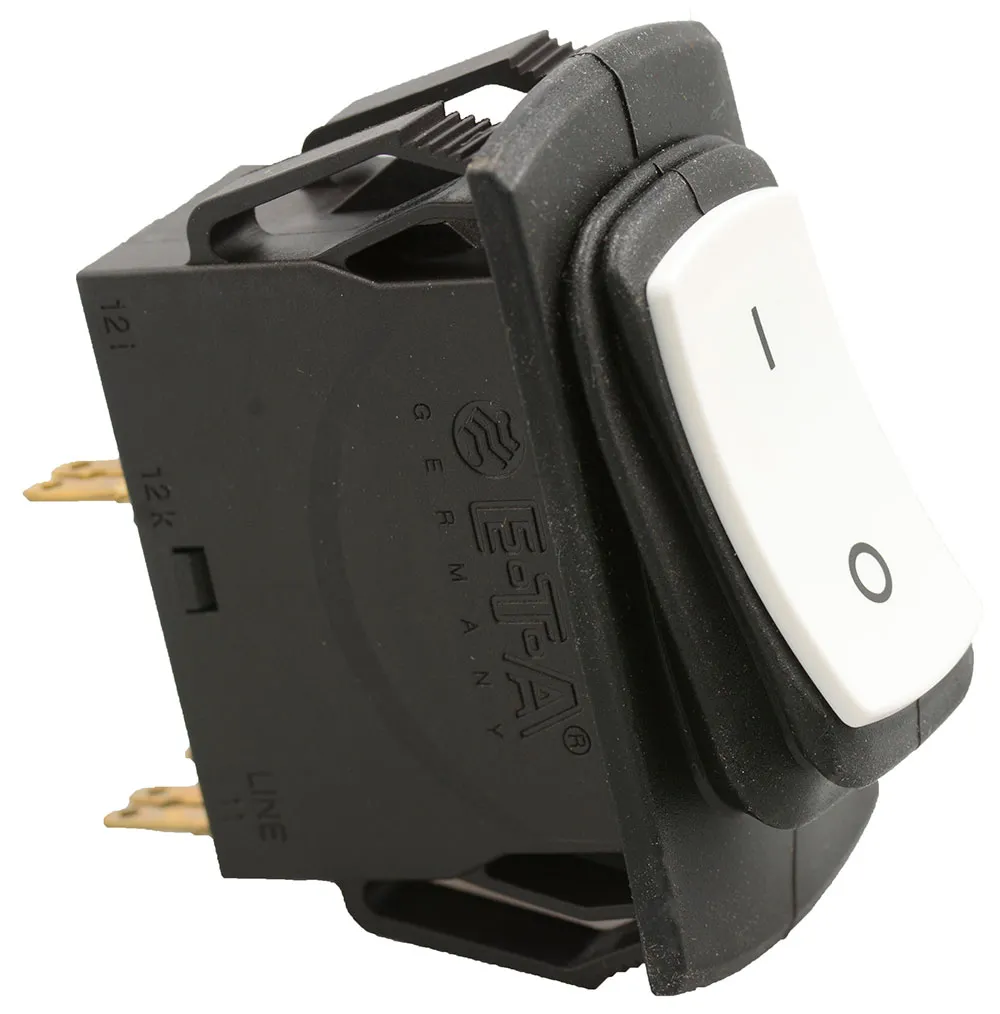

Thermal Circuit Breaker 15A 240 VAC 50 VDC White Rocker Actuator Panel Mount

Specifications

  • Series: 3120-N
  • Breaker Type: Thermal
  • Number of Poles: 2
  • Current Rating: 15 A
  • Voltage Rating: 240 VAC, 50 VDC
  • Actuator Type: Rocker
  • Actuator Color: White
  • Illumination: None
  • Illumination Voltage (Nominal): n/a
  • Ingress Protection: IP65
  • Mounting Type: Panel Mount
  • Mounting Hole: Rectangular - 50.50mm x 21.50mm
  • Approval Agency: CQC, CSA, KTL, UL, VDE

Dimensions & Appearance

Mounting Hole:Rectangular - 50.50mm x 21.50mm

Features

Number of Terminals:4
Illuminated Color:A, N
Termination:0.250 x 0.031 Blade Terminal
Color - Actuator/Cap:White
Voltage Rating:240 VAC, 50 VDC
Current Rating:15 A
,
