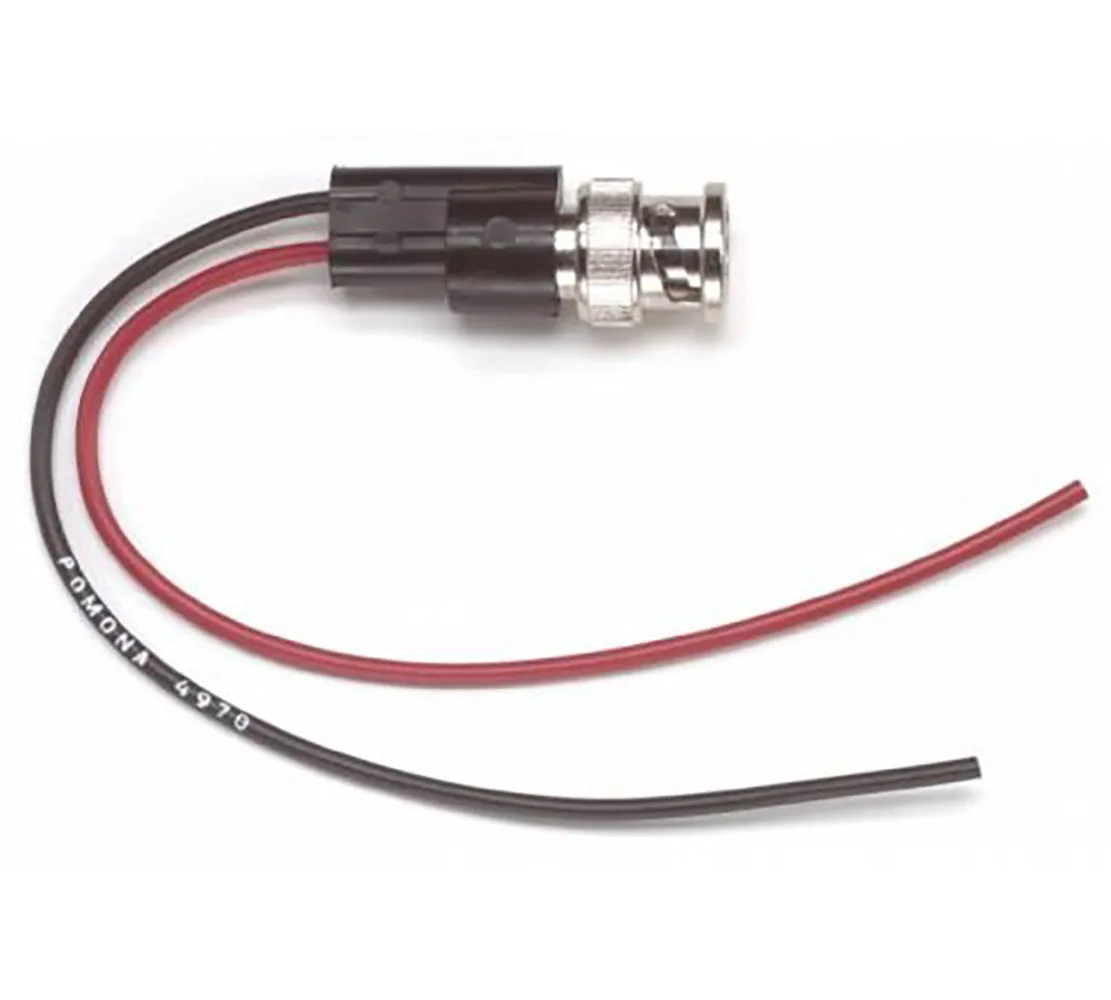

Test Lead BNC Male to 5.9" Wires

Features

  • Breakout quickly converts a BNC cable to flying leads
  • Lead ends can be attached to terminal strips or customized
  • BNC connector is molded directly to the wire for pull strength durability and dust and moisture resistance
  • BNC center contact is gold plated Beryllium Copper for corrosion resistance, low contact resistance and long insertion life
  • Black lead is connected to BNC shell, red lead to BNC center contact

Specifications

  • Test cable type: BNC to Wire Leads
  • 1st Connector: BNC (Male Plug)
  • 2nd Connector: Wire Leads
  • Cable Length: 5.9" (149.86mm)
  • Wire Gauge: 20 AWG
  • Voltage - Rated: 500VAC
  • Temperature Range: 131°F (55°C)
  • Material - Insulation: Poly-Vinyl Chloride (PVC)
  • Color: Black and Red

Product Identification

Product Type:Test Lead

Dimensions & Appearance

Color:Black, Red
Length:5.9 in., 149.86 mm

Features

Configuration:BNC to Wire Leads
Wire Gauge (AWG):20
1st Connector:BNC Male
2nd Connector:Wire Leads
Voltage Rating:500 VAC
,
