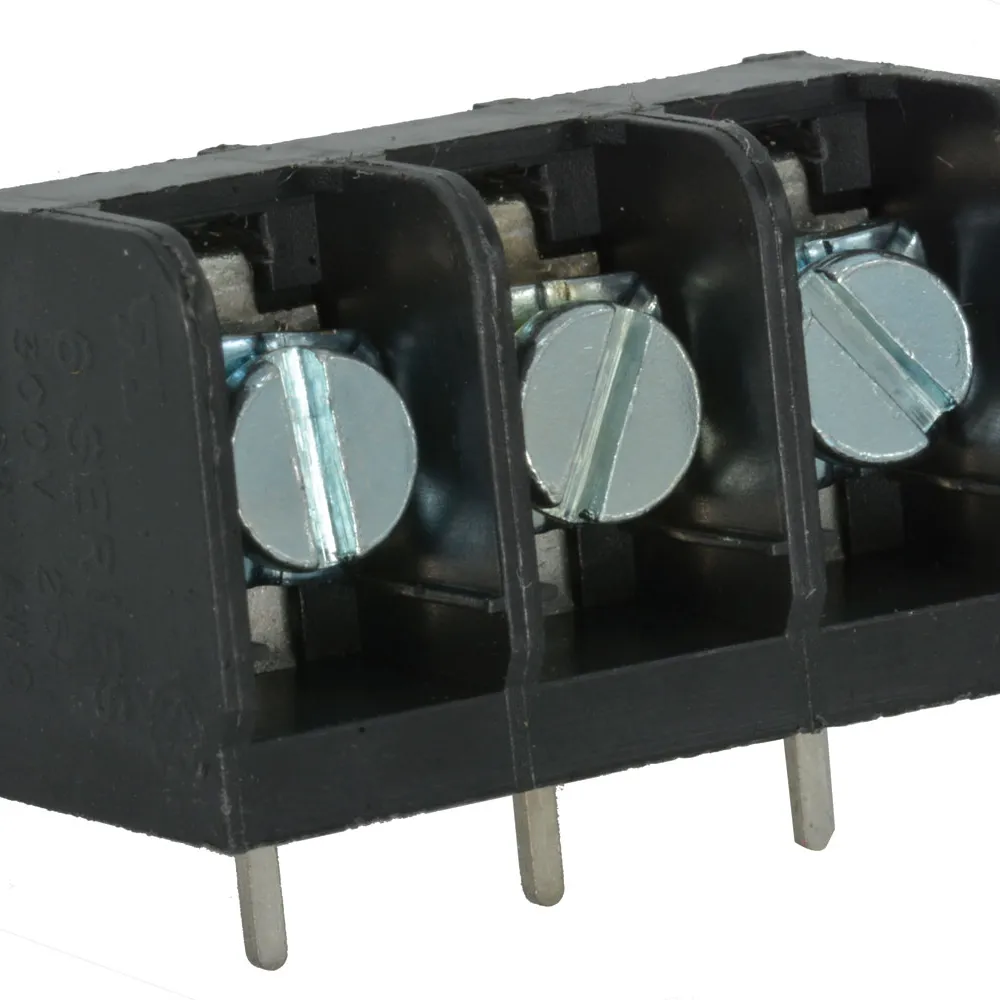

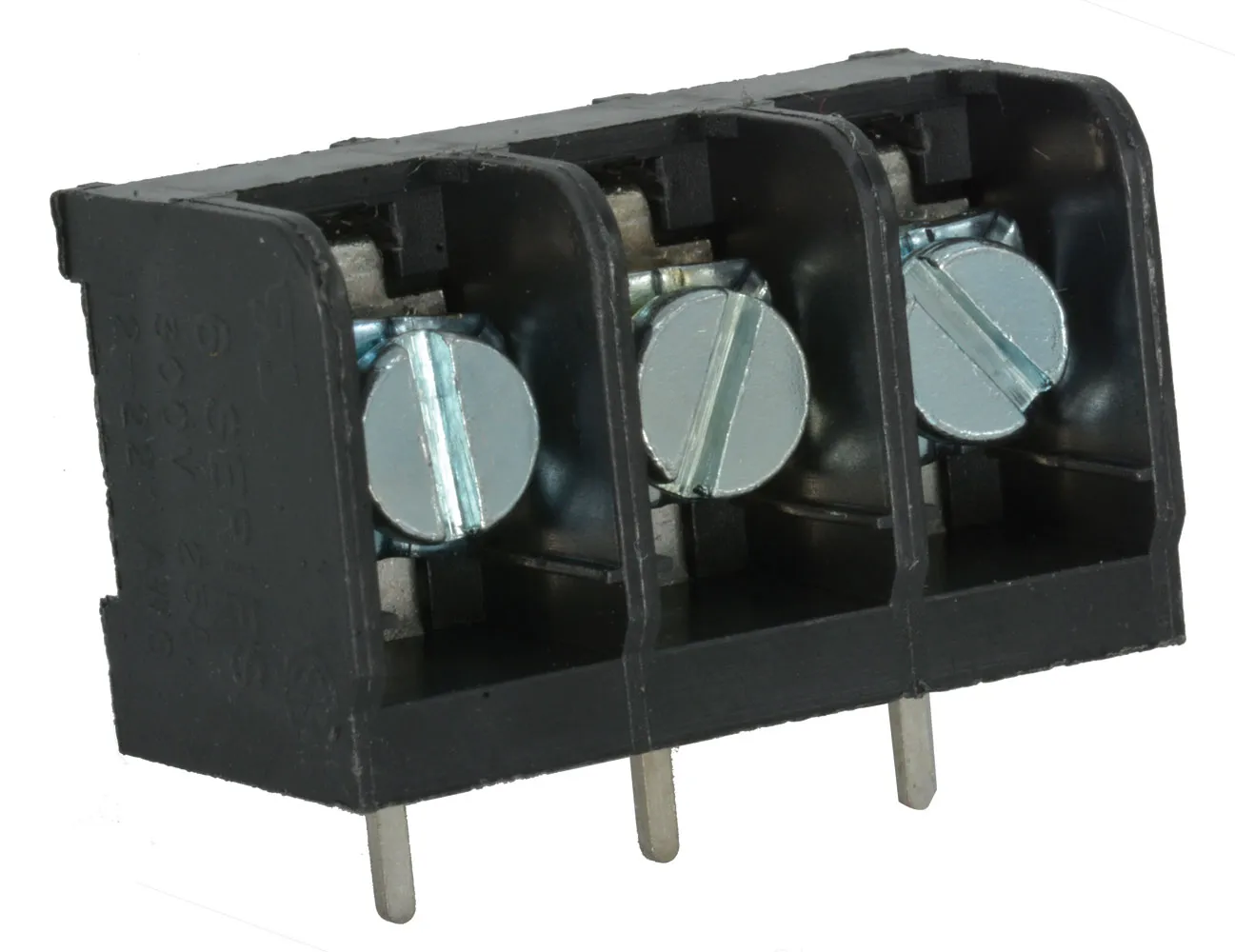

Terminal Barrier Strip 3 Position 9.53mm Pitch Straight PC Mount 25A

Specifications

  • Series: #6, Buchanan
  • Terminal Block Type: Barrier Strip
  • Number of Circuits: 3
  • Number of Wire Entries: 3
  • Pitch: 0.375" (9.53mm)
  • Number of Rows: 1
  • Current Rating: 25A
  • Voltage Rating: 300V
  • Wire Gauge: 12-22 AWG
  • Top Termination: 6-32 screws with captive plate (right angle)
  • Bottom Termination: PC Pin
  • Barrier Type: 3 Wall (Tri)
  • Features: Flange
  • Color: Black
  • Terminal Screw Material: Steel
  • Terminal Screw Finish: Zinc, Clear Chromate
  • Mounting Type: Chassis, Panel
  • Operating Temperature: 105°C
  • Material - Insulation: Thermoplastic
  • Material Flammability Rating: UL94 V-0

Product Identification

Product Type:Single Row Tri-Barrier Strip
Manufacturer Series:Buchanan #6

Dimensions & Appearance

Depth:16 mm
Length:30.1 mm
Mounting:Through Hole
Body Orientation:Right Angle

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C

Features

Number of Rows:1
Number of Positions:3
Housing Color:Black
Contact Material:Brass
Top Termination:Screw, 6-32
Bottom Termination:PC Pin Right Angle w/o Flange
Pitch:0.375 in., 9.53 mm
Contact Plating:Tin
Wire Gauge (AWG):12-22
Housing Material:Thermoplastic
Voltage Rating:300 VAC
Current Rating:25 A
,
