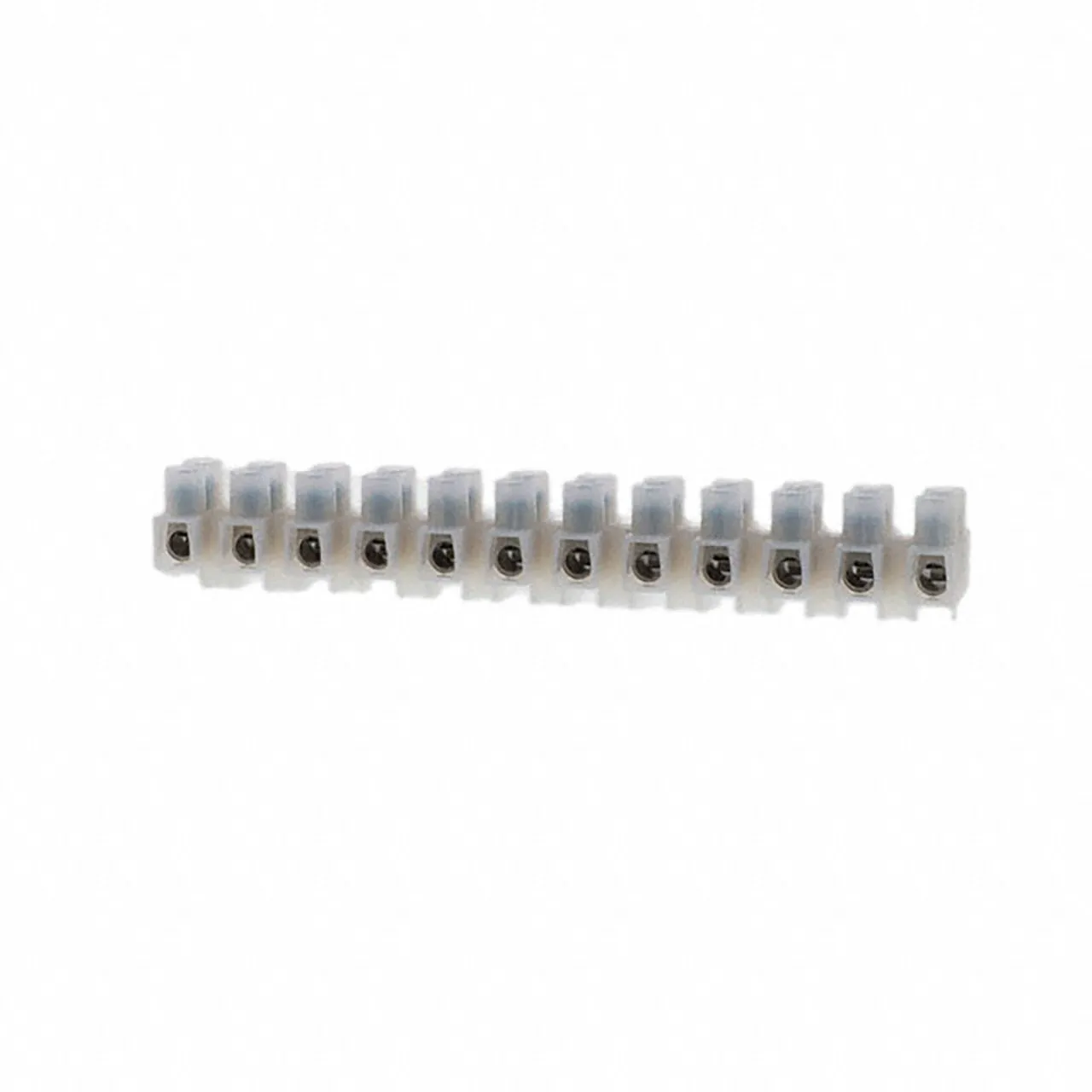

Terminal Strip Panel Mount ATSF16/12 12 Pole 15.1mm Spacing 600V 63A

Features

• Color: White
• Dim & Weight (Pitch Spacing): 15 mm
• Weight Per Piece: 98 g
• Min Wire Size (UL): 14 AWG
• Max Wire Size (UL): 6 AWG
• Min Wire Size - SA: 18 AWG
• Max Wire Size - SA: 6 AWG
• Min Wire Size IEC: 0.2 mm²
• Max Wire Size IEC: 16 mm²
• Voltage Rating - UL: 600 V
• Voltage Rating - SA: 600 V
• Voltage Rating - IEC: 800 V
• Current Rating -UL: 63 A
• Current Rating - SA: 65 A
• Current Rating - IEC: 82 A
• Torque - UL / SA (ATS): 20 lb-in.
• Torque - IEC: 2.25 Nm
• Insulation Material: Polyamide 6.6
• Insert Material: Nickel Plated Copper Alloy
• Terminal Screw Material: Zinc Yellow Chromated Steel
• Wire Stripping Length: 8 mm
• Mounting Hole Diameter: 4.2 mm
• Terminal Screw Size: M5
• Poles: 12
• Length : 176.0 mm
• Standard Pack: 10
• (Accessories) External Jumpers - 2 pole: HCL15-2
• (Accessories) External Jumper - 3 Pole: HCL15-3
• (Accessories) External jumper - 4 Pole: HCL15-4
• (Accessories) External Jumper - 12 pole: HCL15-12
• Marking Plates -Blank: BS1016E
• Marking Plates No. 1-12: BS1016EM1-12
• Marking Plates No. 13-24: BS1016EM13-24

Overview

Terminal Strip Panel Mount ATSF16/12 12 Pole 15.1mm Spacing 600V 63A
