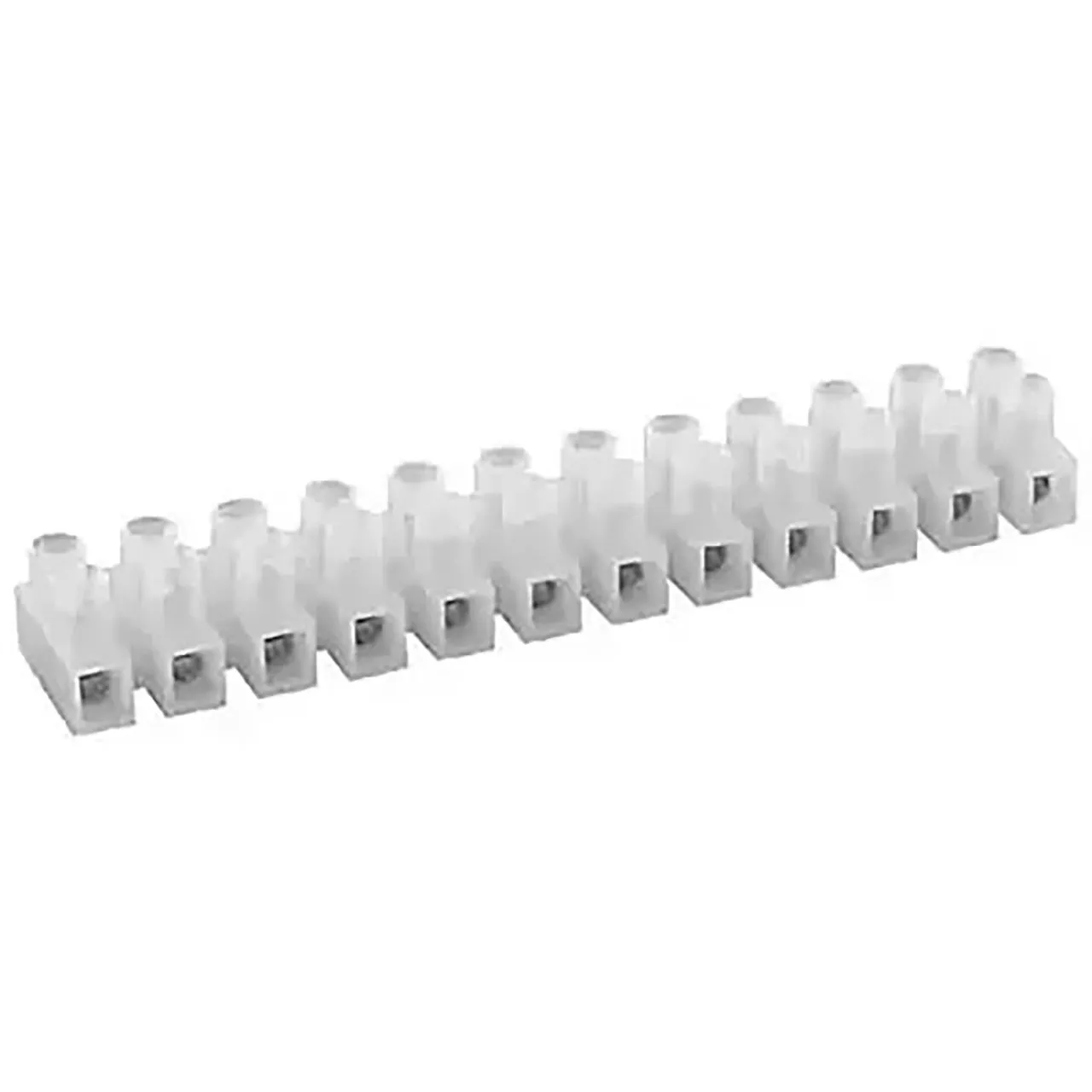

Terminal Strip Panel Mount ATSF1.5/12 12 Pole 8mm Spacing 600V 20A

Features

• Color: White
• Dim & Weight (Pitch Spacing): 8 mm
• Weight Per Piece: 30 g
• Min Wire Size (UL): 22 AWG
• Max Wire Size (UL): 12 AWG
• Min Wire Size - SA: 22 AWG
• Max Wire Size - SA: 16 AWG
• Min Wire Size IEC: 0.2 mm²
• Max Wire Size IEC: 1.5 mm²
• Voltage Rating - UL: 600 V
• Voltage Rating - SA: 600 V
• Voltage Rating - IEC: 400 V
• Current Rating -UL: 20 A
• Current Rating - SA: 15 A
• Current Rating - IEC: 15 A
• Torque - UL / SA (ATS): 4.4 lb-in.
• Torque - IEC: 0.5 Nm
• Insulation Material: Polyamide 6.6
• Insert Material: Nickel Plated Copper Alloy
• Terminal Screw Material: Zinc Yellow Chromated Steel
• Wire Stripping Length: 5 mm
• Mounting Hole Diameter: 2.8 mm
• Terminal Screw Size: M2.5
• Poles: 12
• Length : 93.0 mm
• Standard Pack: 50
• (Accessories) External Jumpers - 2 pole: HCL8-2
• (Accessories) External Jumper - 3 Pole: HCL8-3
• (Accessories) External jumper - 4 Pole: HCL8-4
• (Accessories) External Jumper - 12 pole: HCL8-12

Overview

Terminal Strip Panel Mount ATSF1.5/12 12 Pole 8mm Spacing 600V 20A
