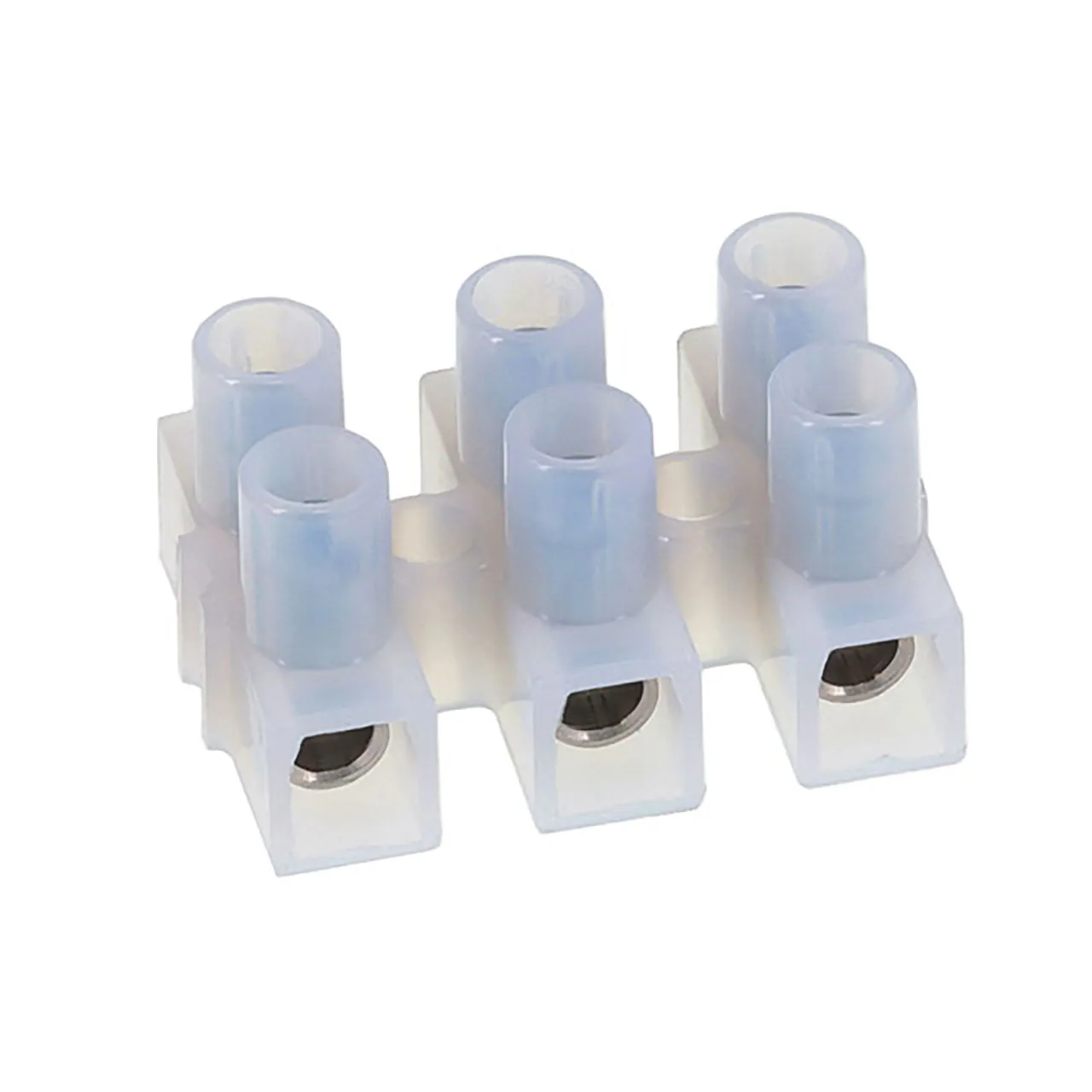

Terminal Strip Panel Mount ATS6/3 3 Pole 12mm Spacing 300V 40A

Features

• Color: White
• Dim & Weight (Pitch Spacing): 12.0 mm
• Weight Per Piece: 44 g
• Min Wire Size (UL): 20 AWG
• Max Wire Size (UL): 8 AWG
• Min Wire Size - SA: 18 AWG
• Max Wire Size - SA: 10 AWG
• Min Wire Size IEC: 0.2 mm²
• Max Wire Size IEC: 6 mm²
• Voltage Rating - UL: 300 V
• Voltage Rating - SA: 300 V
• Voltage Rating - IEC: 400 V
• Current Rating -UL: 40 A
• Current Rating - SA: 40 A
• Current Rating - IEC: 44 A
• Torque - UL / SA (ATS): 7 lb-in.
• Torque - IEC: 0.5 Nm
• Insulation Material: Polyamide 6.6
• Insert Material: Nickel Plated Copper Alloy
• Terminal Screw Material: Zinc Yellow Chromated Steel
• Wire Stripping Length: 7 mm
• Mounting Hole Diameter: 4.4 mm
• Terminal Screw Size: M3.5
• Poles: 3
• Length : 32.0 mm
• Standard Pack: 100
• (Accessories) External Jumpers - 2 pole: HCL12-2
• (Accessories) External Jumper - 3 Pole: HCL12-3
• (Accessories) External jumper - 4 Pole: HCL12-4
• (Accessories) External Jumper - 12 pole: HCL12-12
• Marking Plates -Blank: BS60E
• Marking Plates No. 1-12: BS60EM1-12
• Marking Plates No. 13-24: BS60EM13-24

Overview

Terminal Strip Panel Mount ATS6/3 3 Pole 12mm Spacing 300V 40A
