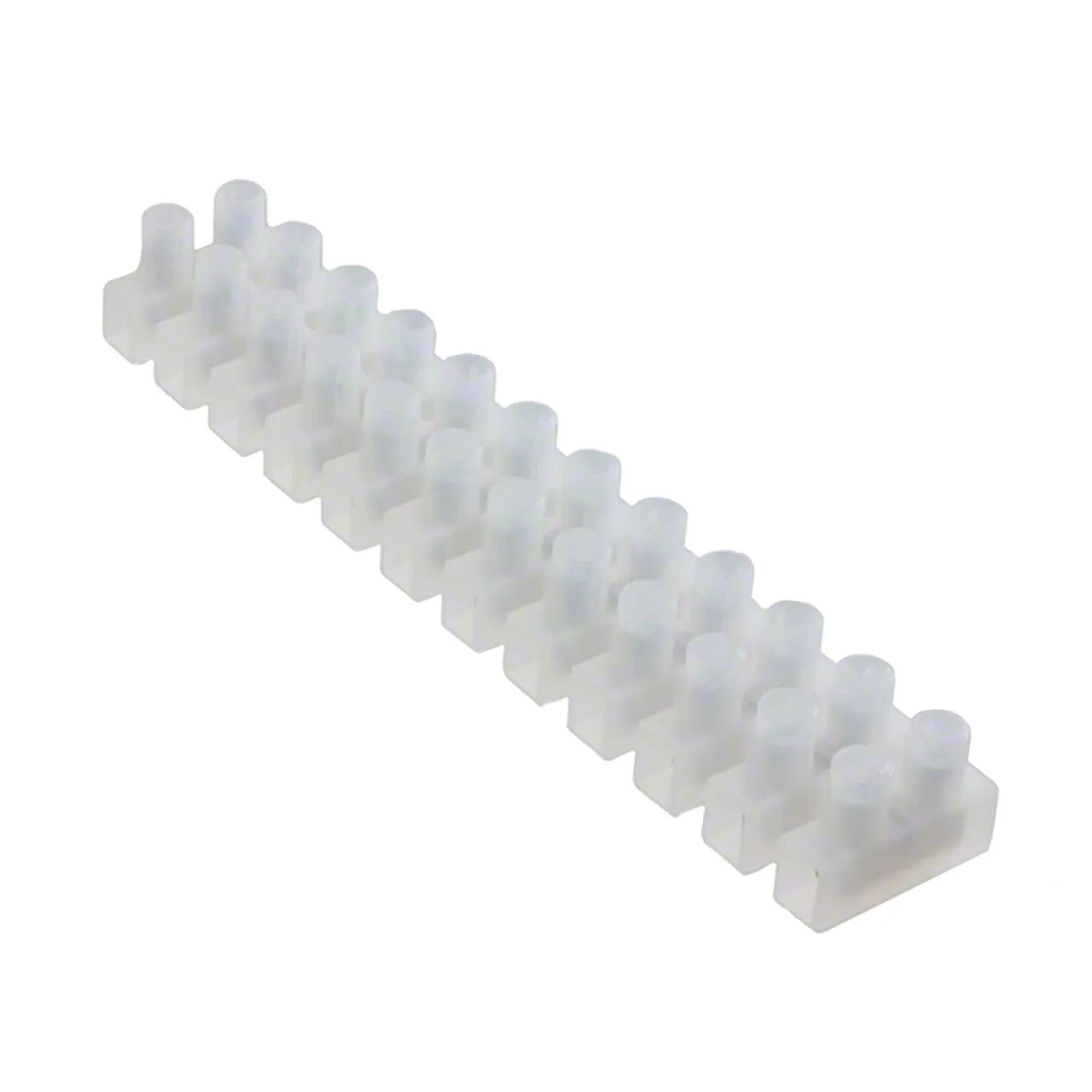

Terminal Strip Panel Mount ATS2.5/12 12 Pole 10mm Spacing 300V 30A

Features

• Color: White
• Dim & Weight (Pitch Spacing): 10 mm
• Weight Per Piece: 34 g
• Min Wire Size (UL): 22 AWG
• Max Wire Size (UL): 10 AWG
• Min Wire Size - SA: 18 AWG
• Max Wire Size - SA: 12 AWG
• Min Wire Size IEC: 0.2 mm²
• Max Wire Size IEC: 4 mm²
• Voltage Rating - UL: 300 V
• Voltage Rating - SA: 300 V
• Voltage Rating - IEC: 400 V
• Current Rating -UL: 30 A
• Current Rating - SA: 30 A
• Current Rating - IEC: 26 A
• Torque - UL / SA (ATS): 5.3 lb-in.
• Torque - IEC: 0.5 Nm
• Insulation Material: Polyamide 6.6
• Insert Material: Nickel Plated Copper Alloy
• Terminal Screw Material: Zinc Yellow Chromated Steel
• Wire Stripping Length: 6 mm
• Mounting Hole Diameter: 3.5 mm
• Terminal Screw Size: M3
• Poles: 12
• Length : 117.0 mm
• Standard Pack: 50
• (Accessories) External Jumpers - 2 pole: HCL10-2
• (Accessories) External Jumper - 3 Pole: HCL10-3
• (Accessories) External jumper - 4 Pole: HCL10-4
• (Accessories) External Jumper - 12 pole: HCL10-12
• Marking Plates -Blank: BS24E
• Marking Plates No. 1-12: BS24EM1-12
• Marking Plates No. 13-24: BS24EM12-24

Overview

Terminal Strip Panel Mount ATS2.5/12 12 Pole 10mm Spacing 300V 30A
