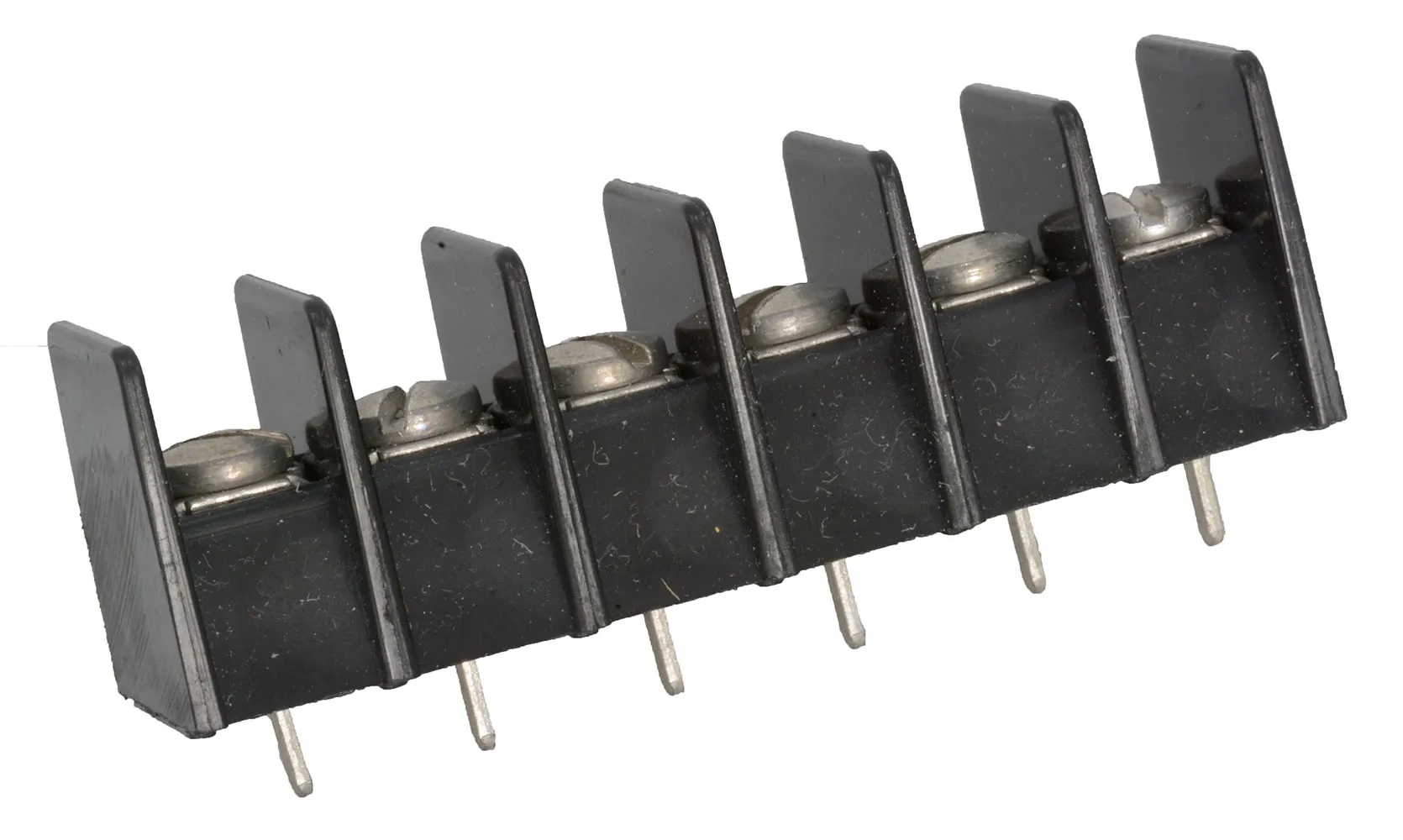

Terminal Barrier Strip 6 Position 0.375" (9.53mm) Pitch Screw Straight THM 30A 300V

Specifications

  • Series: A2000
  • Terminal Block Type: Barrier Block
  • Number of Circuits: 6
  • Number of Wire Entries: 6
  • Pitch: 0.375" (9.53mm)
  • Number of Rows: 1
  • Current Rating: 30A
  • Voltage Rating: 300V
  • Wire Gauge: 12-22 AWG
  • Top Termination: 6-32 screws
  • Bottom Termination: PC Pin
  • Barrier Type: 2 Wall (Dual)
  • Features: -
  • Color: Black
  • Terminal Screw Material: Brass
  • Terminal Screw Finish: Nickel
  • Mounting Type: Through Hole
  • Operating Temperature: -40°F to 105°F
  • Material - Insulation: Thermoplastic
  • Material Flammability Rating: UL94 V-0

Product Identification

Manufacturer Series:A2000
Product Type:Single Row Barrier Strip

Dimensions & Appearance

Body Orientation:Straight
Mounting:Through Hole
Depth:16.5 mm
Length:58.6 mm

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C

Features

Number of Rows:1
Housing Color:Black
Contact Material:Brass
Number of Positions:6
Top Termination:Screw, 6-32
Bottom Termination:PC Pin, w/o Flange
Contact Plating:Nickel
Pitch:0.375 in., 9.53 mm
Wire Gauge (AWG):12-22
Housing Material:Thermoplastic
Voltage Rating:300 VAC
Current Rating:30 A
,
