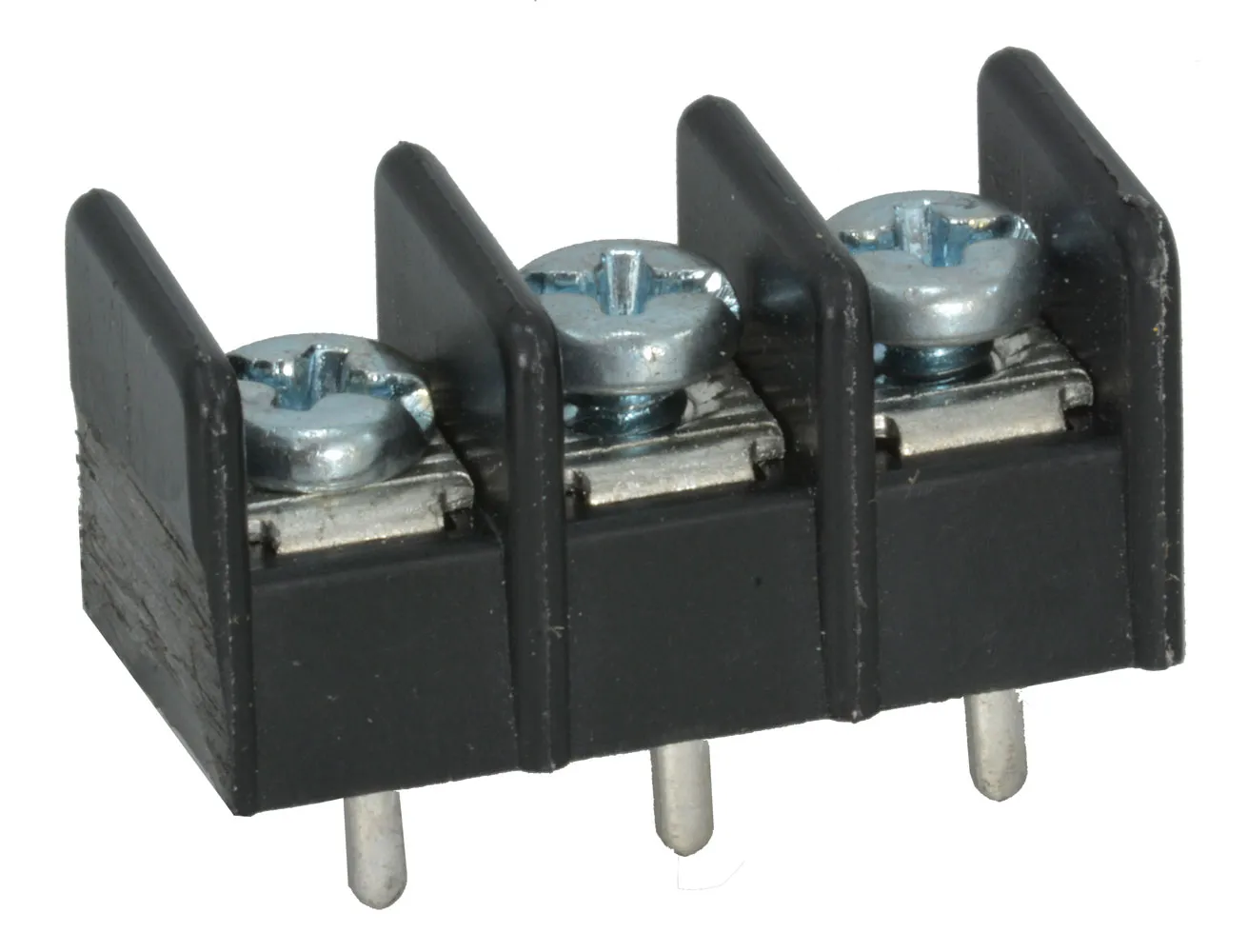

Terminal Barrier Strip 3 Position 0.325" (8.26mm) Pitch Straight PC Mount 20A 250V

Specifications

  • Series: Magnum® A1000
  • Terminal Block Type: Barrier Block
  • Number of Circuits: 3
  • Number of Wire Entries: 3
  • Pitch: 0.325" (8.26mm)
  • Number of Rows: 1
  • Current Rating: 20A
  • Voltage Rating: 250V
  • Wire Gauge: 14-22 AWG
  • Top Termination: 6-32 screws
  • Bottom Termination: Wire Wrap
  • Barrier Type: 2 Wall (Dual)
  • Features: -
  • Color: Black
  • Terminal Screw Material: Steel
  • Terminal Screw Finish: Zinc
  • Mounting Type: Chassis, Panel, Right Angle
  • Operating Temperature: -40°C to 105°C
  • Material - Insulation: Thermoplastic
  • Material Flammability Rating: UL94 V-0

Product Identification

Product Type:Single Row Barrier Strip
Manufacturer Series:A1000

Dimensions & Appearance

Body Orientation:Straight
Mounting:Through Hole
Depth:12.7 mm
Length:26.4 mm

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C

Features

Number of Rows:1
Number of Positions:3
Housing Color:Black
Contact Material:Brass
Top Termination:Screw, 6-32
Bottom Termination:PC Pin, Offset, w/o Flange
Pitch:0.325 in., 8.26 mm
Contact Plating:Tin
Housing Material:Thermoplastic
Wire Gauge (AWG):14-22
Voltage Rating:250 VAC
Current Rating:20 A
,
