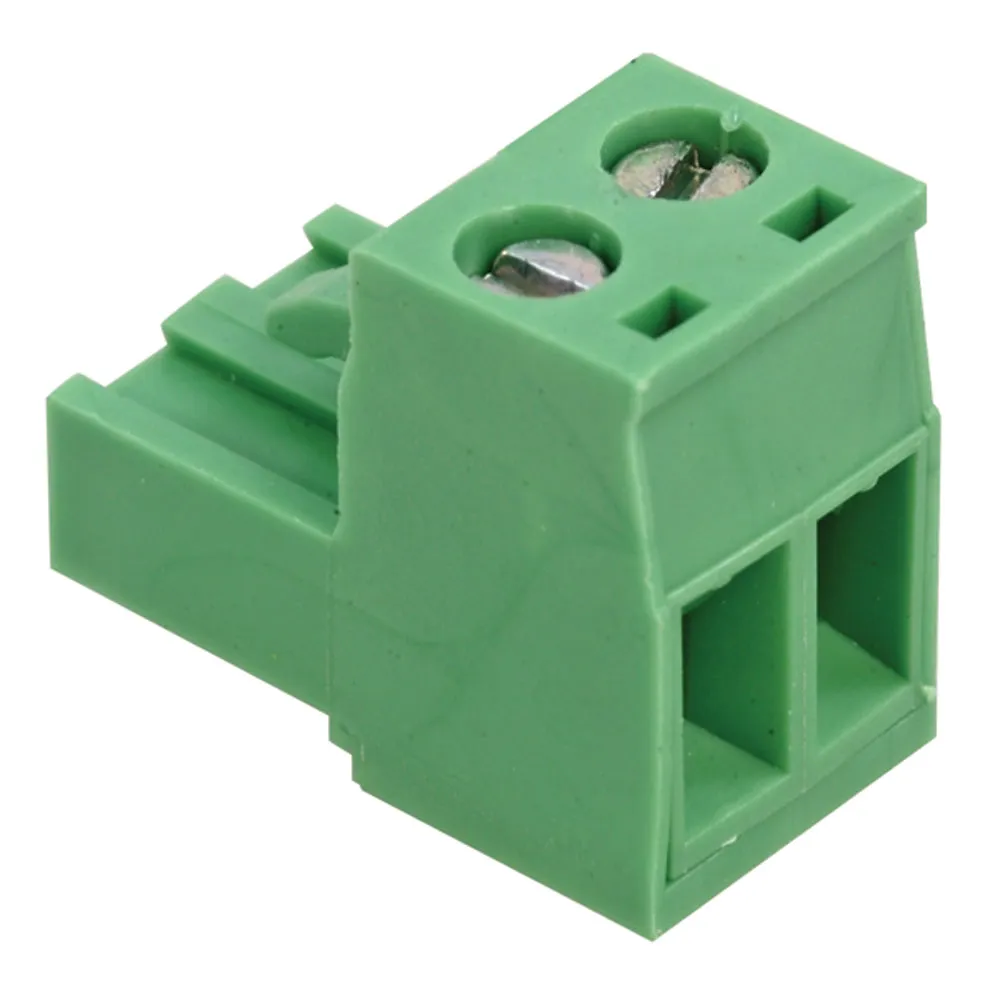

5.08mm Series Terminal Block
- Number of poles: 2
- Voltage rating: 300V / 250V / 300V / 300V
- Current rating: 20A / 15A / 20A / 20A
- Wire range: 12-24 / 14-22 AWG
- Torque: 5 LB-In / 5 kgf.cm / 0.5Nm
- Screw: M3
- Wire strip length: 7-8mm
- Withstanding voltage: 1.6KV / 1.5KV / 2.5KV / 2.5KV
- Operating temperature: -30°C to +105°C
- Safety approval: UL / CSA / VDE / TUV
Product Identification
Manufacturer Series:OSTTJ
Dimensions & Appearance
Depth:18.2 mm
Height:15.1 mm
Length:10.16 mm
Mounting:Cable Mount
Body Orientation:Right Angle
Operating conditions
Maximum Operating Temperature:105°C
Minimum Operating Temperature:-30°C
Features
Number of Positions:2
Number of Rows:1
Housing Color:Green
Contact Material:Brass/Steel
Bottom Termination:PC Pins
Top Termination:Screw, Leaf Spring, Wire Guard
Pitch:0.200 in., 5.08 mm
Gender:Female
Wire Gauge (AWG):12-24
Contact Plating:Tin/Zinc
Housing Material:Thermoplastic
Description:Header
Voltage Rating:300 VAC
Current Rating:20 A
