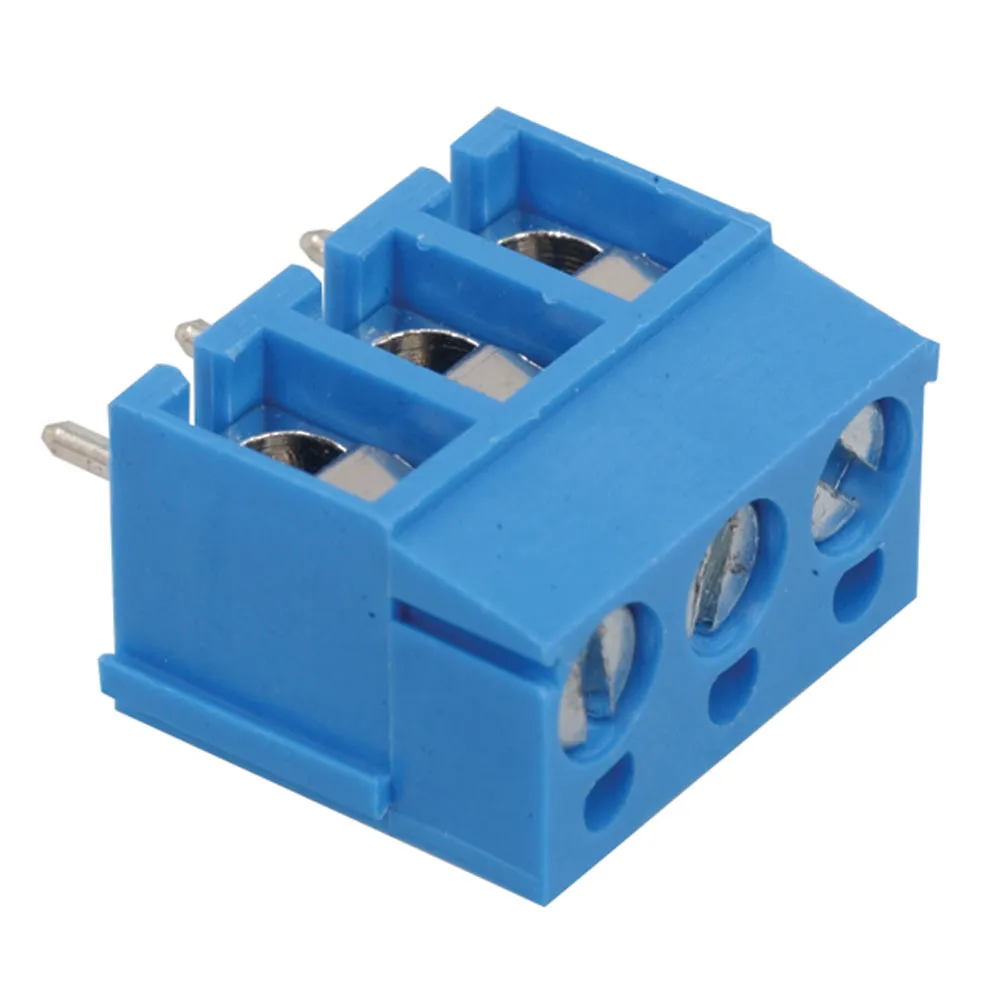

5.0mm Series, 1-Interlock Terminal Block

Features

  • Number of poles: 3
  • Voltage rating: 250VAC / 250VAC / 250VAC
  • Current rating: 16A
  • Wire range: 14-26 / 14-22 AWG
  • Torque: 2.6 Lb-In / 4 Kgf-cm / 0.6 Nm
  • Screw: M3
  • Wire strip length: 6-7mm
  • Withstanding voltage: 1.5KV / 1.5KV / 2KV
  • Operating temperature: -30°C to +105°C
  • Soldering temperature: 250°C ±10°C / 5 sec
  • Safety approval: UL / CSA / VDE

Product Identification

Manufacturer Series:OSTTA

Dimensions & Appearance

Body Orientation:Straight
Mounting:Through Hole
Depth:9 mm
Height:12.6 mm
Length:10.6 mm

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-30°C

Features

Number of Rows:1
Number of Positions:3
Housing Color:Blue
Contact Material:Brass/Steel
Bottom Termination:PC Pins
Top Termination:Screw, Leaf Spring, Wire Guard
Pitch:0.197 in., 5 mm
Gender:Female
Contact Plating:Tin/Zinc
Housing Material:Thermoplastic
Wire Gauge (AWG):14-26
Description:Header
Voltage Rating:250 VAC
Current Rating:16 A
,
