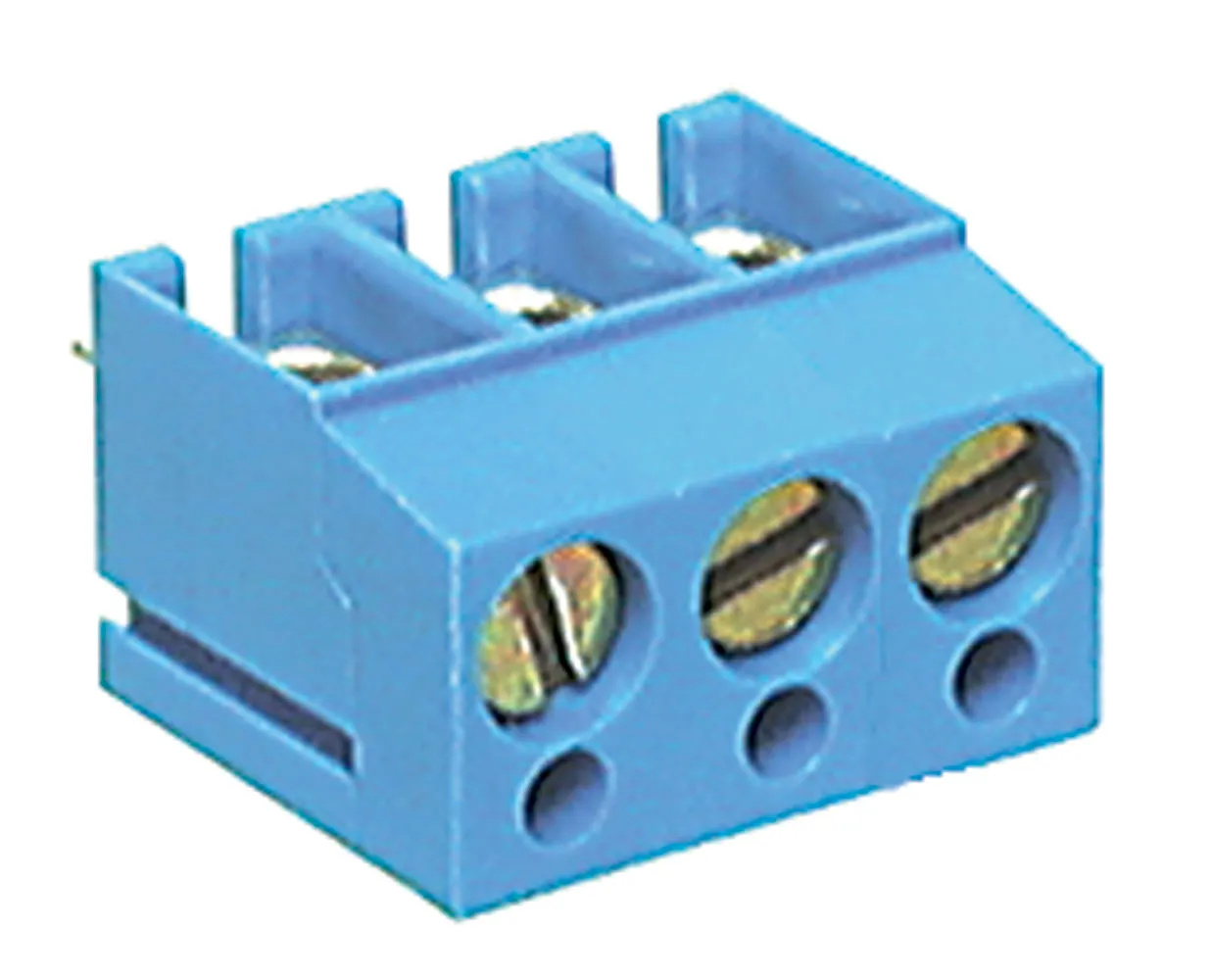

Terminal Block Header 3 Position Top Screw 5.08mm Solder Straight Thru-Hole 15A

Jameco Part #:

Manufacturer #:

Product Price:

$0.750

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$0.750	-	-
10+	$0.690	0.06	8%
50+	$0.590	0.16	21.33%
100+	$0.490	0.26	34.67%
500+	$0.390	0.36	48%

Terminal Block Header 3 Position Top Screw 5.08mm Solder Straight Thru-Hole

Manufacturer Series:OSTTA

Depth:9 mm

Height:13 mm

Length:15.94 mm

Mounting:Through Hole

Body Orientation:Straight

Maximum Operating Temperature:105°C

Minimum Operating Temperature:-30°C

Number of Rows:1

Number of Positions:3

Housing Color:Blue

Contact Material:Brass/Steel

Bottom Termination:PC Pins

Top Termination:Screw, Leaf Spring, Wire Guard

Pitch:0.200 in., 5.08 mm

Gender:Female

Contact Plating:Tin/Zinc

Housing Material:Thermoplastic

Wire Gauge (AWG):14-22

Description:Header

Voltage Rating:300 VAC

Current Rating:15 A
