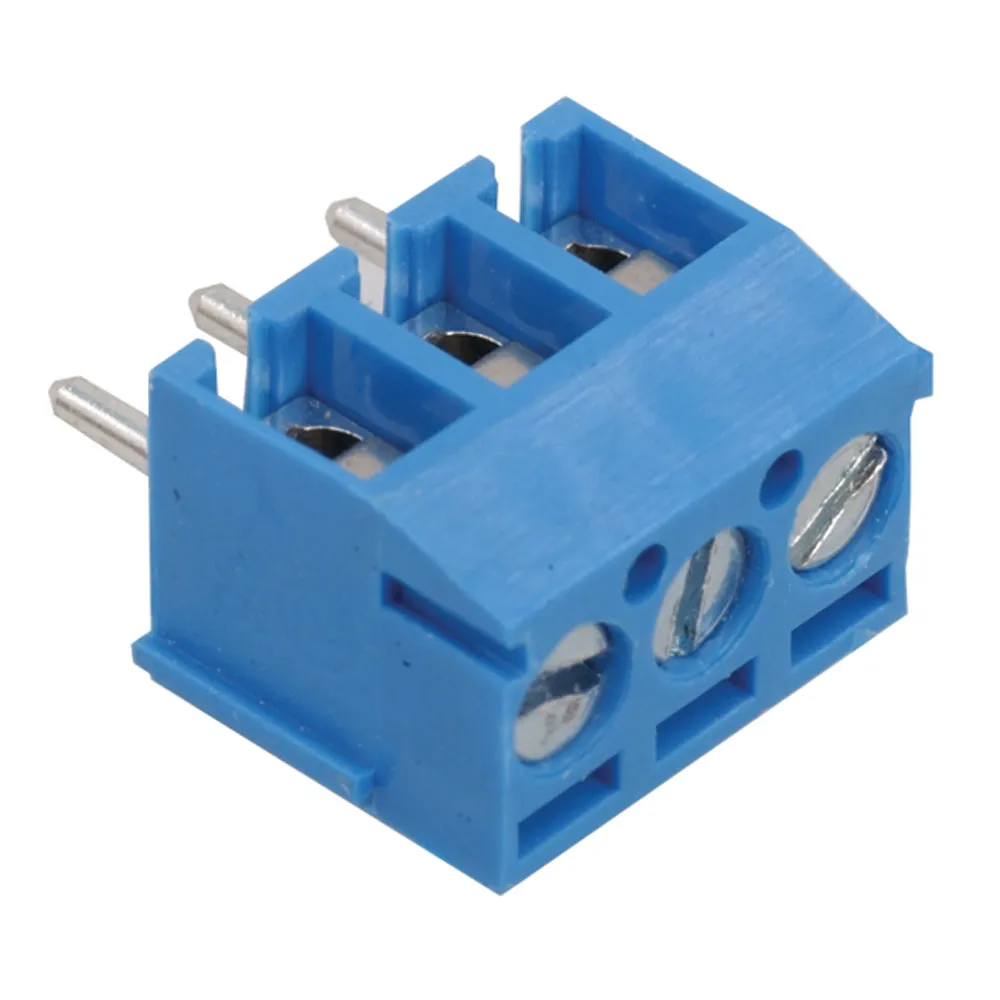

3.5mm Series Terminal Block
- Number of poles: 3
- Voltage rating: 125V / 125V
- Current rating: 10A / 10A
- Wire range: 16-26 / 16-26 AWG
- Torque: 1.7 Lb-In / 4 Kgf-cm
- Screw: M2
- Wire strip length: 5-6mm
- Withstanding voltage: 1.25KV / 1.25KV
- Operating temperature: -30°C to +105°C
- Soldering temperature: 250°C ±10°C / 5 sec
- Safety approval: UL / CSA
Product Identification
Manufacturer Series:OSTTE
Dimensions & Appearance
Depth:7 mm
Length:11.5 mm
Height:8.4 mm
Mounting:Through Hole
Body Orientation:Straight
Operating conditions
Maximum Operating Temperature:105°C
Minimum Operating Temperature:-30°C
Features
Number of Rows:1
Number of Positions:3
Housing Color:Blue
Pitch:0.138 in., 3.5 mm
Contact Material:Brass/Steel
Bottom Termination:PC Pins
Top Termination:Screw, Leaf Spring, Wire Guard
Gender:Female
Contact Plating:Tin/Zinc
Housing Material:Thermoplastic
Description:Header
Wire Gauge (AWG):16-26
Voltage Rating:125 VAC
Current Rating:10 A
