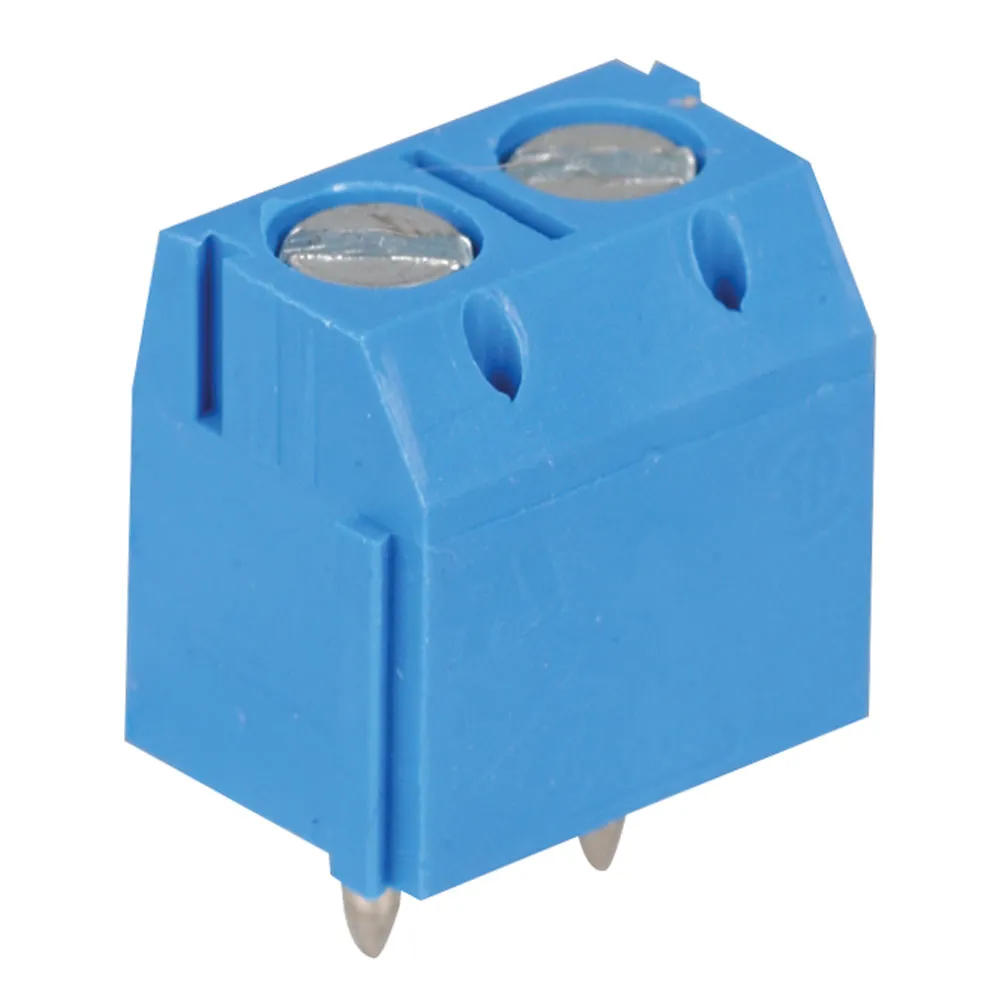

2-Position Terminal Block Connector

Features:

  • Category: Connectors, Interconnects
  • Family: Terminal Blocks - Wire to Board
  • Number of Levels: 1
  • Positions Per Level: 2
  • Pitch: 0.200" (5.08mm)
  • Mating Orientation: Horizontal with Board
  • Current: 15A
  • Voltage: 300V
  • Wire Gauge: 14-22 AWG
  • Mounting Type: Through-Hole
  • Termination: Screw
  • Features: Side Stacking (Interlocking)
  • Color: Blue
  • Dimension: 0.40'' L x 0.30'' W x 0.392'' H

Product Identification

Manufacturer Series:OSTTC

Dimensions & Appearance

Depth:7.62 mm
Height:10.0 mm
Length:10.16 mm
Mounting:Through Hole
Body Orientation:Right Angle

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-30°C

Features

Number of Positions:2
Number of Rows:1
Housing Color:Blue
Contact Material:Brass/Steel
Bottom Termination:PC Pins
Top Termination:Screw, Leaf Spring, Wire Guard
Pitch:0.200 in., 5.08 mm
Gender:Female
Contact Plating:Tin/Zinc
Housing Material:Thermoplastic
Wire Gauge (AWG):14-22
Description:Header
Voltage Rating:300 VAC
Current Rating:15 A
,
