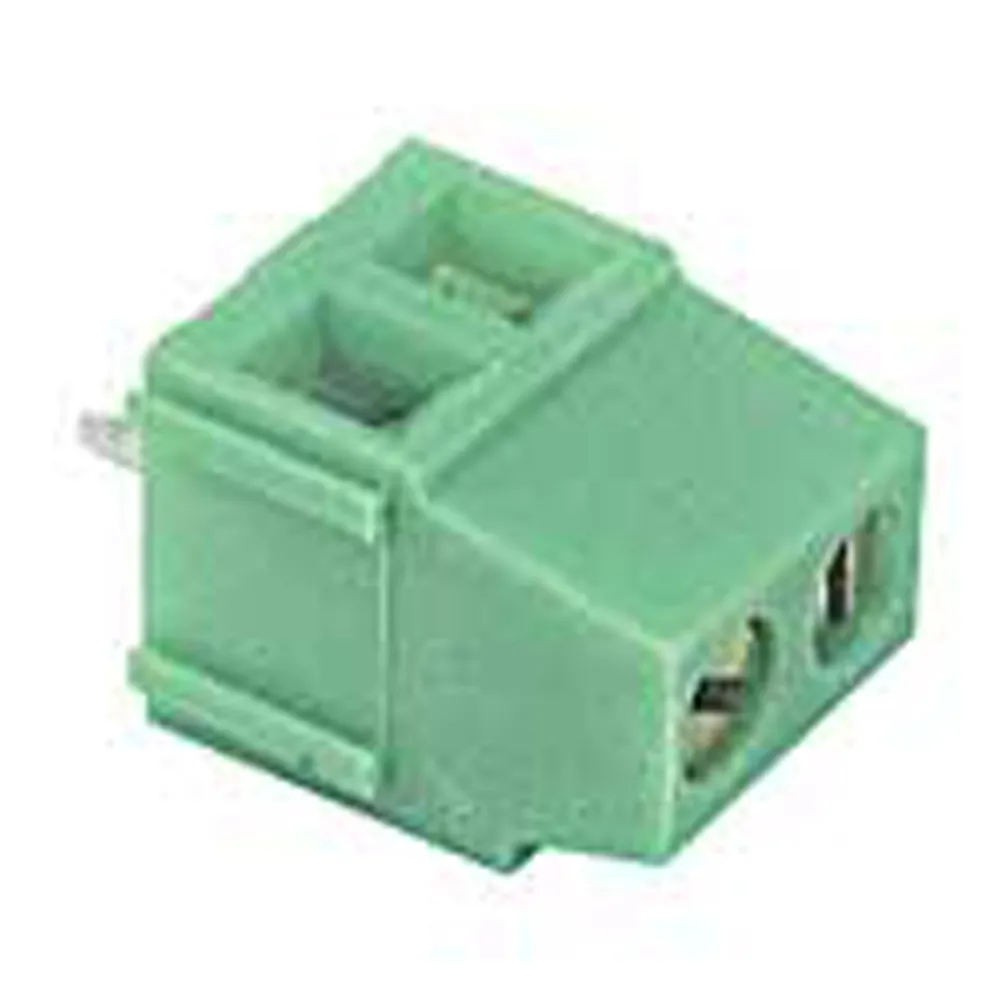

Terminal Block Header 2 Position Top Screw 5mm Solder Straight Thru-Hole 20A | Jameco.com

Terminal Block Header 2 Position Top Screw 5mm Solder Straight Thru-Hole 20A

Jameco Part #:

Manufacturer #:

Product Price:

$0.690

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$0.690	-	-
10+	$0.550	0.14	20.29%
50+	$0.490	0.20	28.99%
100+	$0.450	0.24	34.78%
500+	$0.390	0.30	43.48%

Terminal Block Header 2 Position 5mm Solder Straight Thru-Hole 20A

Manufacturer Series:EK

Body Orientation:Straight

Mounting:Through Hole

Depth:10 mm

Height:13.8 mm

Length:10 mm

Maximum Operating Temperature:115°C

Minimum Operating Temperature:-40°C

Number of Positions:2

Number of Rows:1

Housing Color:Green

Bottom Termination:PC Pins

Top Termination:Screw

Contact Material:Copper Alloy

Pitch:0.197 in., 5 mm

Gender:Female

Housing Material:Polyamide

Contact Plating:Tin

Wire Gauge (AWG):12-24

Description:Header

Voltage Rating:300 VAC

Current Rating:20 A
