Terminal Block Header 2 Position Top Screw 5mm Solder Straight Thru-Hole 15A | Jameco.com

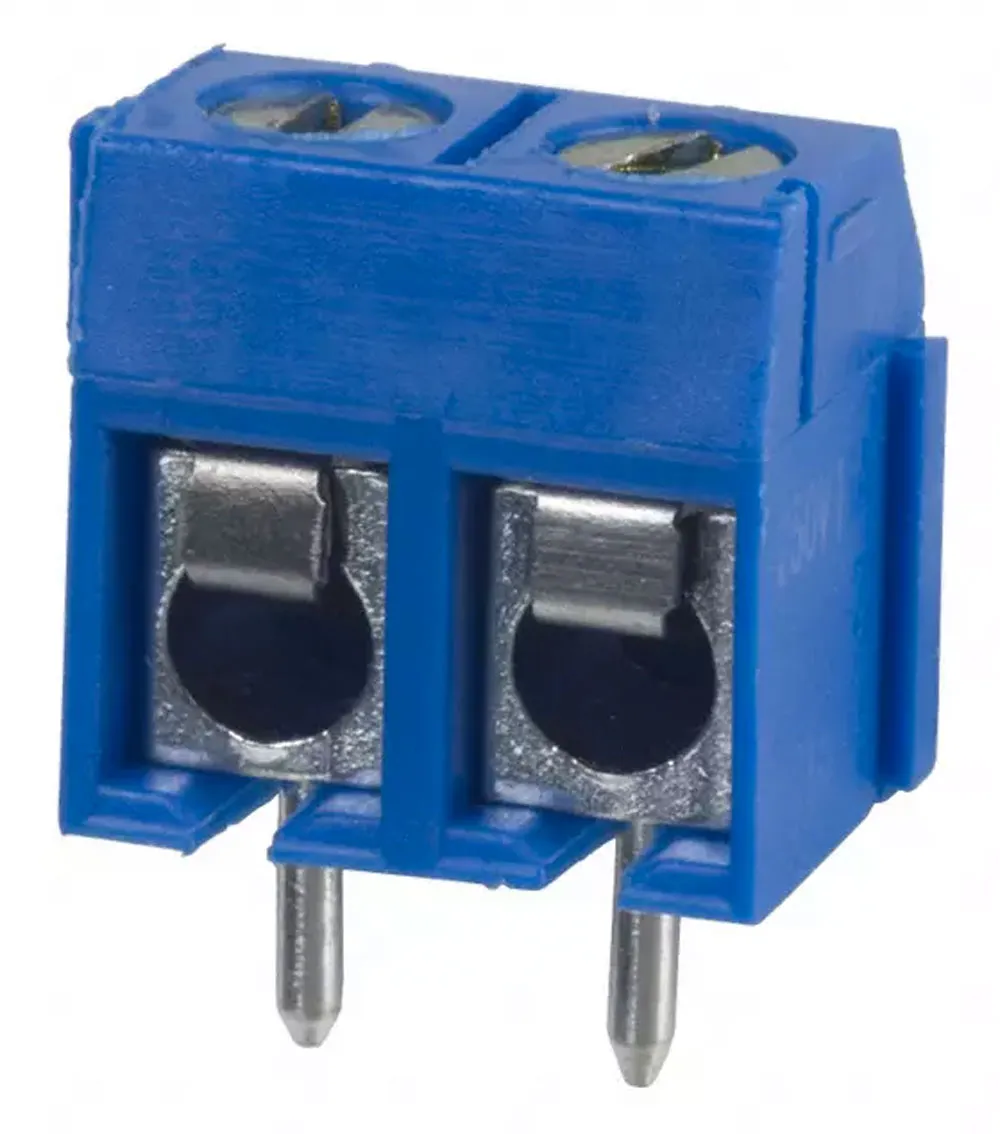

Terminal Block Header 2 Position Top Screw 5mm Solder Straight Thru-Hole 15A

Jameco Part #:

Manufacturer #:

Product Price:

$0.550

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$0.550	-	-
10+	$0.390	0.16	29.09%
50+	$0.350	0.20	36.36%
100+	$0.290	0.26	47.27%
500+	$0.250	0.30	54.55%

Terminal Block Header 2 Position Top Screw PC Pins

Manufacturer Series:OSTTC

Depth:7.5 mm

Length:11.2 mm

Height:9.9 mm

Mounting:Through Hole

Body Orientation:Straight

Maximum Operating Temperature:105°C

Minimum Operating Temperature:-30°C

Number of Positions:2

Number of Rows:1

Housing Color:Blue

Contact Material:Brass/Steel

Bottom Termination:PC Pins

Top Termination:Screw, Leaf Spring, Wire Guard

Pitch:0.197 in., 5 mm

Gender:Female

Housing Material:Thermoplastic

Contact Plating:Zinc

Wire Gauge (AWG):14-22

Description:Header

Voltage Rating:300 VAC

Current Rating:15 A
