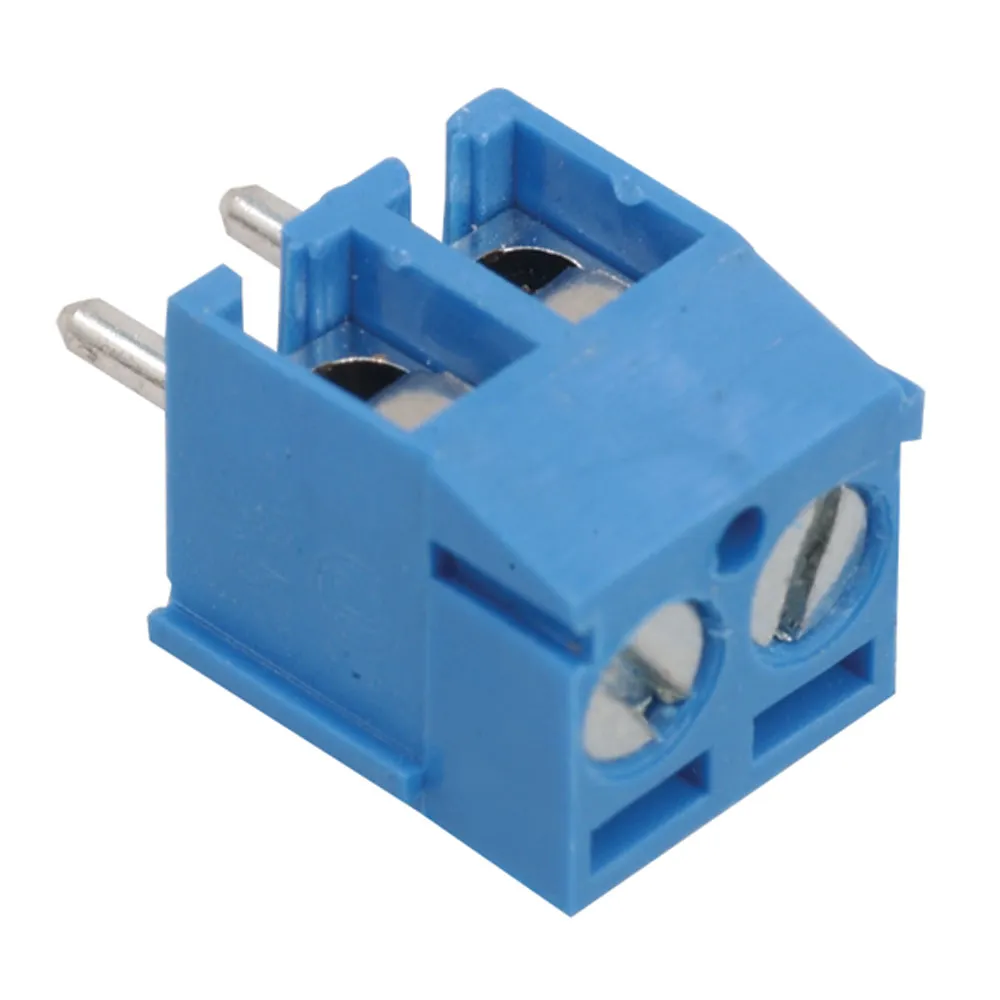

3.5mm Series Terminal Block

  • Number of poles: 2
  • Voltage rating: 125V / 125V
  • Current rating: 10A / 10A
  • Wire range: 16-26 / 16-26 AWG
  • Torque: 1.7 Lb-In / 4 Kgf-cm
  • Screw: M2
  • Wire strip length: 5-6mm
  • Withstanding voltage: 1.25KV / 1.25KV
  • Operating temperature: -30°C to +105°C
  • Soldering temperature: 250°C ±10°C / 5 sec
  • Safety approval: UL / CSA

    • Product Identification

    Manufacturer Series:OSTTE

    Dimensions & Appearance

    Body Orientation:Straight
    Mounting:Through Hole
    Depth:7 mm
    Height:8.4 mm
    Length:8 mm

    Operating conditions

    Maximum Operating Temperature:105°C
    Minimum Operating Temperature:-30°C

    Features

    Number of Positions:2
    Number of Rows:1
    Housing Color:Blue
    Pitch:0.138 in., 3.5 mm
    Contact Material:Brass/Steel
    Bottom Termination:PC Pins
    Top Termination:Screw, Leaf Spring, Wire Guard
    Gender:Female
    Contact Plating:Tin/Zinc
    Housing Material:Thermoplastic
    Description:Header
    Wire Gauge (AWG):16-26
    Voltage Rating:125 VAC
    Current Rating:10 A
    ,
