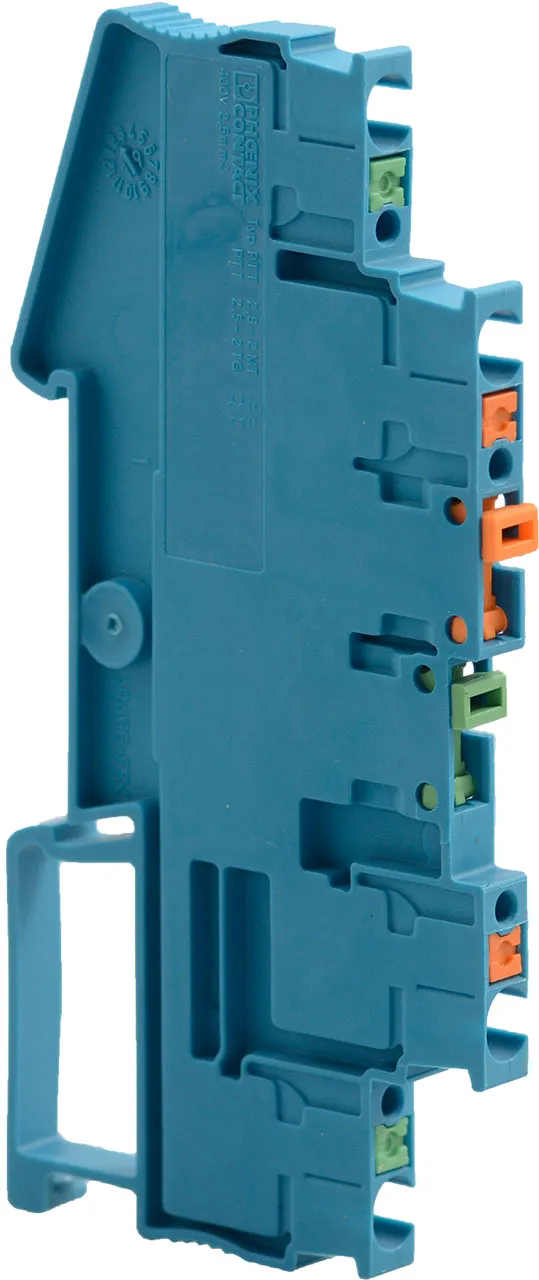

Terminal Block Connector 4 Position Disconnect Blue 12-26 AWG

Features

• Series: CLIPLINE PTT
• Type: Disconnect
• Disconnect Type: Switch, Knife
• Number of Positions: 4
• Number of Levels: 2
• Terminal - Width: 5.2 mm
• Termination Style: Push In
• Current - IEC: 16 A
• Voltage - IEC: 400 V
• Current - UL: 16 A
• Voltage - UL: 277 V
• Wire Gauge or Range - AWG: 12 - 26 AWG
• Wire Gauge or Range - mm²: 0.14 to 4 mm²
• Color: Blue
• Material - Insulation: Polyamide (PA), Nylon
• Material Flammability Rating: UL94 V-0
• Stripping Length: 8 mm
