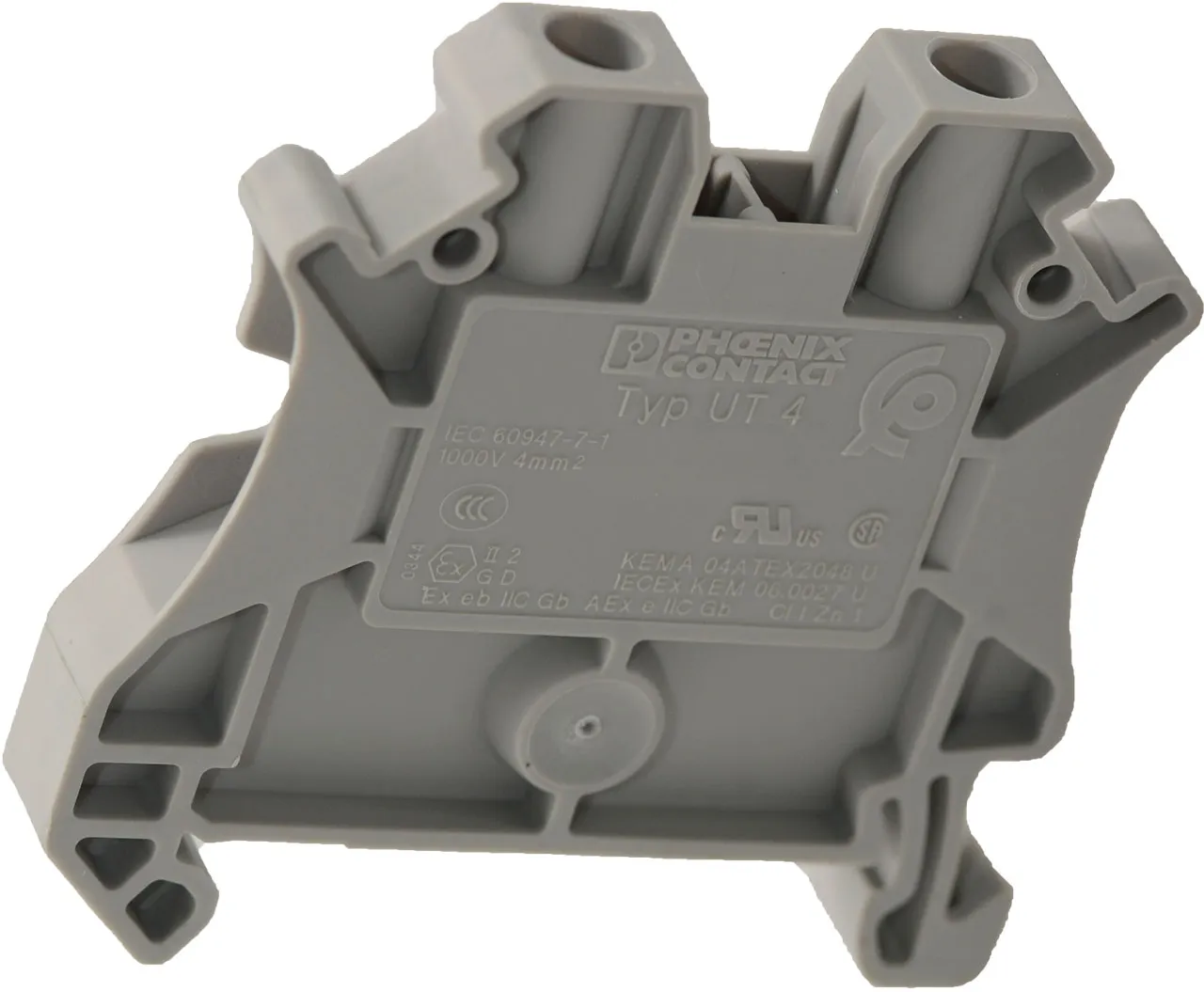

Terminal Block Connector 2 Position Feed Through Gray 10-26 AWG

Features

• Series: CLIPLINE UT
• Type: Feed Through
• Number of Positions: 2
• Number of Levels: 1
• Terminal - Width: 6.2 mm
• Termination Style: Screw
• Current - IEC: 32 A
• Voltage - IEC: 1000 V
• Current - UL: 30 A
• Voltage - UL: 600 V
• Wire Gauge or Range - AWG: 10 - 26 AWG
• Wire Gauge or Range - mm²: 0.14 to 6 mm²
• Color: Gray
• Material - Insulation: Polyamide (PA), Nylon
• Material Flammability Rating: UL94 V-0
• Stripping Length: 9 mm
