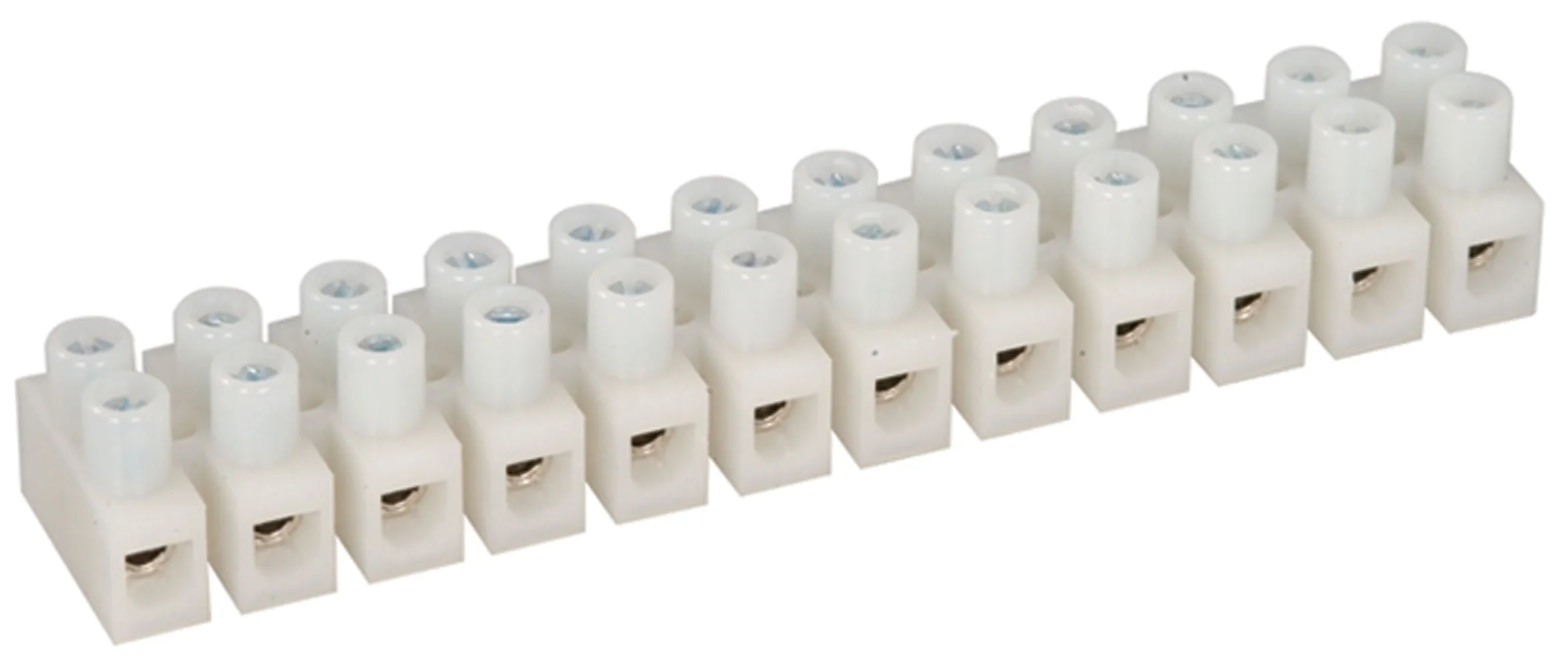

24-Pole H-Type Terminal Block
Features:
- 1.2mm raised base
- 2 rows/12 poles per row
- 24 positions total
- Screw: M2.6x5
- Length: 3.8 inches
- Width: 0.7 inches
- Height: 0.6 inches
Product Identification
Product Type:Dual Row Eurostyle Barrier Strip
Manufacturer Series:PA7
Dimensions & Appearance
Body Orientation:Straight
Mounting:Chassis, Panel
Depth:17 mm
Length:96.2 mm
Operating conditions
Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C
Features
Number of Rows:2
Top Termination:Screw, M2.6
Contact Material:Brass
Bottom Termination:None
Number of Positions:12
Housing Color:Natural
Pitch:0.323 in., 8.2 mm
Contact Plating:Tin
Wire Gauge (AWG):12-22
Housing Material:Thermoplastic
Voltage Rating:450 VAC
Current Rating:17.5 A
