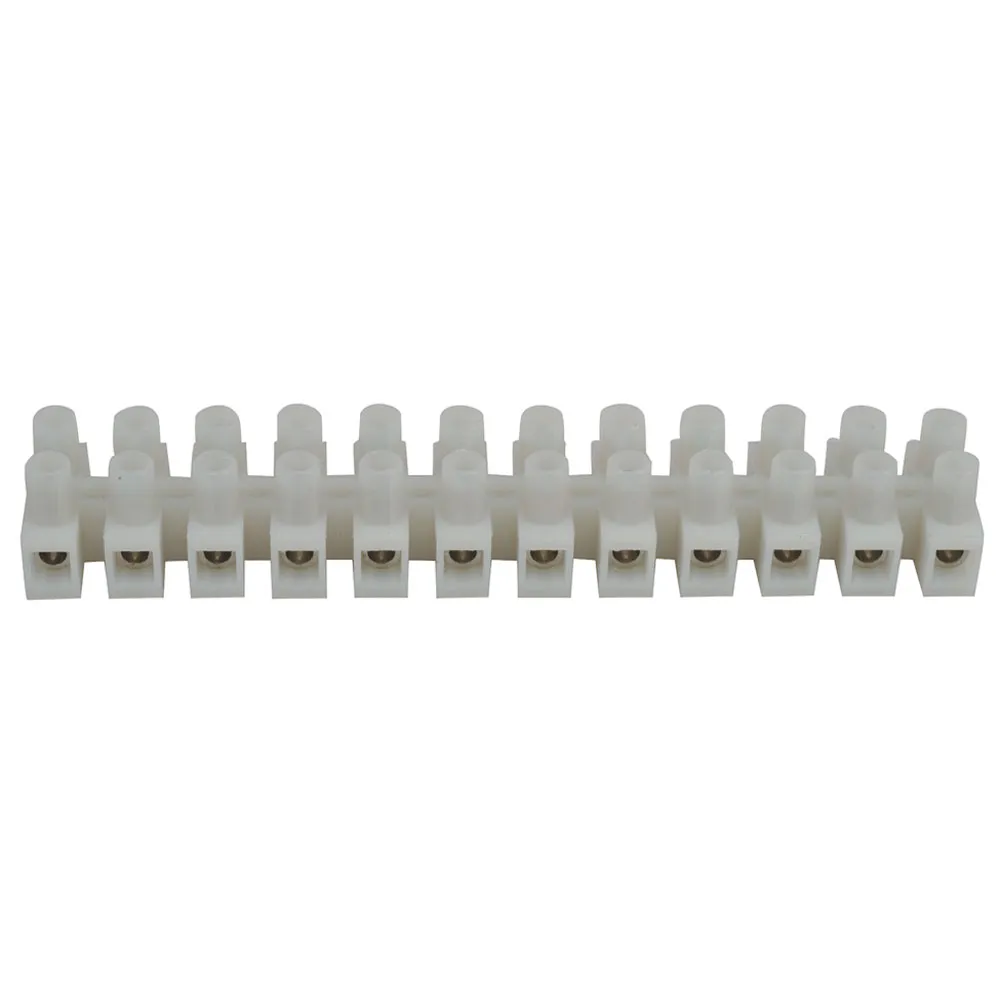

Terminal Block 12-Position 10mm Euro Strip UL 30A-450Volt M3 Screw

Specifications

  • Number of poles: 12
  • Terminal Insert: Brass metal alloy, nickel plated

    • Product Identification

    Product Type:Dual Row Eurostyle Barrier Strip
    Manufacturer Series:PA9

    Dimensions & Appearance

    Body Orientation:Straight
    Mounting:Chassis, Panel
    Depth:20.2 mm
    Length:116.8 mm

    Operating conditions

    Maximum Operating Temperature:105°C
    Minimum Operating Temperature:-40°C

    Features

    Number of Rows:2
    Top Termination:Screw, M3
    Contact Material:Brass
    Bottom Termination:None
    Number of Positions:12
    Housing Color:Natural
    Pitch:0.394 in., 10 mm
    Contact Plating:Tin
    Wire Gauge (AWG):12-22
    Housing Material:Thermoplastic
    Voltage Rating:450 VAC
    Current Rating:24 A
    ,
