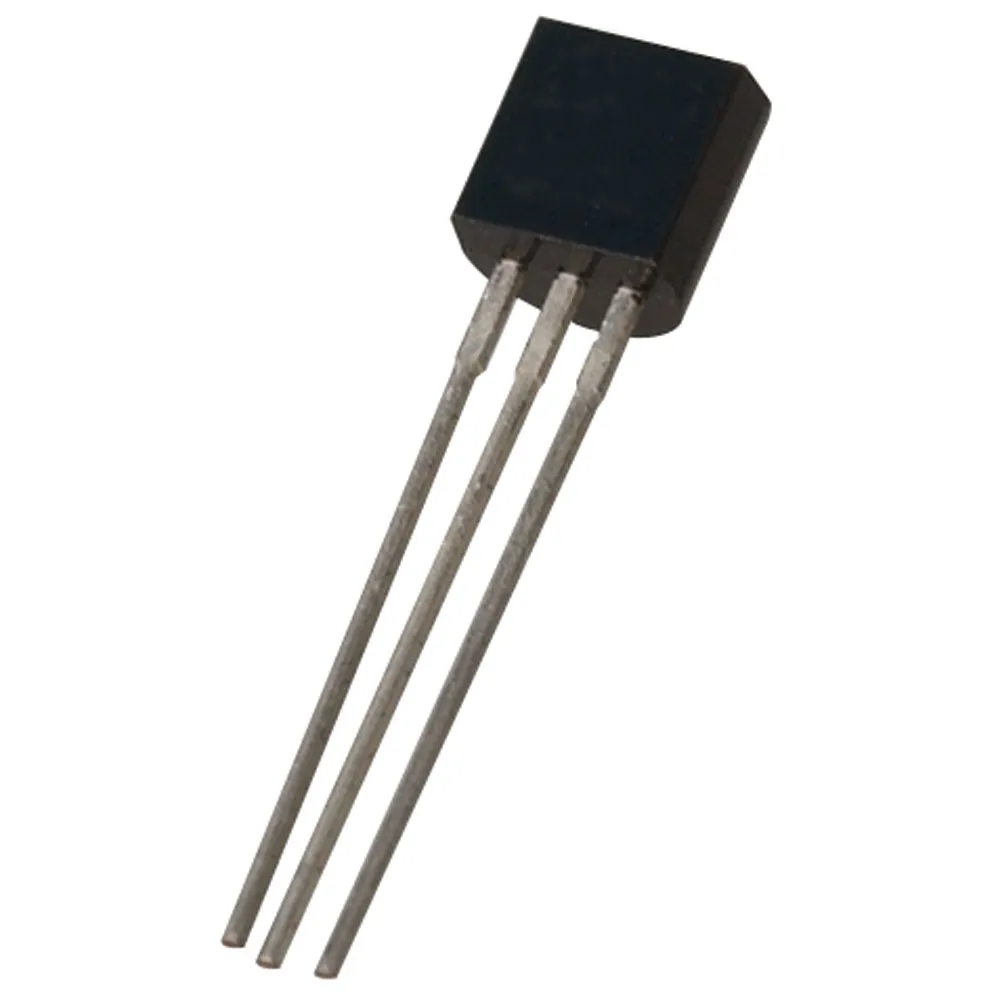

Temperature Sensor
Specifications
- Low Voltage Operation (2.7 V to 5.5 V)
- Calibrated Directly in °C 10 mV/°C Scale Factor
- ±2°C Accuracy over Temperature (Typ)
- ±0.5°C Linearity (Typ)
- Stable with Large Capacitive Loads
- Specified -40°C to +125°C, Operation to +150°C
- Less than 50 µA Quiescent Current
- Shutdown Current 0.5 µA Max
- Low Self-Heating
Product Identification
Product Type:Temperature Sensor
Family:TMP36
Dimensions & Appearance
Width:4.19mm(Max)
Height:5.33mm(Max)
Product Length:5.21mm(Max)
Mounting:Through Hole
Operating conditions
Maximum Operating Temperature:125°C
Minimum Operating Temperature:-40°C
Packaging
Package:TO-92 3
Input
Minimum Input Voltage:2.7V
Maximum Input Voltage:5.5V
Input Voltage:3.3V, 5V
Output
Output Type:Analog
Features
Sensor Gain:10mV/°C
Interface Type:2-Wire
Pins:3
Accuracy:±1°C
Function:Temp Sensor
