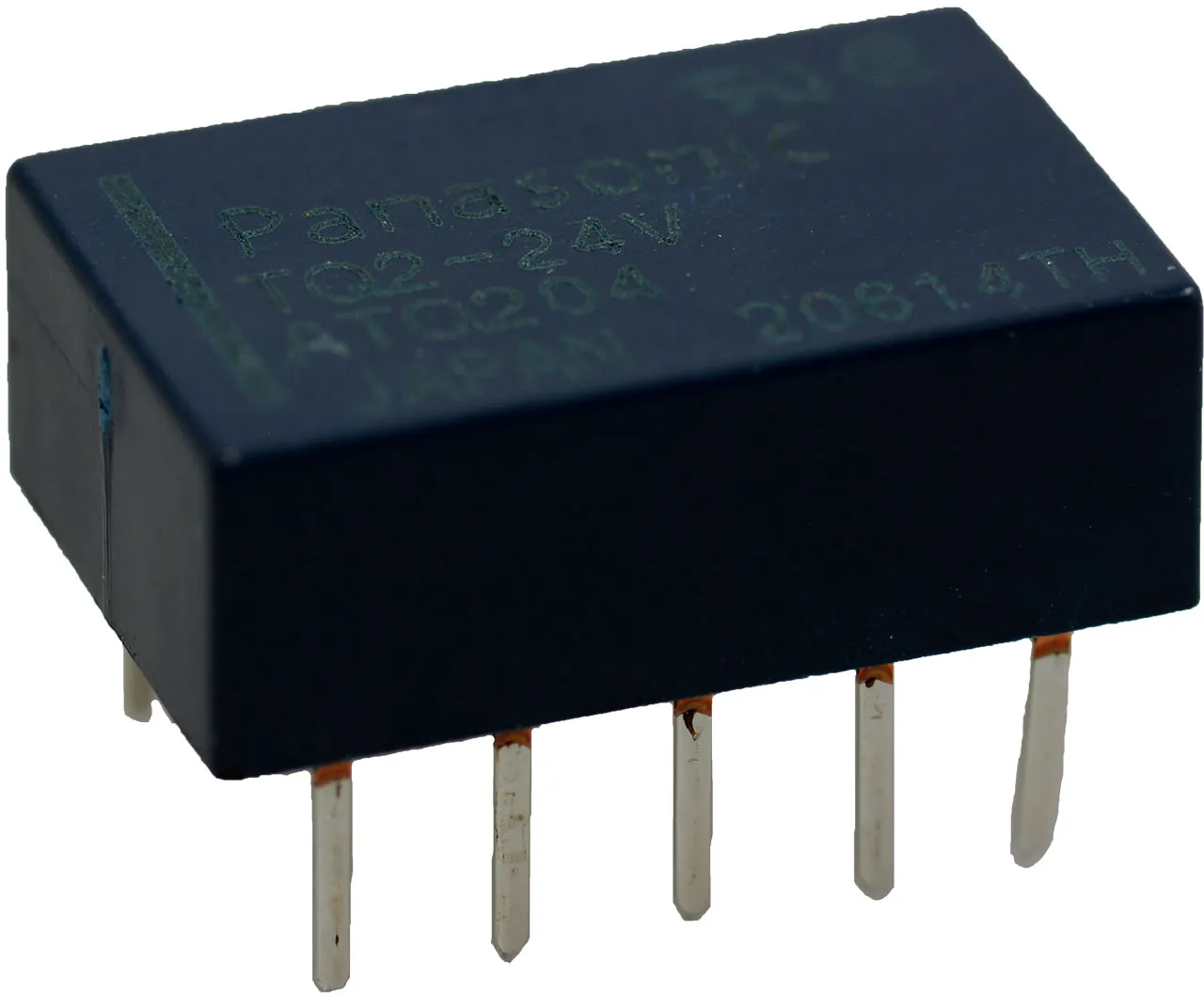

Telecom Relay DPDT (2 Form C) 24VDC Coil 1A Through Hole

Specifications

  • Series: TQ
  • Mounting Type: Through Hole
  • Coil Voltage: 24 VDC
  • Contact Form: DPDT (2 Form C)
  • Contact Rating (Current): 1 A
  • Switching Voltage: 125 VAC, 110 VDC - Max
  • Coil Current: 8.3 mA
  • Coil Type: Non-Latching
  • Termination Style: PC-Pin
  • Seal Rating: n/a
  • Coil Insulation: n/a
  • Must Operate Voltage: 18 VDC
  • Must Release Voltage: 2.4 VDC
  • Operate Time: 3 ms
  • Release Time: 3 ms
  • Operating Temperature: -40°C to 70°C
  • Contact Material: Silver (Ag), Gold (Au)
  • Relay Type: Telecom
  • Coil Resistance: 2880 Ohms

Dimensions & Appearance

Height:0.20 in.
Width:0.35 in.
Length:0.55 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Features

Minimum Dropout Voltage:2.4 VDC
Relay Construction:Non-Latching
Pins:10
Operate Time:3 ms
Contact Current:1 A
Coil Voltage:24 VDC
Maximum Pick-Up Voltage:18 VDC
Contact Voltage:125 VAC, 110 VDC
Contact Form:DPDT
Coil Resistance:2880 Ohm
,
