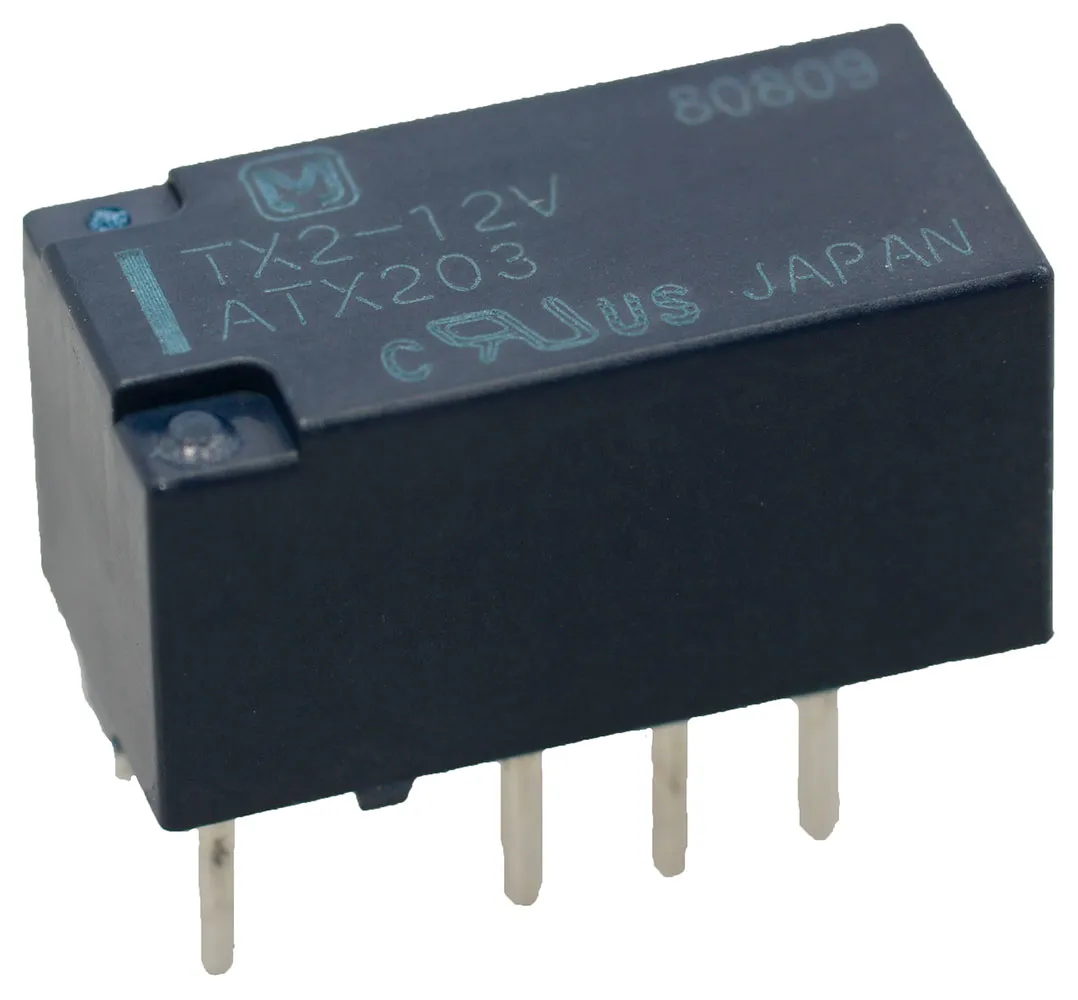

Telecom Relay DPDT (2 Form C) 12VDC 2A Through Hole

Specifications

  • Series: TX
  • Relay Type: Telecom
  • Coil Voltage: 12 VDC
  • Contact Form: DPDT (2 Form C)
  • Switching Voltage: 220 VDC - Max
  • Coil Type: Non-Latching
  • Contact Rating: 2 A
  • Coil Current: 11.7 mA
  • Operate Time: 4 ms
  • Release Time: 4 ms
  • Coil Resistance: 1.03 KOhm
  • Termination Style: PC Pin
  • Seal Rating: Fully Sealed
  • Mounting Type: Through Hole
  • Must Operate Voltage: 9 VDC
  • Must Release Voltage: 1.2 VDC
  • Operating Temperature: -40°C to 85°C
  • Contact Material: Silver (Ag), Gold (Au)

Product Identification

Family:TX

Dimensions & Appearance

Length:15 mm
Height:8.2 mm
Width:7.4 mm

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Features

Minimum Dropout Voltage:1.2 VDC
Pins:8
Coil Voltage:12 VDC
Relay Construction:Non-Latching
Maximum Pick-Up Voltage:9 VDC
Operate Time:4 ms
Contact Current:2 A
Contact Voltage:220 VDC
Contact Form:DPDT
Coil Resistance:1030 Ohm
,
