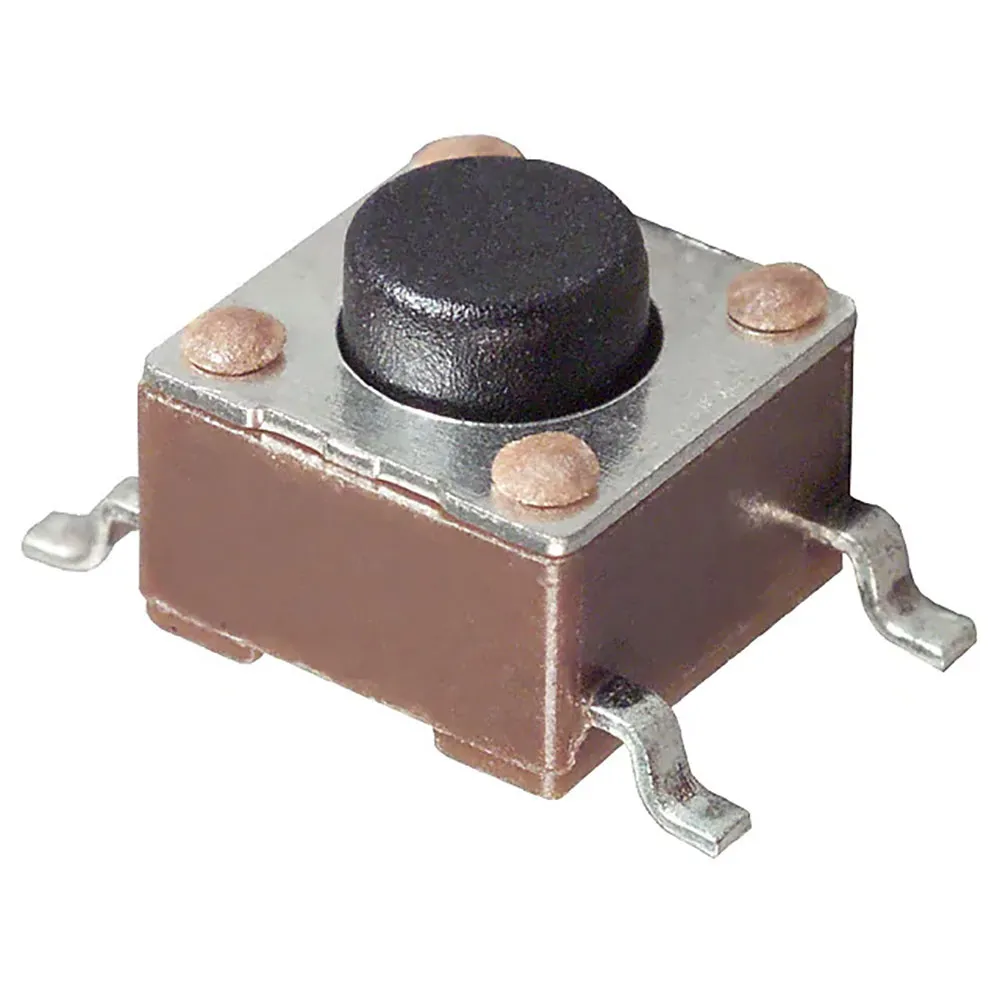

Tactile Switch SPST-NO Top Actuated Surface Mount 24 VDC 50mA
Features
- Circuit: SPST-NO
- Switch Function: OFF-MOM / OFF-(ON) / OFF-MOMENTARY ON
- Contact Rating @ Voltage: 0.05 A @ 24 VDC
- Actuator Type: Standard
- Mounting Type: Surface Mount
- Actuator Height off PCB, Vertical: 5 mm
- Actuator Orientation: Top Actuated
- Termination Style: Gull Wing
- Outline: 6 mm x 6 mm
- Illumination: Non-Illuminated
- Operating Force: 160 gf
- Operating Temperature: -35°C to 85°C
- Actuator Material: Polyphenylene Sulfide (PPS)
- Switch Travel: 0.25 mm
- Mechanical Life: 100,000 Cycles
- Base Number: FSM4
Dimensions & Appearance
Depth:0.18 in.
Mounting Style:Surface Mount
Length:0.24 in.
Width:0.24 in.
Body Color:Black
Features
Pins:4
Color - Actuator/Cap:Black
Switch Function:OFF-(ON)
Illumination Type:N/A
Lead Pitch:0.2
Termination Style:Gull Wing
Contact Form:SPST-NO
Actuator Type:Round Button
Current Rating:50 mA @ 24 VDC
