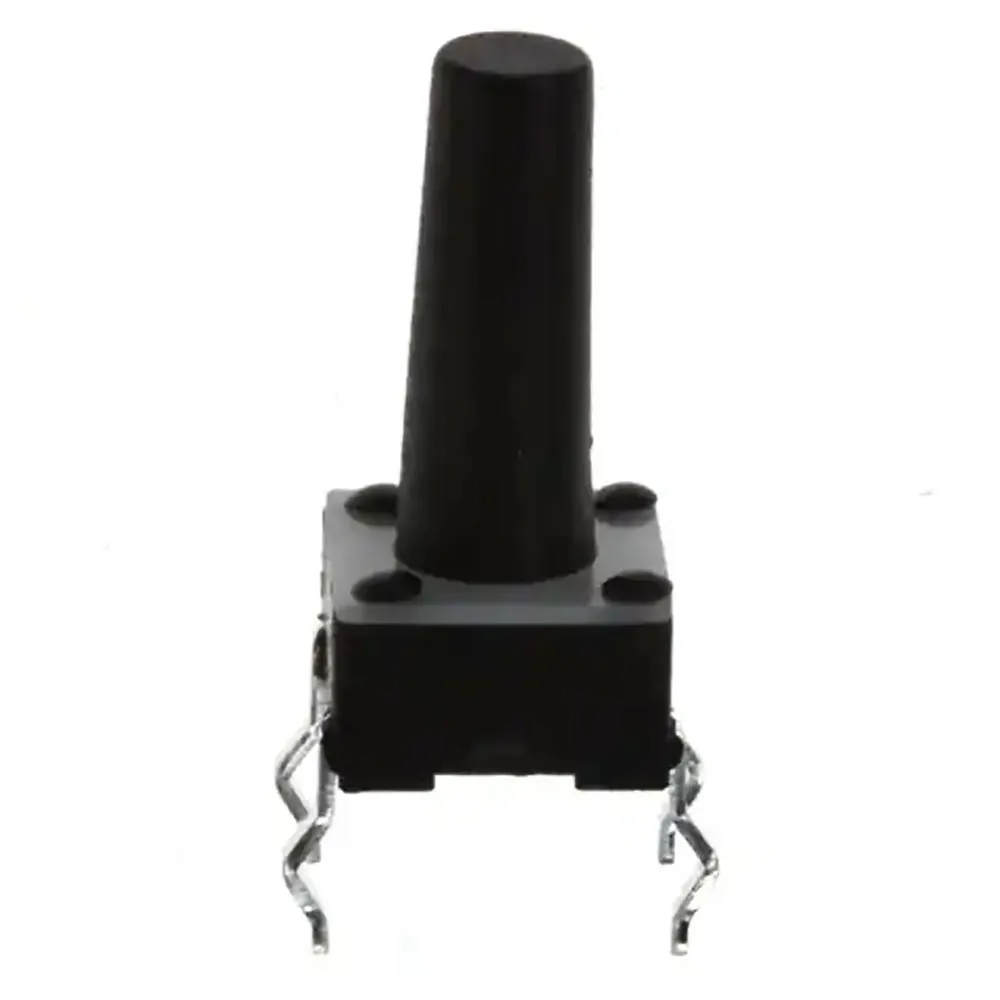

Tactile Switch SPST-NO 13mm Extended Top Actuated Through Hole 24 VDC 50mA

Features

  • Circuit: SPST-NO
  • Switch Function: OFF-MOM / OFF-(ON) / OFF-MOMENTARY ON
  • Contact Rating @ Voltage: 0.05 A @ 24 VDC
  • Actuator Type: Standard
  • Mounting Type: Through Hole
  • Actuator Height off PCB, Vertical: 13 mm
  • Actuator Orientation: Top Actuated
  • Termination Style: PC Pin
  • Outline: 6 mm x 6 mm
  • Illumination: Non-Illuminated
  • Operating Force: 160 gf
  • Operating Temperature: -35°C to 85°C
  • Actuator Material: Polyamide (PA66), Nylon 6/6
  • Switch Travel: 0.25 mm
  • Mechanical Life: 100,000 Cycles
  • Base Number: 2-1825910

Dimensions & Appearance

Depth:0.14 in.
Mounting Style:Through Hole
Length:0.24 in.
Width:0.24 in.
Body Color:Black

Features

Pins:4
Color - Actuator/Cap:Black
Switch Function:OFF-(ON)
Illumination Type:N/A
Lead Pitch:6.5mm x 4.5mm
Termination Style:PC Pins
Actuator Length:0.39 in.
Contact Form:SPST-NO
Actuator Type:Round Button, Extended
Current Rating:50 mA @ 24 VDC
,
