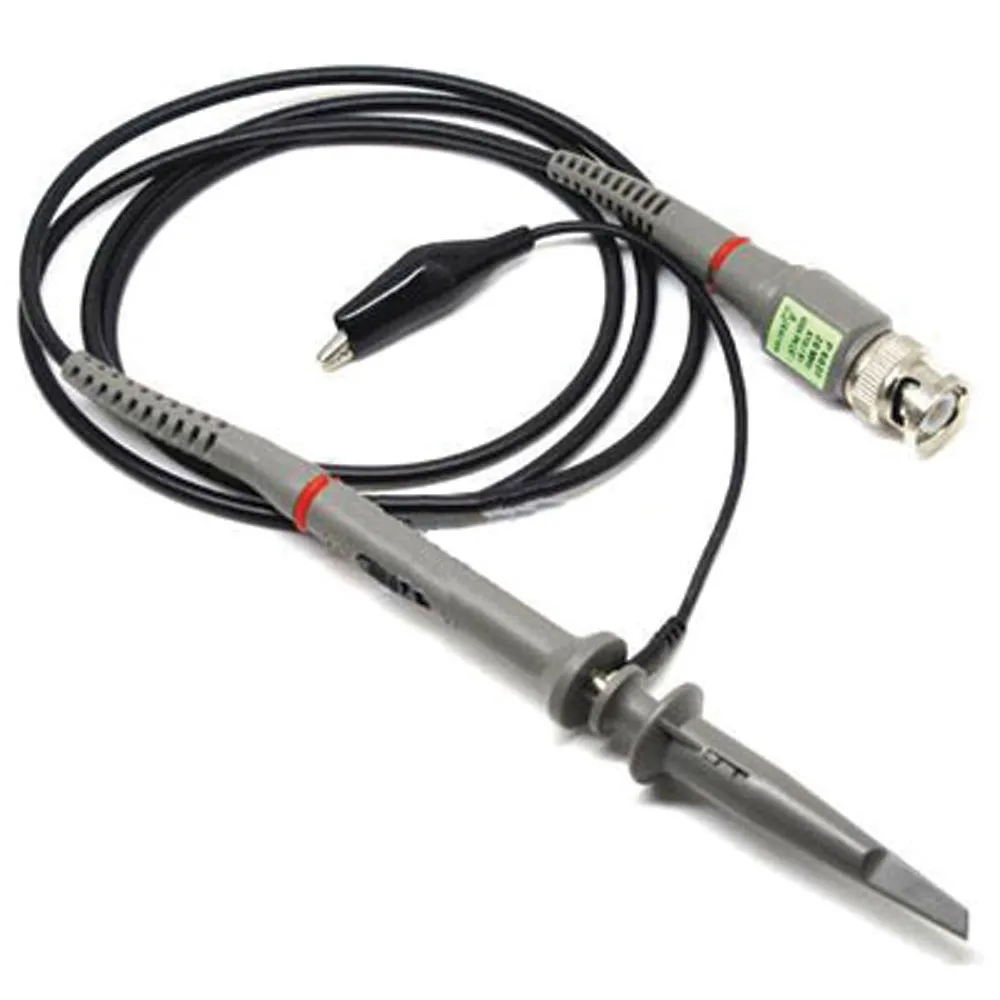

T5300 300MHz Oscilloscope Passive Probe

Features:

  • Attenuation: X1, X10
  • Input resistance: X1: 1MΩ; X10: 10MΩ
  • Input capacitance: X1: 85pF~115pF; X10: 18.5pF~22.5pF
  • Compensation range: 15pF~35pF
  • System bandwidth: DC-10MHz, DC-300MHz
  • Input voltage: X1: <200VDC + Peak AC; X10: <600VDC + Peak AC
  • Cable length: 4 feet

    • Product Identification

    Product Type:Test Probe

    Dimensions & Appearance

    Length:48 in.

    Features

    Attenuation Ratio:10:1, 1:1
    Resistance:1M Ohm, 10M Ohm
    Bandwidth:300 MHz
    Capacitance:85-115 pF(1X), 18.5-22.5 pF(10X)
    Voltage Rating:600 V
    ,
