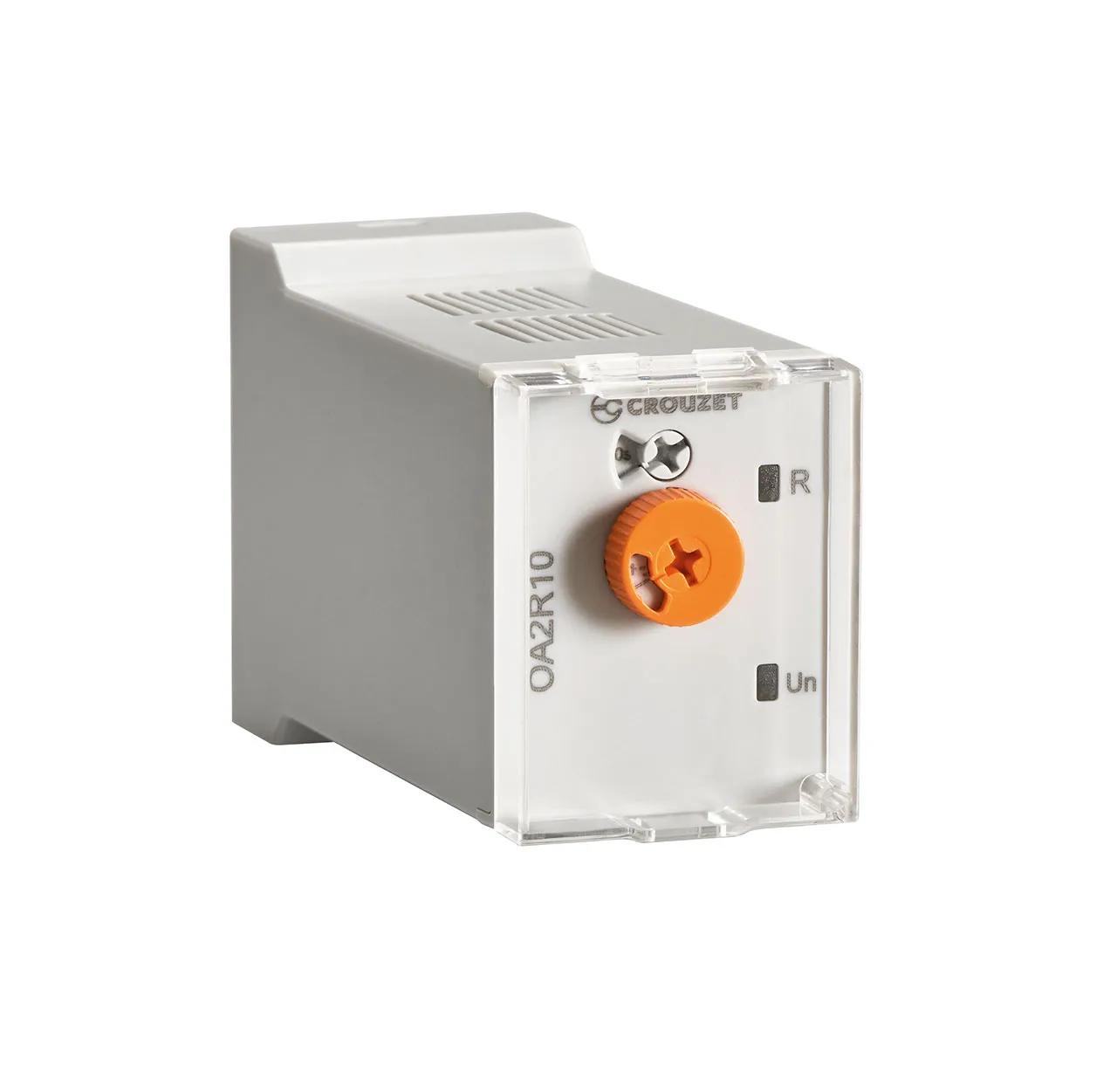

Syr-Line Plug-In Timer Oa2R 8 Pins 12-240 VAC/DC 2PCB Straight Pins 0A 0.5 to 10 Days
Features
- Product Type: Mechanical Relay
- Input Voltage: 12 ~ 240VAC/DC
- Current Rating: 10 A @ 250 VAC
- Additional Feature: Hand Dial Adjustment
- Function: On-Delay
- Termination Style: Plug In, 8 Pin (Octal)
- Output Type: DPDT (2 Form C)
- Mounting Type: Socketable
- Maximum Delay Time: 0.5 Sec ~ 240 Hrs
- Manufacturer Series: OA2R10
- Harmonized Code: 8536490099
- ECCN: EAR99
Overview
Syr-Line Plug-In Timer Oa2R 8 Pins 12-240 VAC/DC 2PCB Straight Pins 0A 0.5 to 10 Days.
Media
- Crouzet Timers Functions Diagrams (PDF) ,
- 3D drawing (zip)
Product presentation ,
Product Identification
Additional Feature:Hand Dial Adjustment
Product Type:Mechanical Relay
Manufacturer Series:OA2R10
Dimensions & Appearance
Mounting Type:Socketable
Input
Input Voltage:12 ~ 240VAC/DC
Output
Output Type:DPDT (2 Form C)
Features
Maximum Delay Time:0.5 Sec ~ 240 Hrs
Function:On-Delay
Termination Style:Plug In, 8 Pin (Octal)
Current Rating:10 A @ 250 VAC
