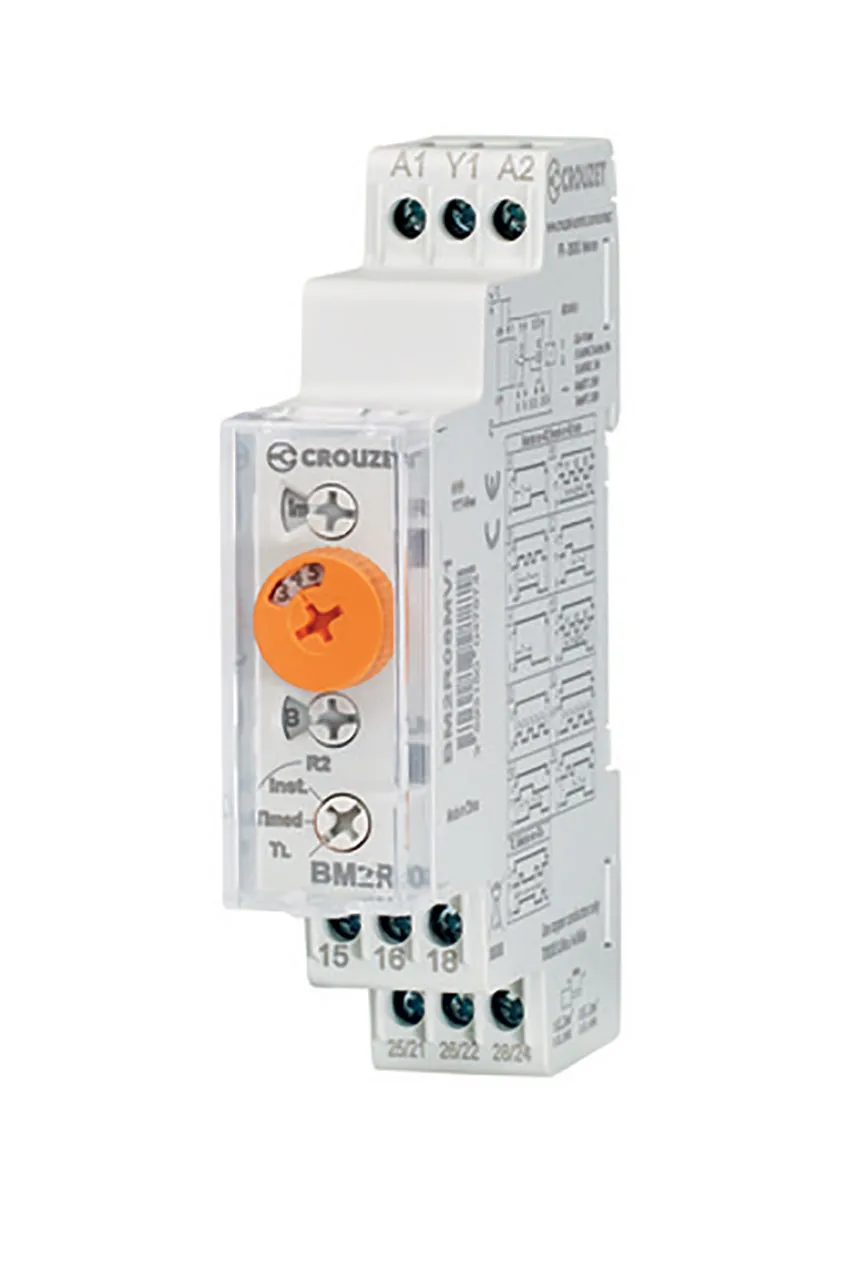

Syr-Line Analog Double Output Timer Bm2R DIN Rail 17.5mm 12-240 VAC/DC 2X8A

Features

  • Product Type: Mechanical Relay
  • Input Voltage: 12 ~ 240VAC/DC
  • Current Rating: 8 A @ 250 VAC
  • Additional Feature: Hand Dial Adjustment
  • Function: Programmable (Multi-Function)
  • Termination Style: Screw Terminal
  • Output Type: DPDT (2 Form C)
  • Mounting Type: DIN Rail
  • Maximum Delay Time: 0.5 Sec ~ 240 Hrs
  • Manufacturer Series: BM2R
  • Harmonized Code: 8536490099
  • ECCN: EAR99

Overview

Syr-Line Analog Double Output Timer Bm2R DIN Rail 17.5mm 12-240 VAC/DC 2X8A.

Media

Product Identification

Additional Feature:Hand Dial Adjustment
Product Type:Mechanical Relay
Manufacturer Series:BM2R

Dimensions & Appearance

Mounting Type:DIN Rail

Input

Input Voltage:12 ~ 240VAC/DC

Output

Output Type:DPDT (2 Form C)

Features

Maximum Delay Time:0.5 Sec ~ 240 Hrs
Function:Programmable (Multi-Function)
Termination Style:Screw Terminal
Current Rating:8 A @ 250 VAC
,
